Univex 9512 - Figure 6 Sharpener Assembly

9512
SHARPENER ASSEMBLY
Figure
6

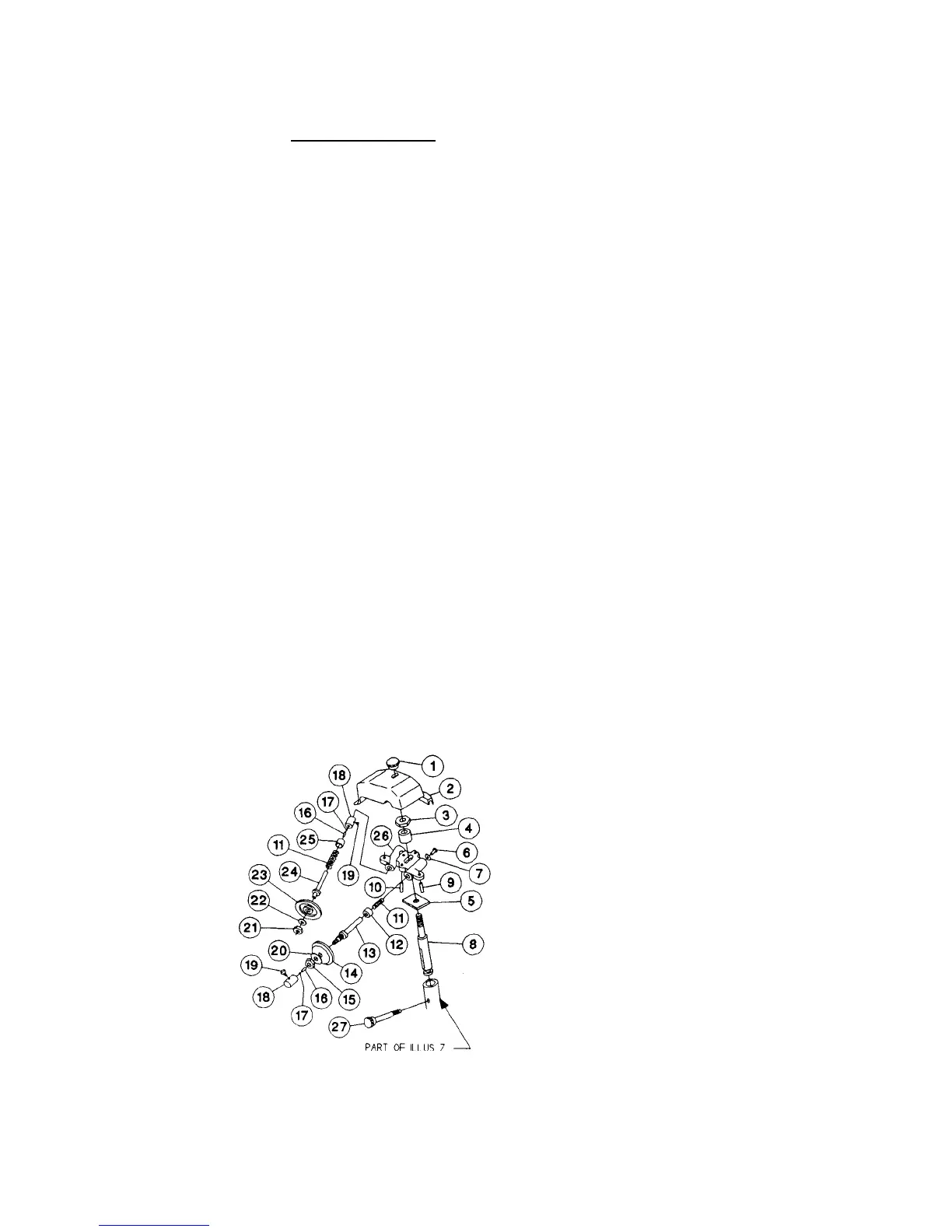

ILLUS NO. PART NO. DESCRIPTION QTY.
7510151 SHARPENER ASSEMBLY WITH CONER
1 6509153 KNOB, COVER
1
2 6509151 COVER, SHARPENER
1
3 6509150 NUT, COVER SPACER
1
4 6509149 SPACER. COVER
1
5 6509125 WASHER, SET PIN
1
6 6509137 SCREW
1
7 6509138 WASHER
1
8 7510120 SET PIN, SHARPENER
1
9 8512728 PIN, SHARPENER CASTING 2
10 6509147 BOLT, SHARPENER GUIDE 2
11 6509127 SPRING 2
12 6509128 BUSHING 1
13 6509129 STUD, HONING STONE 1
14 6509130 STONE, HONING 1
15 6509131 NUT 1
16 6509134 SPRING 2
17 6509133 BALL 2
18 6509135 BUTTON, DEPRESS 2
19 6509136 SET SCREW, DEPRESS BUTTON 2
20 6509132 WASHER, HORNING STONE 1
21 6509143 NUT, SHARPENING STONE 1
22 6509144 WASHER, SHARPENING STONE 1
23 6509142 STONE, SHARPENING 1
24 6509141 STUD, SHARPENING STONE 1
25 6509128 BUSHING 1
26 6509126A MOUNT, SHARPENER STONE 1
27 7510150 LOCKING PIN, SHARPENER 1
IN FIG 2
Page 17
