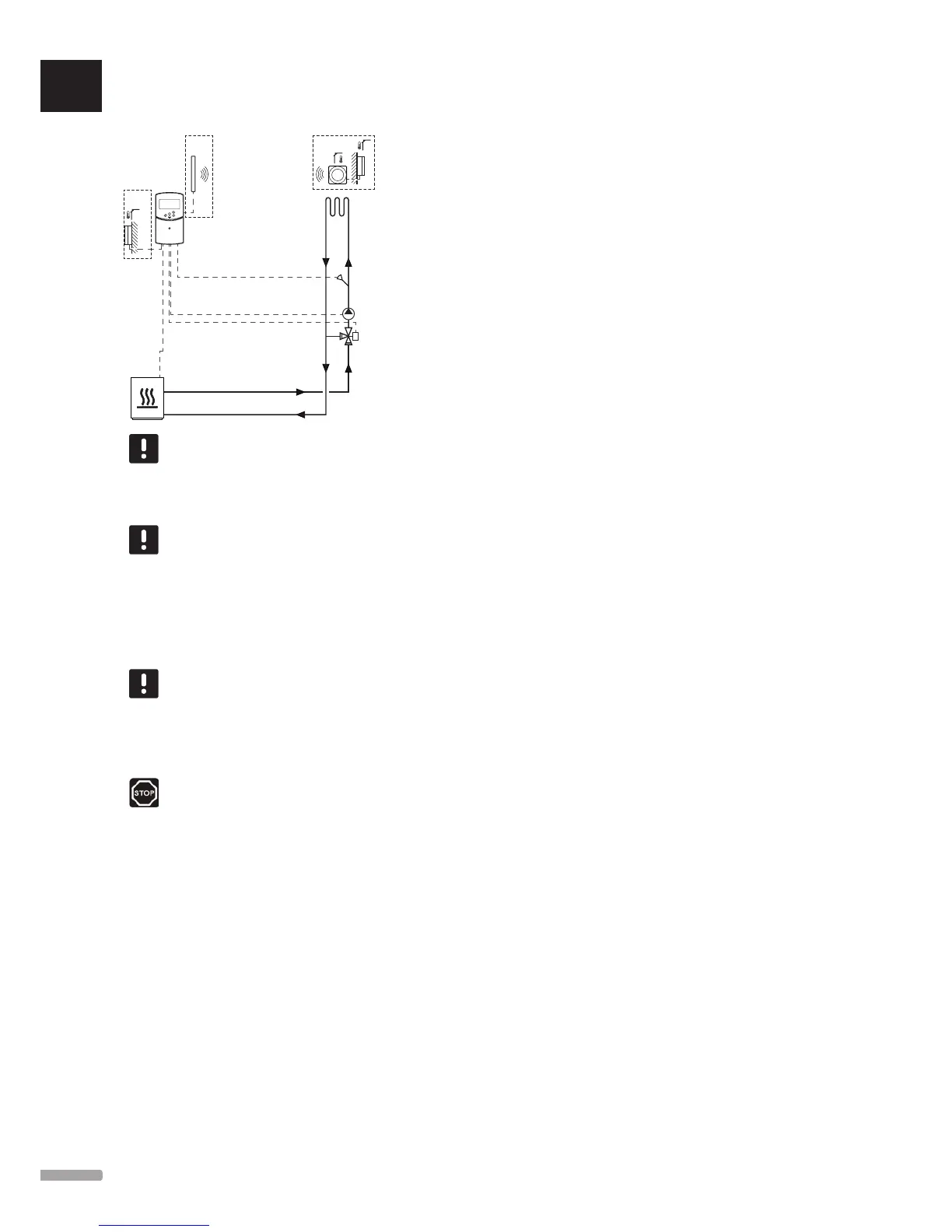

Basic heating system
Move PLUS
Move
Move PLUS
NOTE!
This is an outline diagram. A real system must
be installed according to applicable norms
and regulations.
NOTE!
When registering a thermostat to the
controller (Move PLUS only), run mode
changes parameter 0 (type) to rEv,
regardless of previous setting. Heating/
cooling is then controlled by the thermostat,
or the integrated system.
NOTE!
If the outdoor sensor is placed to far away
from the reference room (Move PLUS only),
a separate thermostat can be used to register
the outdoor sensor.
Warning!
There is 230 V (5 A) power in the controller
when connected to the mains.
This installation example depicts a basic heating system.
The circulation pump and mixer valve is operated by the
controller to maintain the supply temperature.
Example specific electrical connections
• The circulation pump is connected to the terminal
labelled P1.
• The mixer valve actuator is connected to the
terminal labelled ACTUATOR.
See section 5.4 Connect components to controller for
more information.
See also the wiring diagram in the end of the manual.
Example specific system parameter settings
• Set parameter 0 – Type of installation to Hot if it is
a heating system (Move only).
See section 8.6 System parameter settings for more
information.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
14
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
