Uponor SmatrixMove User Manual

5 Install Uponor Smatrix Move/Move PLUS
controller
5.1 Placement of controller
Refer to the installation preparation guidelines (see
section 4.2 Prepare for installation), and use the
following guidelines when positioning the controller:
• Position the controller close to the actuator, if
possible. Check the position of the 230 V AC wall
socket, or if required by local regulations, a junction
box, connected to the mains power.
• Check that the cover of the controller can be
removed easily.
• Check that connectors and switches are easily
accessible.
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
Warning!
Ensure that the controller and devices
connected, or to be connected, are
disconnected from the mains before doing
any work behind the secured 230 V AC cover.
Most connectors behind the secured cover
on the controller are connected to 230 V
AC, when the controller is connected to the
mains.
Warning!
Do not interchange the connections of the
sensors and the 230 V connections under
any circumstances. Interchanging these
connections may result in life endangering
electrical hazards or the destruction of the
appliance, the connected sensors and other
appliances.
NOTE!
Only 230 V Uponor actuators are compatible
with the controller.
5.2 Attach controller to the wall
The controller is delivered in kits including screws and
wall plugs.
Screws and wall plugs

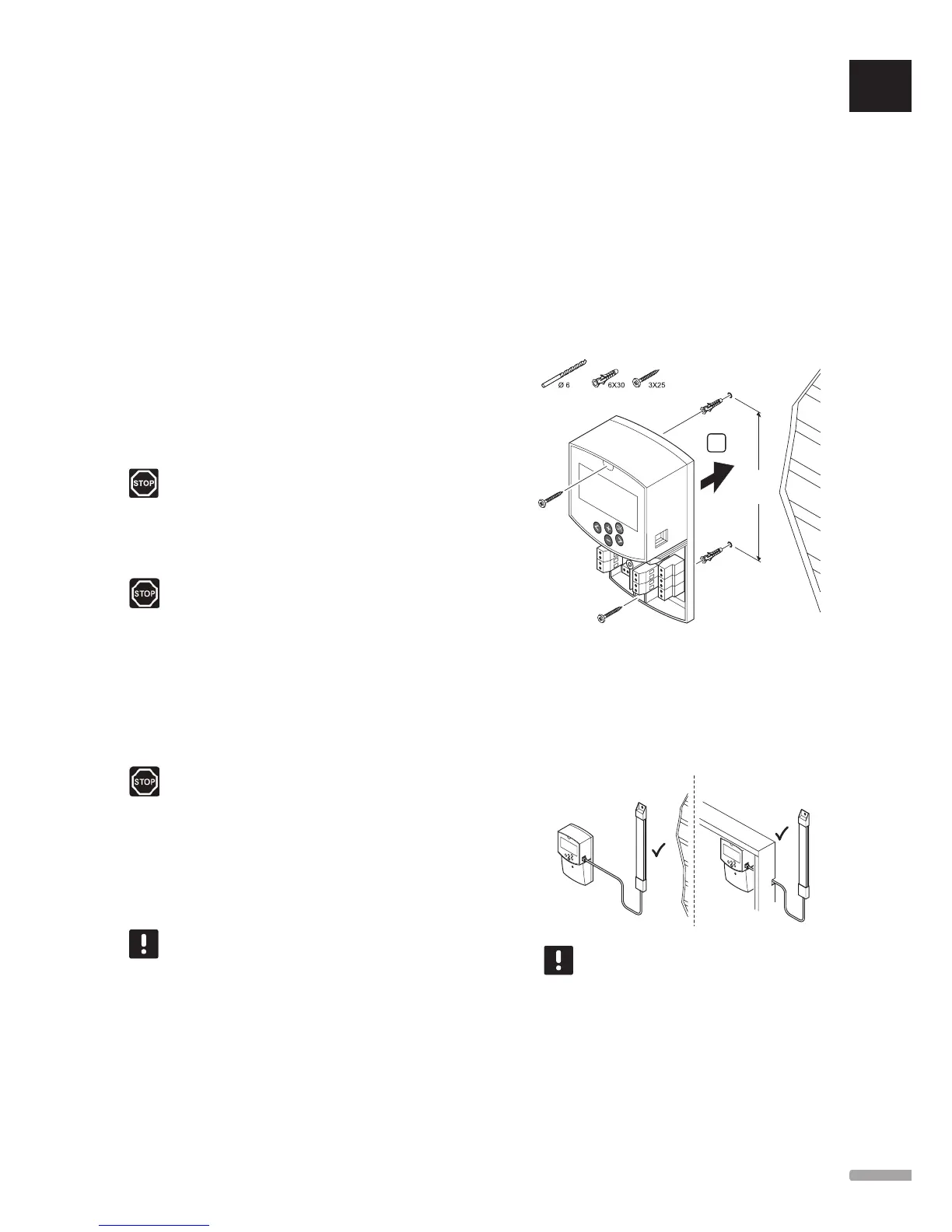

The figure below shows controller mounting hole
positions, and how to attach it to the wall using screws
and wall plugs.
145 mm
A
5.3 Install controller antenna (Move
PLUS only)
The antenna can be attached to the wall, within cable
range of the controller, as in the figure below. If the
controller is installed inside a metal cabinet, the entire
antenna must be placed vertically outside the cabinet.
NOTE!
The antenna must be installed vertically for
best coverage.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
19
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
