Upright AB38 - Alternator Wiring Diagram; Rectifier Series Connection

Page6
Illustrated Parts Breakdown - Engine & Alternator Assembly
AB38 Bi-Energy PARTS MANUAL
+ - - +
+
-
-
+
+
-
-
+
-
+
-
+
-
+
-
+
-
+
-
+
POSITIVE TO LINE CONTACTOR
CONTACTOR NEGATIVE TO MOTOR CONTROLLER
48V BATTERY PACK
ANDERSON
PLUG
ENGINE/ALTERNATOR
PACK
RECTIFIER
NO.1
RECTIFIER
NO.2

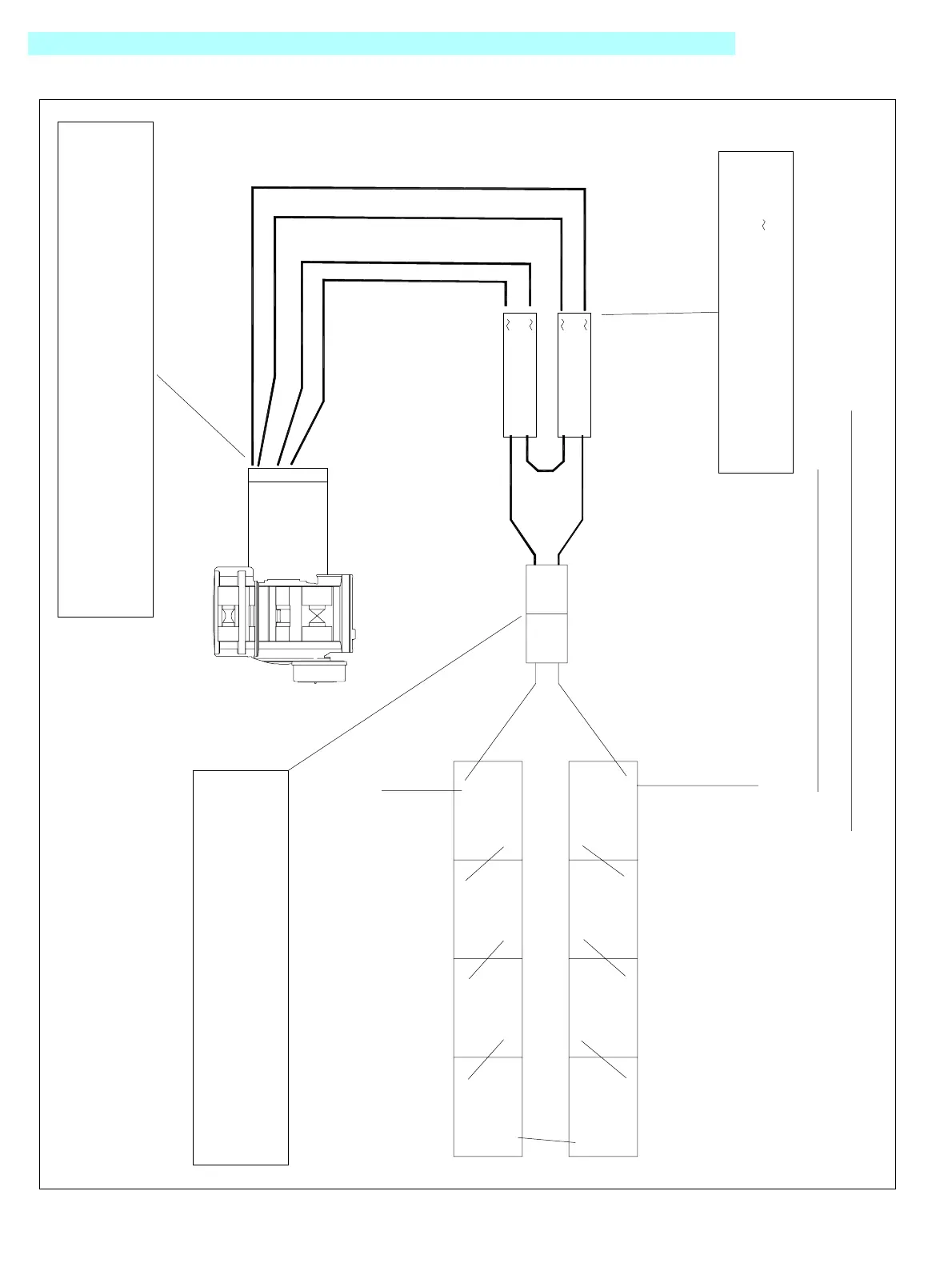

AB38 BI-ENERGY ALTERNATOR WIRING
RECTIFIERS WIRED IN SERIES
WHEN SETTING ENGINE SPEED
VOLTAGE IS MEASURED AT THIS POINT
ON RECTIFIER SIDE WITH PLUG
DISCONNECTED
+,-, SYMBOLS ARE MARKED
ON SIDES OF RECTIFIERS
TERMINALS ON SIDE OF ALTERNATOR CASING
ARE CONNECTED TO ONE RECTIFIER
TERMINALS ON BASE OF ALTERNATOR CASING
ARE CONNECTED TO ONE RECTIFIER
