Transporting the Machine
113100-000 | MX15 / MX19 - Operator Manual Page 9
T
RANSPORTING
THE
M
ACHINE
Always use a transport vehicle when moving a machine to a work site. Towing the machine over long dis-
tances will damage the machine and void the warranty.
DANGER
! !
See specifications for the weight of the machine and be certain that the crane or forklift is of adequate
capacity to lift the machine.
L
IFTING
B
Y
C
RANE

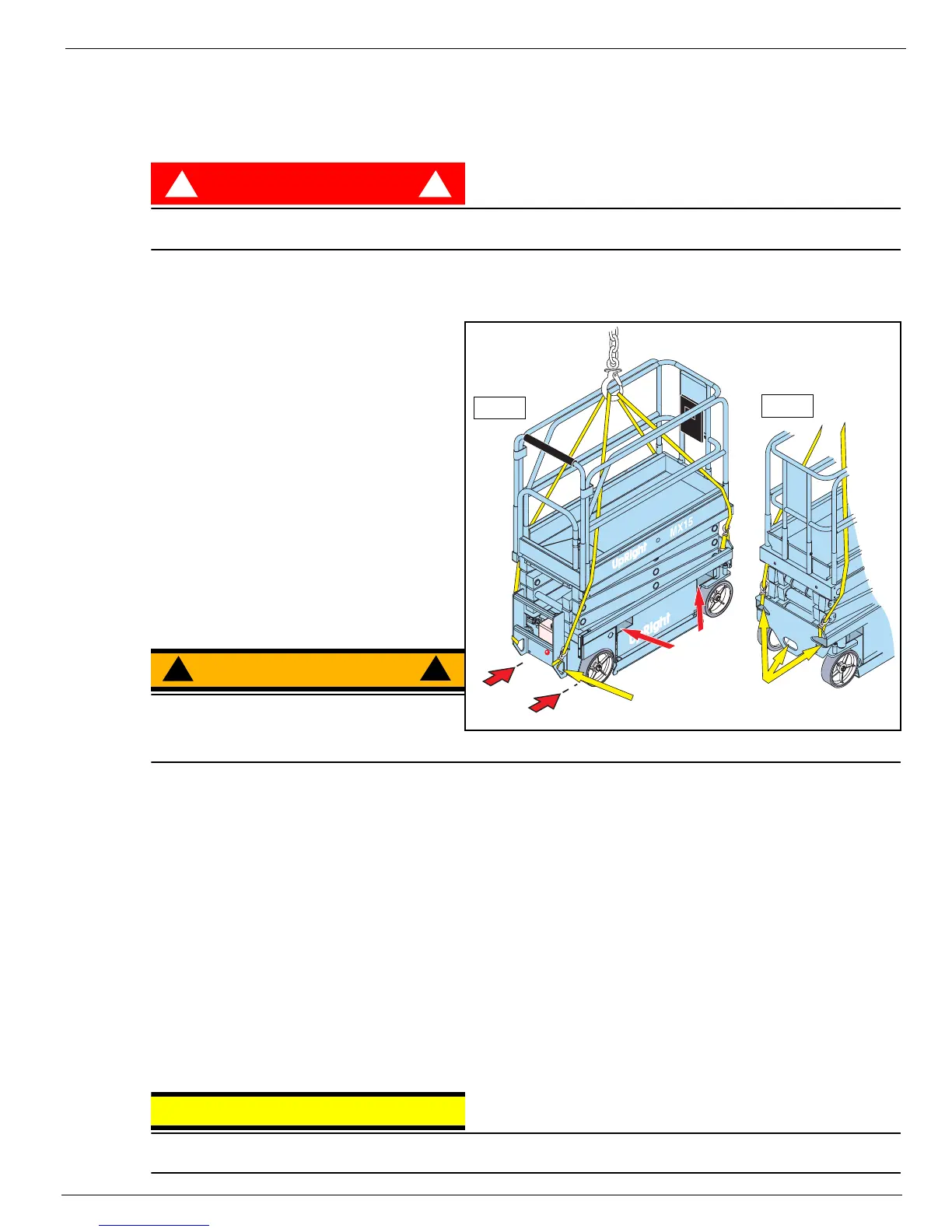

Figure 6:
Crane Straps, Forklift Pockets and Tie Down / Lift Points
Secure straps to chassis tie down/lifting
points only (refer to Figure 6).
M
OVING
B
Y
F
ORKLIFT
IMPORTANT:
Forklifting is for transport only.
Both the MX15 and MX19 may be fork-
lifted from the rear end of the machine
between the wheels.They may also be
forklifted from the side using the forklift
pockets shown in Figure 6.
D
RIVING
OR
W
INCHING
ONTO
A
T
RUCK
OR
T
RAILER
WARNING
!
!
Never winch faster than 0,3 m/sec.
(1 ft./sec.).
Never operate the machine with the parking brakes released. Serious injury or damage could result.
1. Loading the machine onto the truck or trailer;
A. To
Drive
the machine onto the transport vehicle:
a. Turn the Lift/Drive Switch to DRIVE and drive the machine up the ramp and into transport position.
b. Set the wheels straight and turn off the machine.
c. Chock the wheels.
B. To
Winch
the machine onto the transport vehicle:
a. Drive the machine up to the ramp.
b. Attach the winch cable to the tie down/lifting points.
c. Release the parking brakes (refer to “Parking Brake Release” on page 8).
d. Winch the machine into transport position.
e. Chock the wheels.
f. Engage the parking brakes.
2. Secure the machine to the transport vehicle with chains or straps of adequate load capacity attached to
the chassis tie down/lifting points (refer to Figure 6).
CAUTION
Overtightening chains or straps attached to the Tie Down/Lift Points may result in damage to the
machine.
FRONT
REAR
F
o
r
k
l
i
f
t
T
ie
D
o
w
n
/
L
if
t
P
o
in
t
s
F
o
r
klif
t
P
o
c
ket
s
