Page 14 113100-000 | MX15 / MX19 - Operator Manual

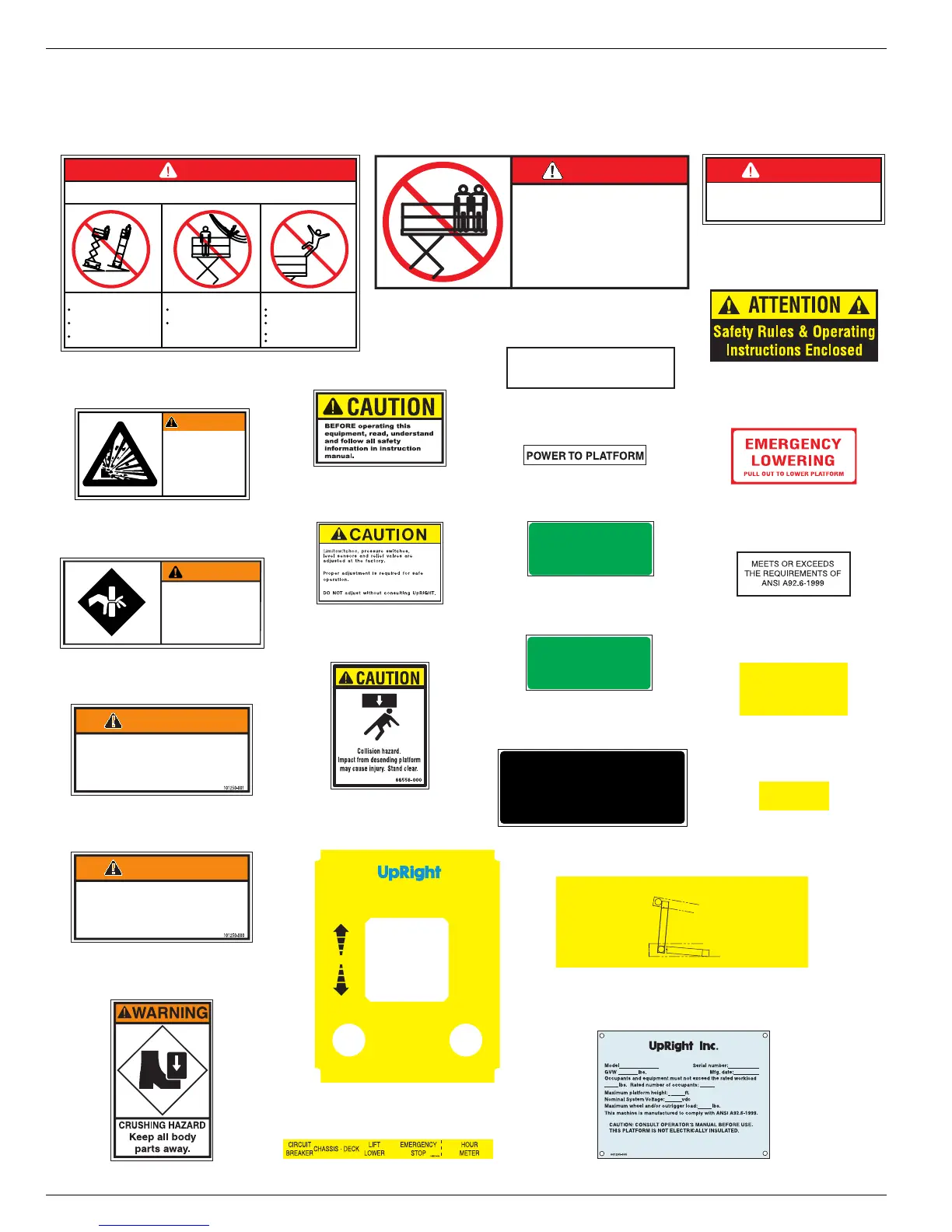

Labels
L
ABELS
These labels shall be present and in good condition before operating the machine. Be sure to read, under-
stand and follow these labels when operating the machine.
1 066550-000
TIP-OVER HAZARD
DANGER
Failure to read, understand and obey the following safety rules
will cause death or serious injury
DO NOT elevate or drive elevated on
slopes or soft ground
DO NOT drive into holes or over
drop offs
No more than one person or 250 Lbs. on
slide out platform
ELECTROCUTION HAZARD
DO NOT operate within ten feet of power
lines. THIS MACHINE IS NOT INSULATED.
Look up, down and around for electrical
wires
FALL HAZARD
DO NOT climb on guardrail
Lower top rail and secure gate or chain
across entrance
DO NOT use ladders or scaffolding on platform
Make sure guardrails are fastened securely
DO NOT climb down scissors.
10 066559-000
2 066552-000
Explosive gas is
generated when
charging batteries.
Do not expose to
sparks or flames.
WARNING
3 066553-003
WARNING
KEEP CLEAR OF
SCISSORS
BLOCK SCISSORS
BEFORE
SERVICING
6 066554-000
7 066555-000
8 066556-000
4 MX15 101250-001
MAXIMUM DISTRIBUTED
PLATFORM LOAD 550 LBS.
OR TWO OCCUPANTS
MAXIMUM SIDE LOAD 100 LBS.
WARNING
4 MX19 101250-000
MAXIMUM DISTRIBUTED
PLATFORM LOAD 500 LBS.
OR TWO OCCUPANTS
MAXIMUM SIDE LOAD 100 LBS.
WARNING
18 066558-000
9 101222-004
20 005221-000
BATTERY
MAINTAIN BATTERY FLUID
AT RECOMMENDED LEVEL
12 014222-003-99
FORK-LIFT HERE
FOR TRANSPORTING ONLY
014222-003-99
17 010076-001
19 061220-002
14 MX19 101252-009
MAXIMUM
WHEEL LOAD
1150 LBS.
101252-009
14 MX15 101252-002
MAXIMUM
WHEEL LOAD
1050 LBS.
101252-002
23 061205-005
801 S. PARK ST. MADERA CALIFORNIA 93737 USA
16 062562-001
TIP-OVER HAZARD
DANGER
BATTERIES ACT AS COUNTERWEIGHT
60 LBS OR MORE
EACH REPLACEMENT BATTERY SHALL WEIGH
5 066556-001
13 068639-000
15 107051-000
BATTERY DISCONNECT
LOCATED INSIDE
USE DISCONNECT BEFORE
SERVICING WORK PLATFORM
OR BATTERIES
11 101251-000
DANGER
TIP-OVER HAZARD
MAXIMUM DISTRIBUTED LOAD
250 LBS. OR 1 OCCUPANT
ON EXTENDED DECK
MAXIMUM SIDE LOAD 100 LBS.
21 066522-000
CHARGER
BATTERY
22 063255-001
SCISSOR BRACE INSTRUCTIONS
POSITIONING STORAGE
1. RAISE PLATFORM USING LOWER CONTROLS
APPROX IMATELY 7 FT.
2. ROTATE SCISSOR BRACE TO A VERTICAL POSITION.
3. LOWER PLATFORM UNTIL END OF SCISSOR ARM
WELDMENT REST ON BRACE.
1. SLOWLY RAISE PLATFORM (WHILE HOLDING BRAC E)
UNTIL THE END OF SCISSOR ARM WELDMENT
CLEARS SCISSOR BRACE.
2. ROTATE SCISSOR BRACE FORWA RD TO REST ON
CHASSIS.
INSTALLED
STORED
063255-001
FORWARD
UP
NEUTRAL
DOWN
REVERSE
EMERGENCY
STOP
DRIVE
LIFT
