2-1 G
ENERAL
D
ESCRIPTION
The MX15 and MX19 are self-propelled aerial work platforms designed to provide mobility with the plat-
form elevated or lowered. The elevating function shall only be used when the platform is on a firm, level
surface. Travel with the platform elevated is limited to the low speed range. The machine is intended to be
self-propelled only when in relatively close proximity to the work area.
WARNING
!
!
DO NOT use the machine without guardrails properly assembled and in place.

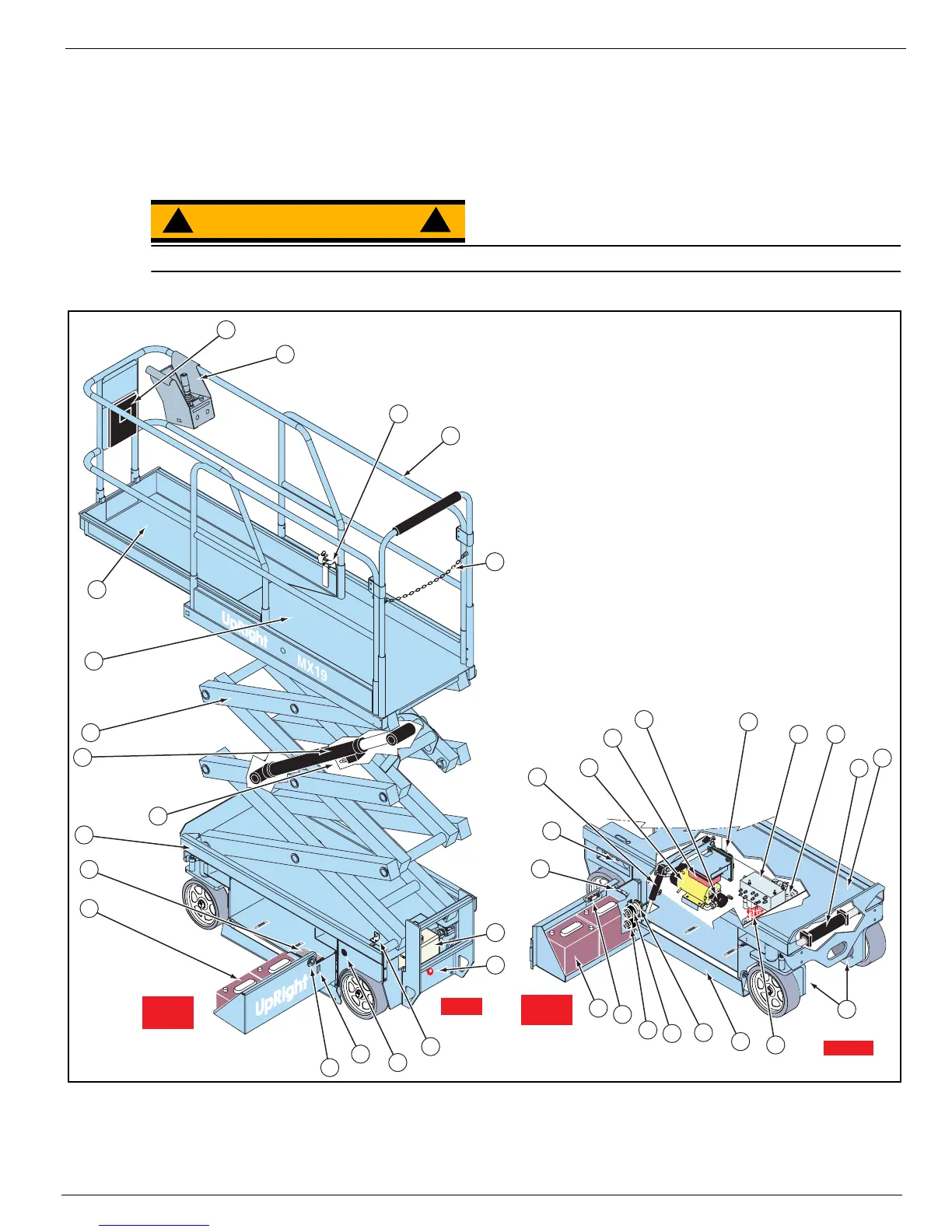

Figure 2-1:
MX15 / MX19 Work Platform
1
7
FRONT
REAR
Right
Door
Left
Door
10
16
17
13
20
21
22
23
26
35
34
19
24
25
27
29
28
30
31
33
11
32
18
15
14
6
4
1
3
5
13
12
11
8
9
2
1. Platform Controls
2. Documentation
Compartment
3. Deck Extension
4. Deck-Lock Foot Lever
5. Platform Deck
6. Platform Guardrail
7. Entry-way Closure
8. Elevating Assembly
9. Lift Cylinder
10. Emergency Lowering Valve
11. Chassis
12. Battery Charger
13. Batteries
14. Charger Plug
15. Charger LED Window
16 Proximity Switch
17. Hydraulic Fluid Reservoir
18. Emergency Lowering Knob
19. Cable Connector
20. 175 AMP Fuse, Overload
Protection
21. Horn (option)
22. Audible Alarm
23. Solenoid, Motor Relay
24. Chassis Controls
25. Depression Mechanism
Cylinder
26. Depression Mechanism Rail
27. Hydraulic Pump Motor
28. Hydraulic Pump
29. Motor Controller
30. I/O Board
31. Hydraulic Manifold
32. Hydraulic Fluid Filter
33. Steering Cylinder
34. Hydraulic Drive Motors
35. Level Sensor
