Blocking the Elevating Assembly Section 2 - Service and Repair
Page 2-6 113101-000 MX15 / MX19 | Service Manual
2-3 B
LOCKING THE
E
LEVATING
A
SSEMBLY
WARNING
!
!
Never perform service on the machine in the elevating assembly area while platform is elevated without
first blocking the elevating assembly.
DO NOT stand in elevating assembly area while deploying or storing brace.

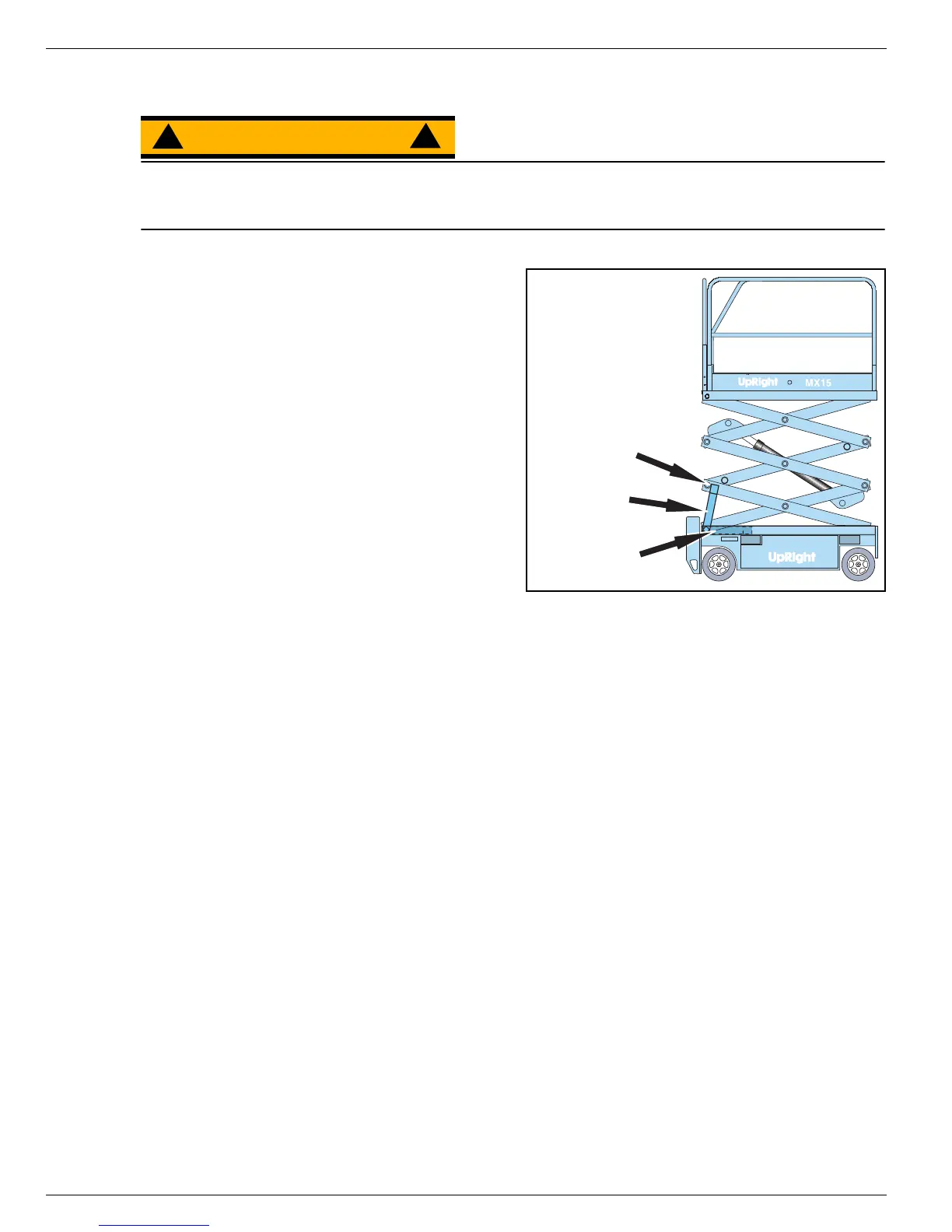

Figure 2-2:
Blocking the Elevating Assembly
E LEVATING A SSEMBLY B RACE
I NSTALLATION
1. Park the machine on a firm, level surface. Com-
pletely unload the platform before deploying the
elevating assembly brace.
2. Verify that the Chassis and Platform Emergency
Stop Switches are ON by pulling each button out.
3. Turn and hold the Chassis Key Switch to
CHASSIS. Push the Chassis Lift/Lower Switch to
UP and elevate the platform;
• MX15 - approximately 2,1 m (7ft.).
• MX19 - approximately 2,7 m (9 ft,).
4. Rotate the elevating assembly brace towards the
rear, holding it perpendicular to the assembly
arm weldment.
5. Carefully lower the platform until the end of the
elevating assembly arm weldment rests on the brace.
E LEVATING A SSEMBLY B RACE S TORAGE
1. While holding the brace, slowly raise the platform using the chassis controls until the end of the elevat-
ing assembly arm weldment clears the elevating assembly brace.
2. Rotate the elevating assembly brace forward to rest on the chassis.
3. Push the Chassis Lift/Lower Switch to DOWN and completely lower the platform.
Elevating
Assembly Arm
Weldment
Brace
Installed
Brace
Stored
