Cutter Parts
Before you start cutting, you should familiarize yourself with the cutter and its basic parts and functions:

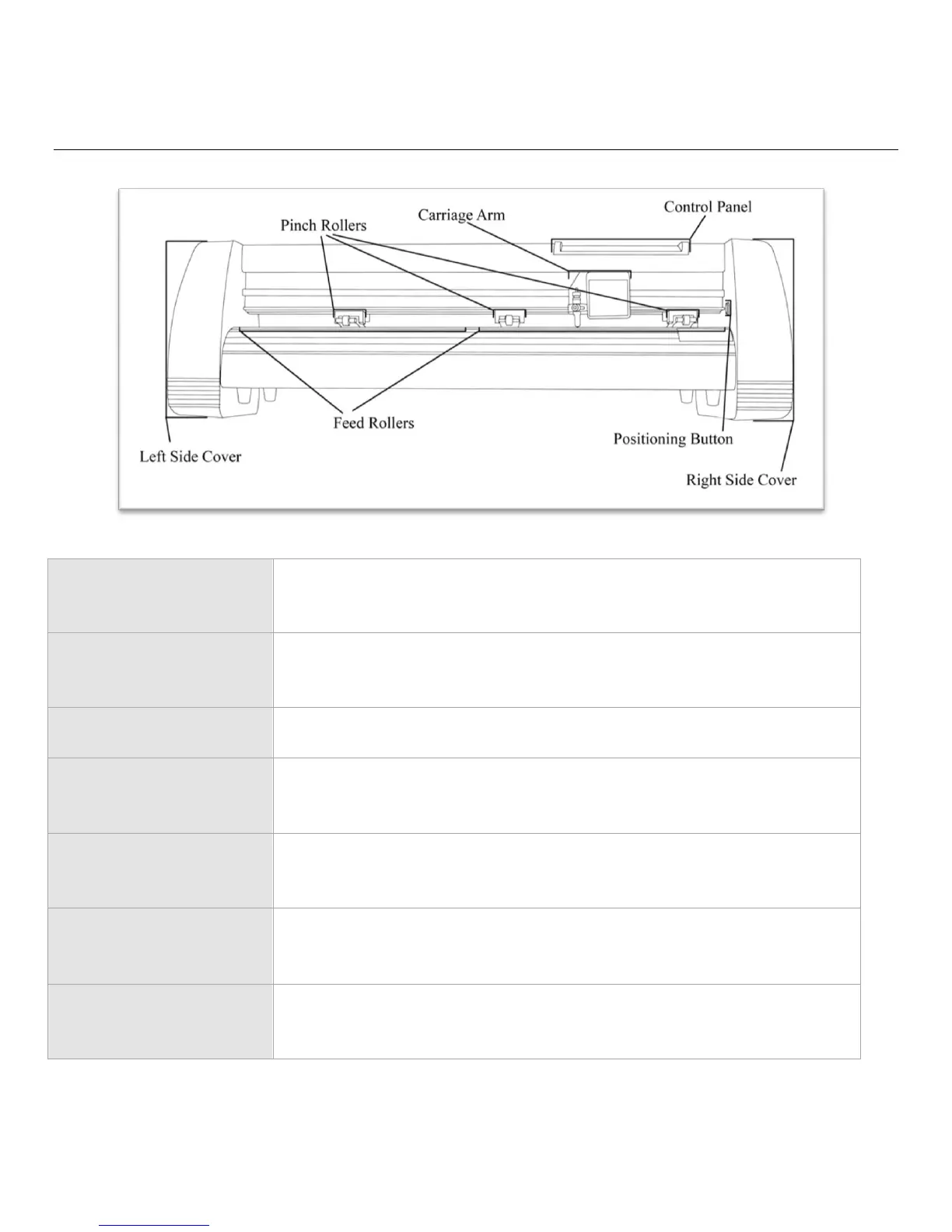

Front View
Control Panel
Used to provide input directly to the cutter. Covered in detail in the
“Control Panel” (page 8) section of this manual.
Carriage Arm
Holds the Blade (or Pen) Carriage. Shown in detail on page 5.
Pinch Rollers
Holds the media tightly to the feed roller below. Back view shown in detail
on page 7.
Feed Rollers
Positions the cutting material during operation.
Positioning Button
Used by the cutter to determine the location of the Carriage Arm.
Left Side Cover
Contains the Power Cable Port, Power Switch and Fuse Cartridge for
the cutter. Shown in detail on page 6.
Right Side Cover
Contains the USB and Serial cable ports for the cutter. Shown in detail on
page 5.
