2.2.3 Connecting Power
1. Check that the power switch on the back panel of the
tester is OFF.

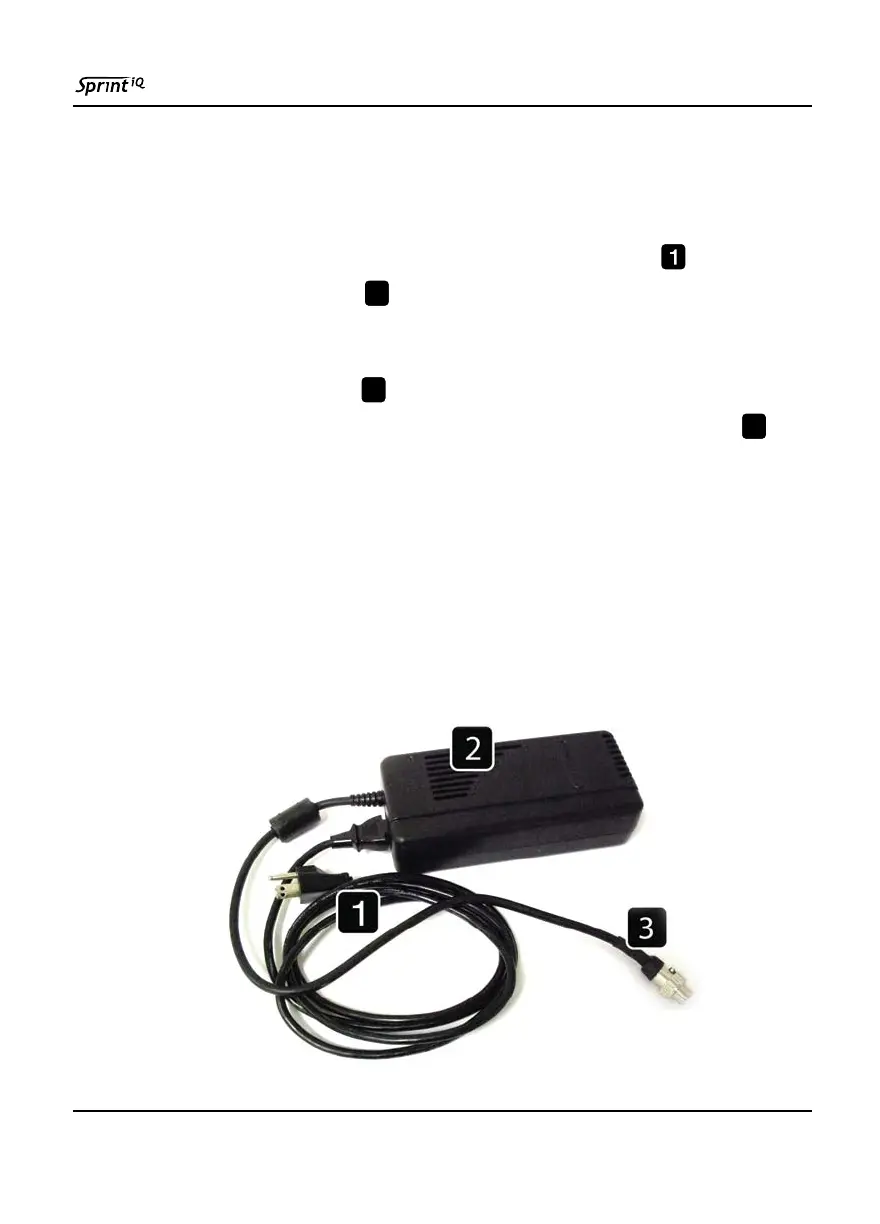

2. Referring to the figure below, connect the AC power
cord to the power supply. (The type of power cord
supplied with Sprint iQ will vary, depending on the
country.)
3. Attach the DC output power cord to the rear panel of
the tester at location shown on page 10 at location .
Lock it in position by turning the connector collar so that
it firmly grips the receptacle.
4. Finally, connect the AC power cord to the facility power
receptacle. The green light on the power supply should
now be illuminated indicating that the power supply is
receiving AC power.
Before switching the tester ON, be sure that the power supply is
located in a position where it will be open to air flow and stable.
