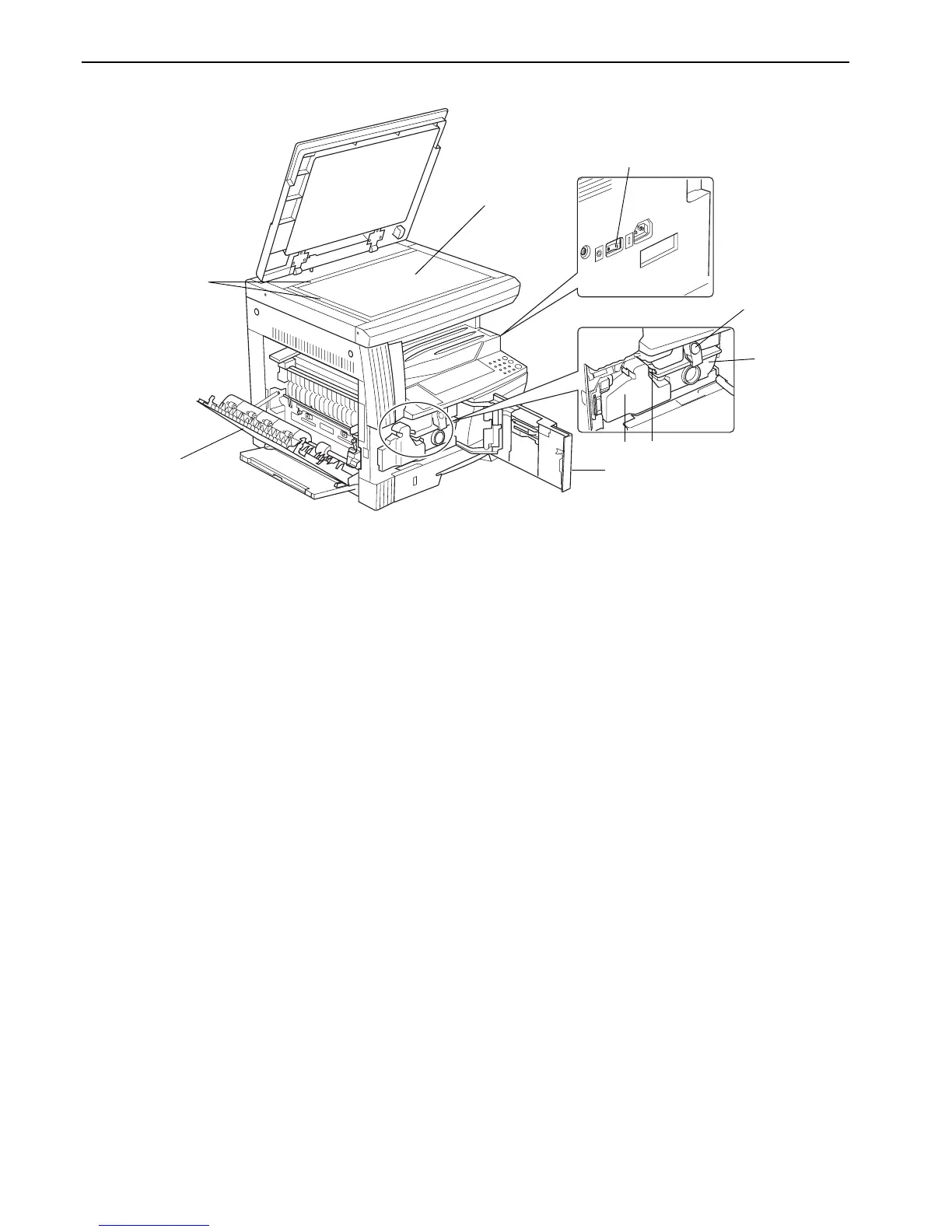

Section 2 NAMES OF PARTS
2-2
(11) Platen
Set the original here. Place the copy original face down and
align it so that it is flush against the left rear corner of the
platen.
(12) Original Size Indicator Plate
Be sure to align the original flush with this plate when setting
it.
(13) Left Cover
Open this when a copy jam occurs.
(14) Waste Toner Box
(15) Toner Container Release Lever
Use this when replacing the toner container.
(16) Toner Container
(17) Cleaning shaft
Pull this out and then press it back in after replacing the
toner container or when blemishes appear on copies.
(18) Front Cover
Open this when cleaning or replacing the toner container or
waste toner box.
(19) Power Switch
Turn this switch ON (|) before beginning copying operations.
(11)
(16)
(12)
(15)
(14)
(13)
(17)
(18)
(19)
