2NM/2NX/2NY/2NZ/2P0/2P6-1
1-2-1
1-2 Installation
1-2-1 Installation environment
1. Temperature: 10 to 32.5°C/50 to 90.5°F
2. Humidity: 15 to 80% RH
3. Power supply: 120 V AC, 12.0 A
220 - 240 V AC, 6.0 A
4. Power supply frequency: 50 Hz ±2%/60 Hz ±2%
5. Installation location
Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sun-
light or other strong light when removing paper jams.
Avoid locations subject to high temperature and high humidity or low temperature and low humidity; an
abrupt change in the environmental temperature; and cool or hot, direct air.
Avoid places subject to dust and vibrations.
Choose a surface capable of supporting the weight of the machine.
Place the machine on a level surface (maximum allowance inclination: 1°).
Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such
as mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic sol-
vents.
Select a well-ventilated location.
6. Allow sufficient access for proper operation and maintenance of the machine.
*1: With PT-320 (50/60 ppm model only)

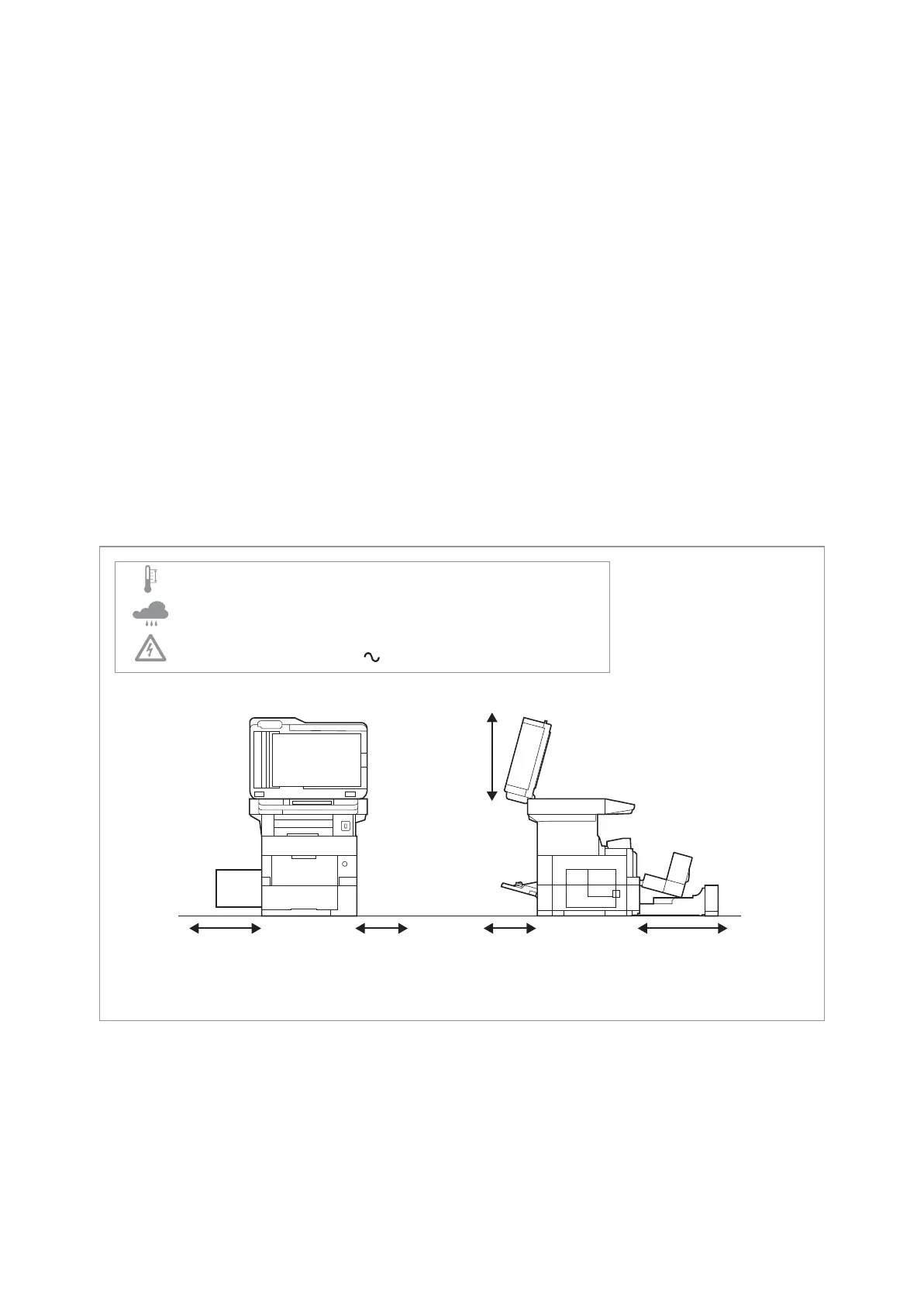

Figure 1-2-1
10 - 32.5 °C (50 to 90.5 °F)
15 - 80%RH
120 V Model: 120 V 60 Hz 12.0 A
230 V Model: 220-240V 50/60 Hz 6.0 A
400 mm
(15-3/4")
300 mm
(11-13/16")
100 mm
(3-15/16")
300 mm
(11-13/16")
500 mm
(19-11/16")
500 mm *1
(19-11/16")
