Utax P-4035 MFP

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-48
1-5-8 Eject section
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.
(1) 50/60 ppm model

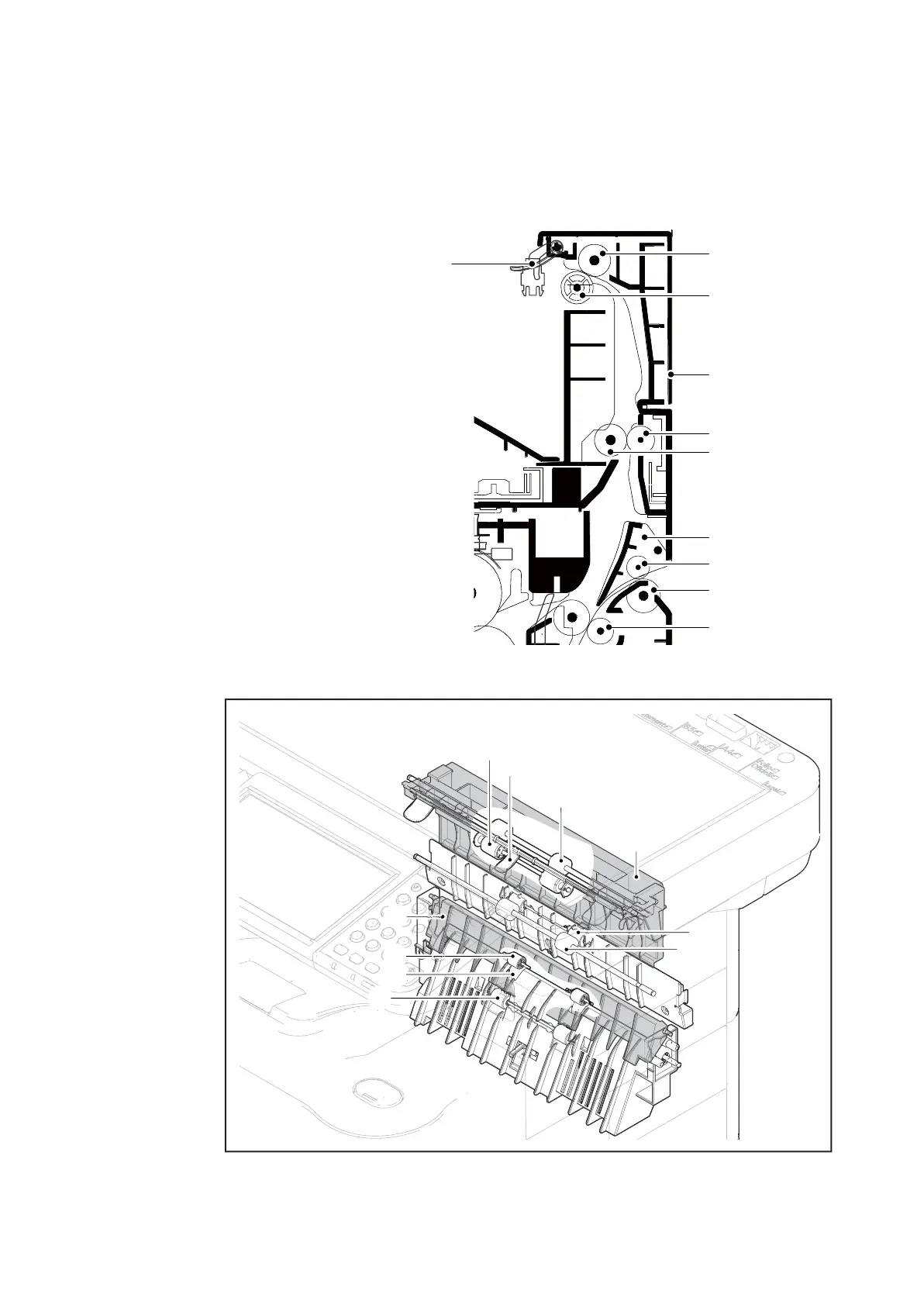

Figure 1-5-79
Figure 1-5-80
3
2
1
5
6
4
9
10
8
7
[Component formation]
1. Upper eject pulley
2. Upper eject roller
3. Actuater
(Paper full sensor (PFS))
4. LowerEject roller
5. Lower eject pulley
6. Eject upper cover
7. DU feed pulley
8. Faceup roller
9. Faceup pulley
10. Faceup guide
1
2
3
4
5
8
9
7
10
6
