(4) Detaching and refitting the right upper cover
Procedure
1. Remove the controller cover.
2. Remove the screw from the right upper
cover.
3. Release two hooks using a flat screw
driver and remove the right upper cover.

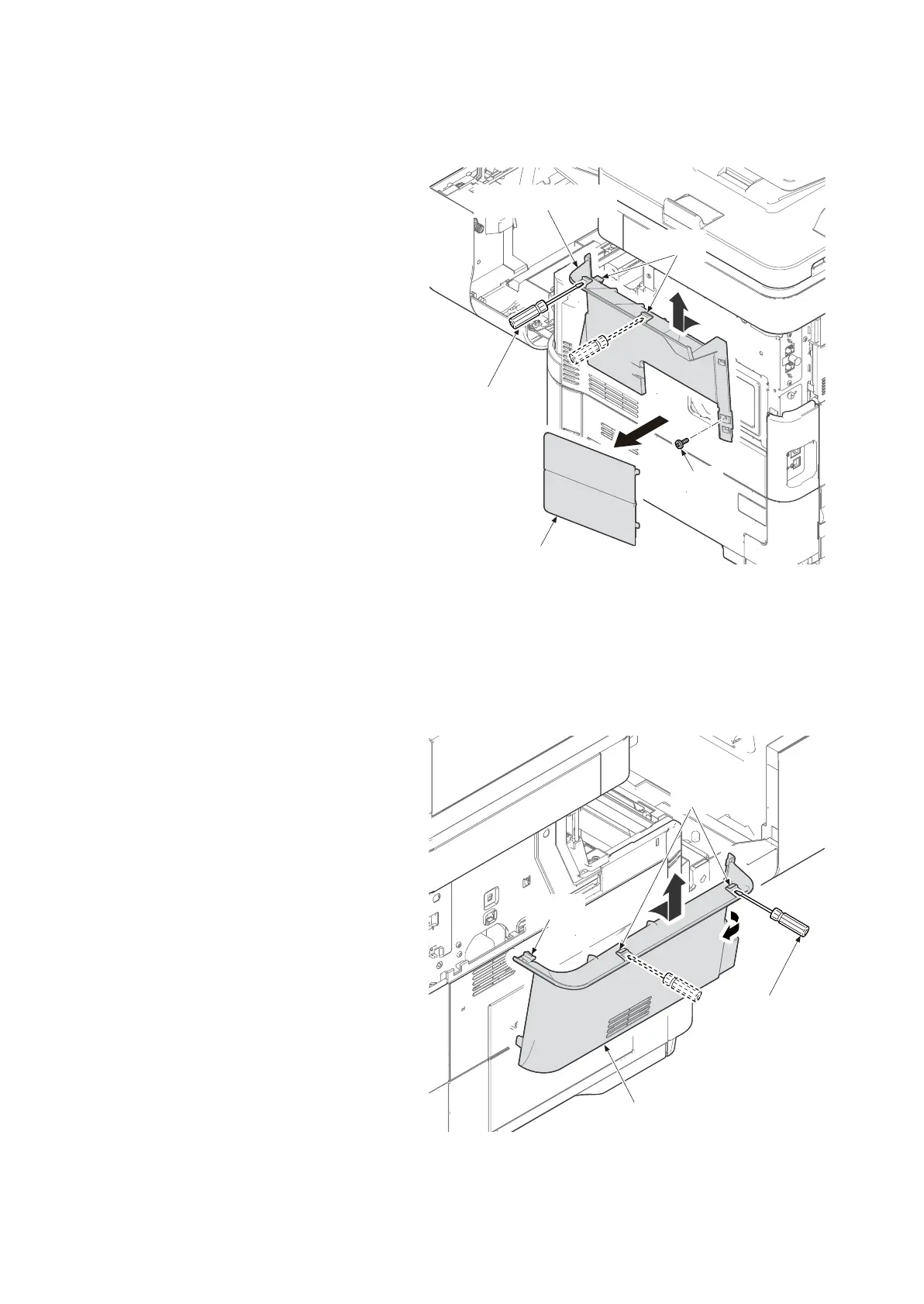

Figure 1-5-145
(5) Detaching and refitting the left upper cover
Procedure
1. Release two hooks using a flat screw
driver and remove the left upper cover.
Figure 1-5-146
Controller cover
Flat screw driver
Hooks
Right upper cover
Screw
Hook
Hooks
Left upper cover
Flat screw driver
