Utax P-4035 MFP

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-65

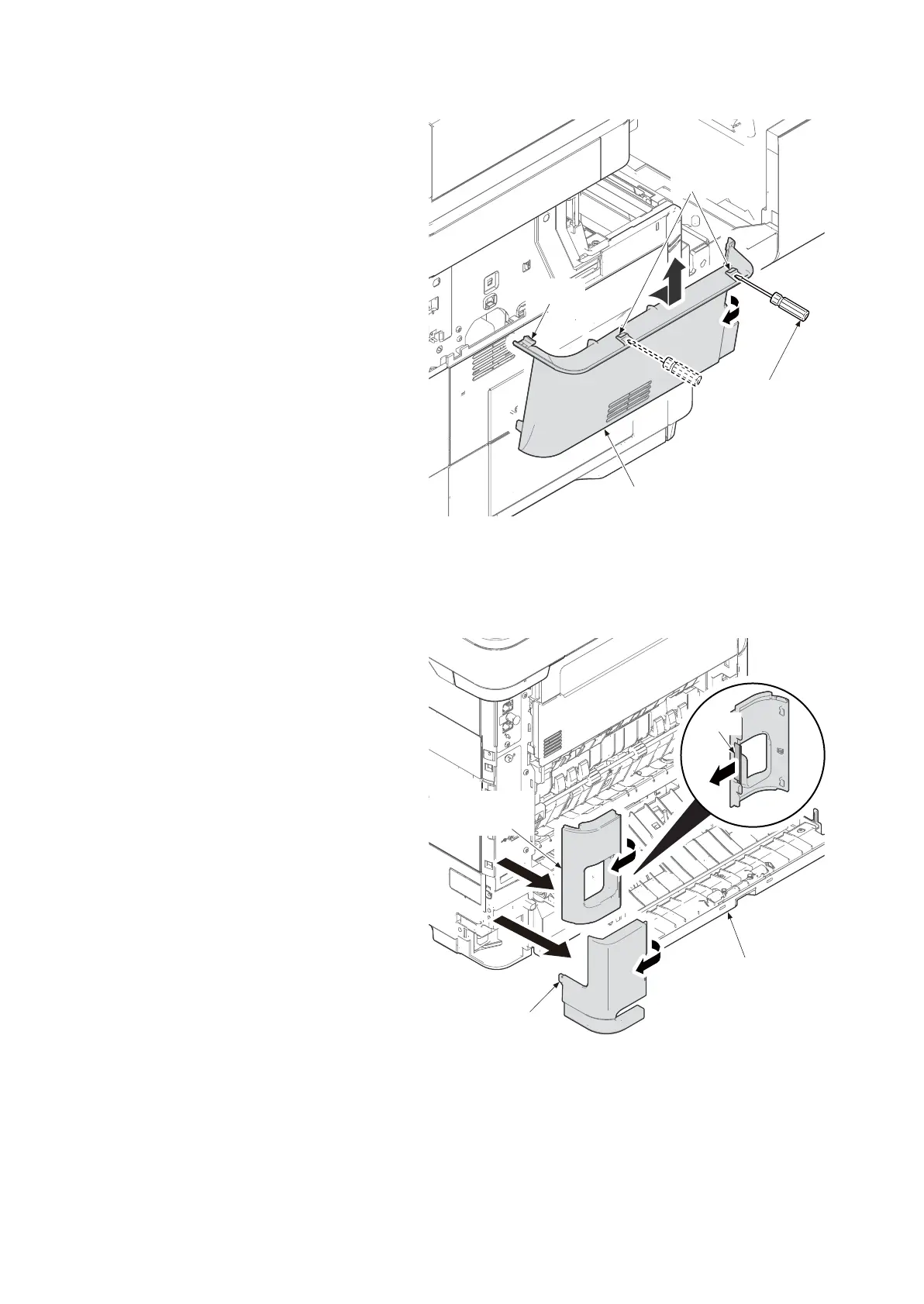

7. Release two hooks using a flat screw
driver and remove the left upper cover.
Figure 1-5-109
8. Open the rear cover.
9. Remove the lower interface cover and
the inlet cover.
Figure 1-5-110
Hook
Hooks
Left upper cover
Flat screw driver
Rear cover
Hook
Inlet cover
Lower
interface cover
