2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-67

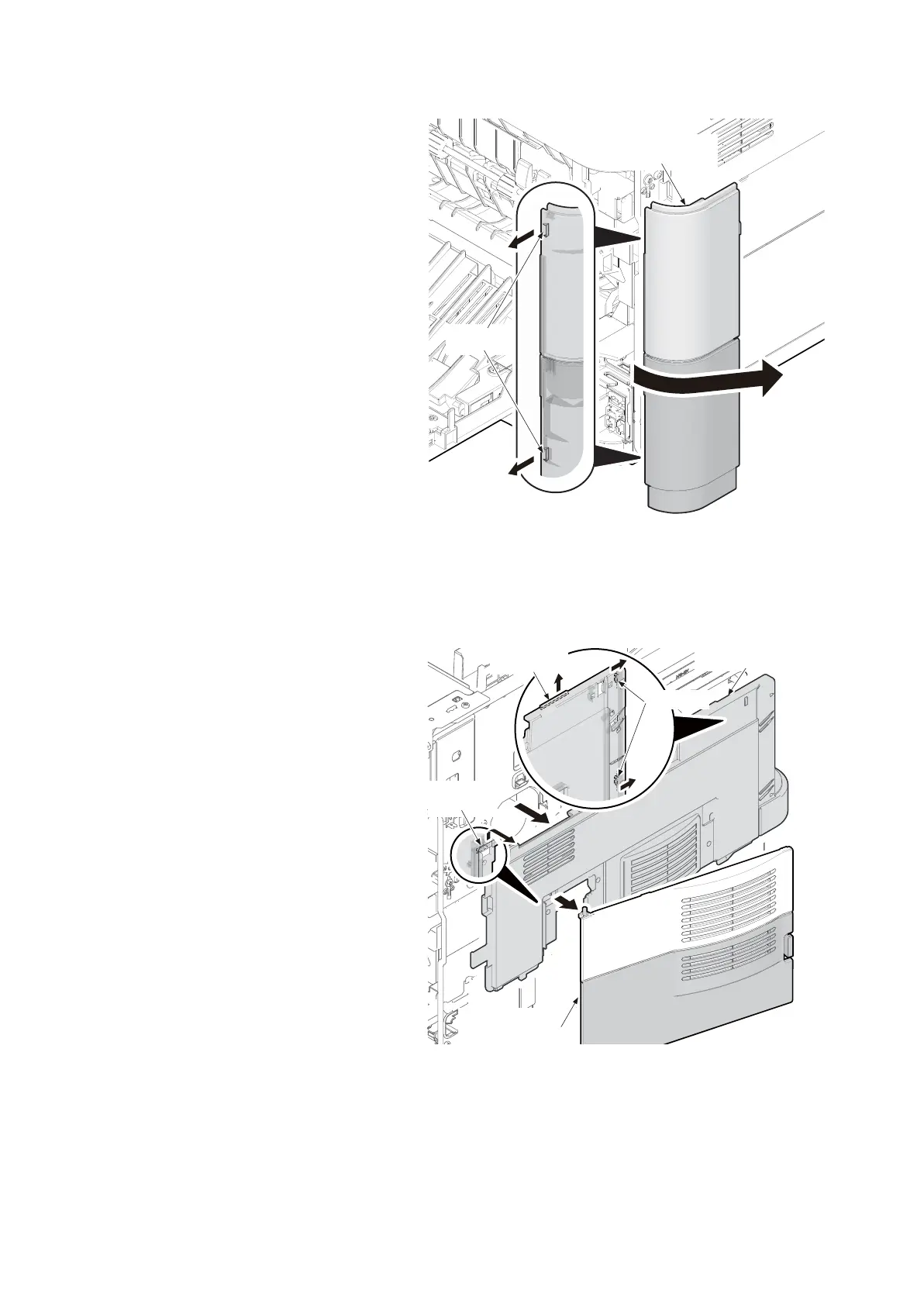

15. Release two hooks of the rear left cover
while pulling forward.
16. Remove the rear left cover by rotating.
Figure 1-5-113
17. Release the hook A by sliding the left
middle cover upward.
18. Release the hook B and hook C and
then remove the left middle cover and
the waste toner box cover.
Figure 1-5-114
Rear left cover
Hooks
Left middle cover
Hook A
Waste toner
box cover
Hooks B
Hook C
