Utax P-4035 MFP Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-78

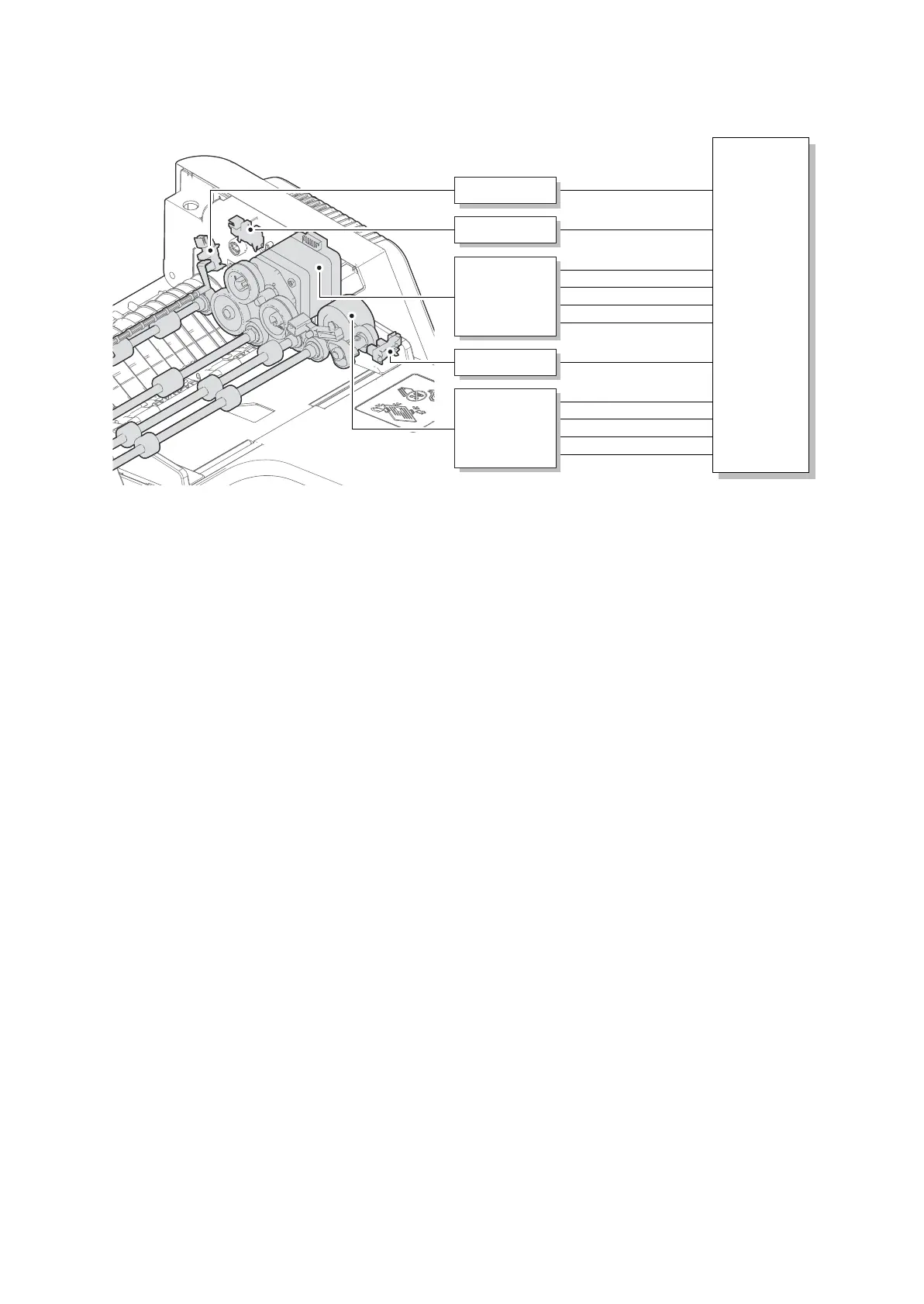

[Control block diagram]
Figure 1-5-131
DPRS
1
YC1003-6
DPMPWB
DPCM
6
4
3
1
CONNMOTB2
CONNMOTB1
CONNMOTA2
CONNMOTA1
YC1001-1
YC1001-2
YC1001-3
YC1001-4
DPFSM
6
4
3
1
CONV
_
MOT
_
/B
CONV
_
MOT
_
/A
CONV
_
MOT
_
B
CONV
_
MOT
_
A
YC1001-5
YC1001-6
YC1001-7
YC1001-8
REGIST
_
SW
DPTS
1
TIMING
_
SW
YC1003-15
DPOCS 1
DP
_
OPEN
_
SW
YC1003-9

Utax P-4035 MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, File, Image, USB
Grayscale levels	256
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Faxing	Mono faxing
Fax memory	8 MB
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax resolution (black)	200 x 100 DPI
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Total input capacity	500 sheets
Total output capacity	250 sheets
Duplex media weight	60 - 120 g/m²
Paper tray media types	Envelopes
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Product color	Black, Grey
Market positioning	Business
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint
Standard interfaces	Ethernet, USB 2.0
Memory slots	1
Internal memory	512 MB
Compatible memory cards	SD
Sound power level (standby)	53 dB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	54.7 W
Power consumption (average operating)	680 W

Weight and Dimensions

Depth	455 mm
Width	475 mm
Height	575 mm
Weight	21500 g
