Utax P-4035 MFP

2NM/2NX/2NY/2NZ/2P0/2P6
2-2-44
39. [50/60 ppm model only]
Release two hooks and then remove
the wire cover.
Pull the connector of lift sensor out.

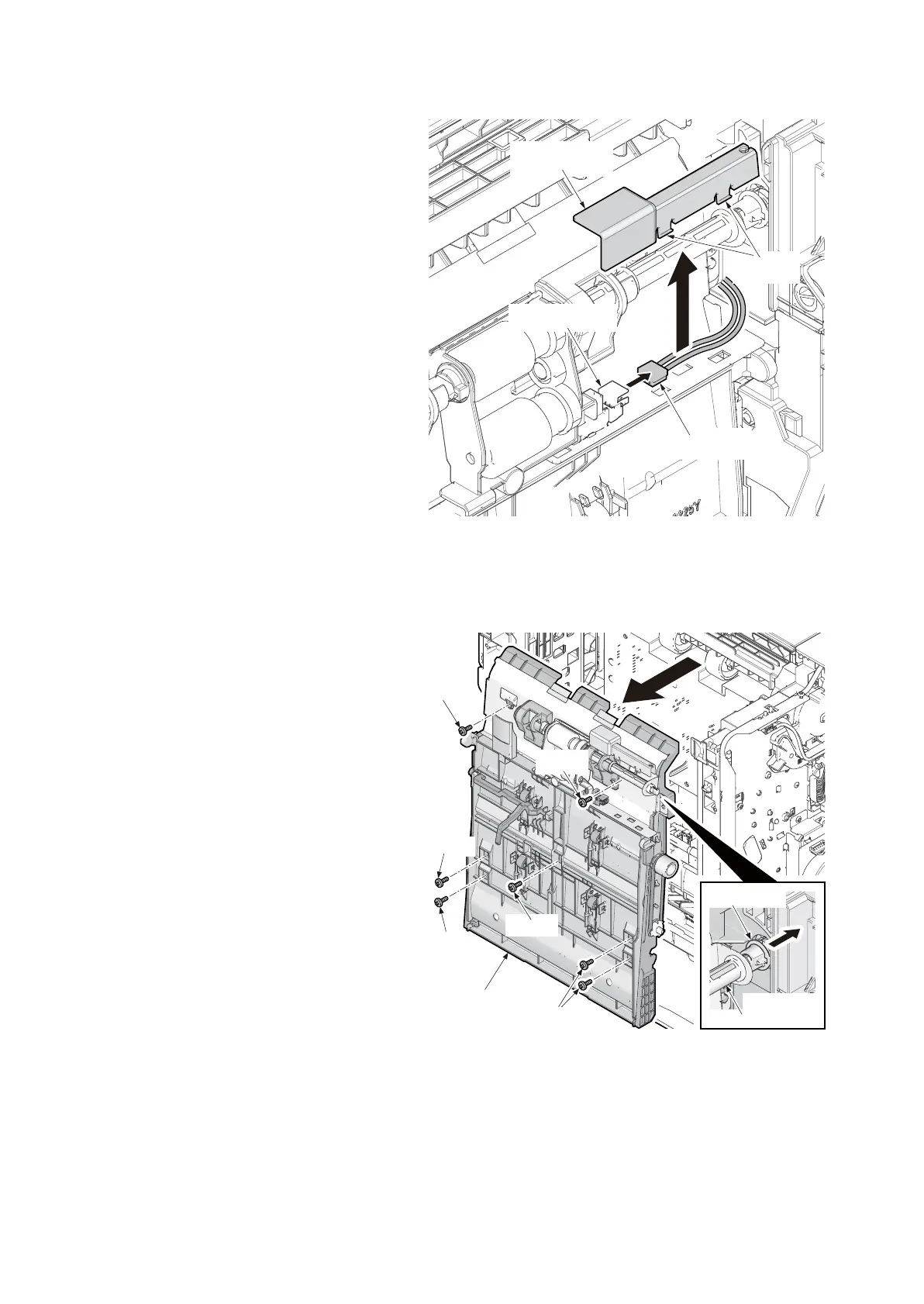

Figure 2-2-53
40. Remove seven screws.
41. Extract the feed roller axis by pushing
the joint part.
42. Remove the duplex assembly to the
front.
Figure 2-2-54
Lift sensor
Hooks
Connector
Wire cover
Screws
Screw
Duplex assembly
Screw
Screw
Screw
Screw
Paper feed
roller axis
Joint part
