Utax P-4035 MFP Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-3-32
U070 Adj DP Motor
Description
Adjusts the DP original scanning speed.
Purpose
Make the adjustment if the magnification is incorrect in the auxiliary scanning direction when the
DP is used.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select [Convey Speed].
Display Description
Setting
range
Initial
setting
Change in
value per step
Convey Speed
Sub scanning direction. (Front) -25 to 25 0 0.1 %
6. Change the setting value using the cursor right/left keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the value makes the image longer, while decreasing the value makes the
image?shorter.

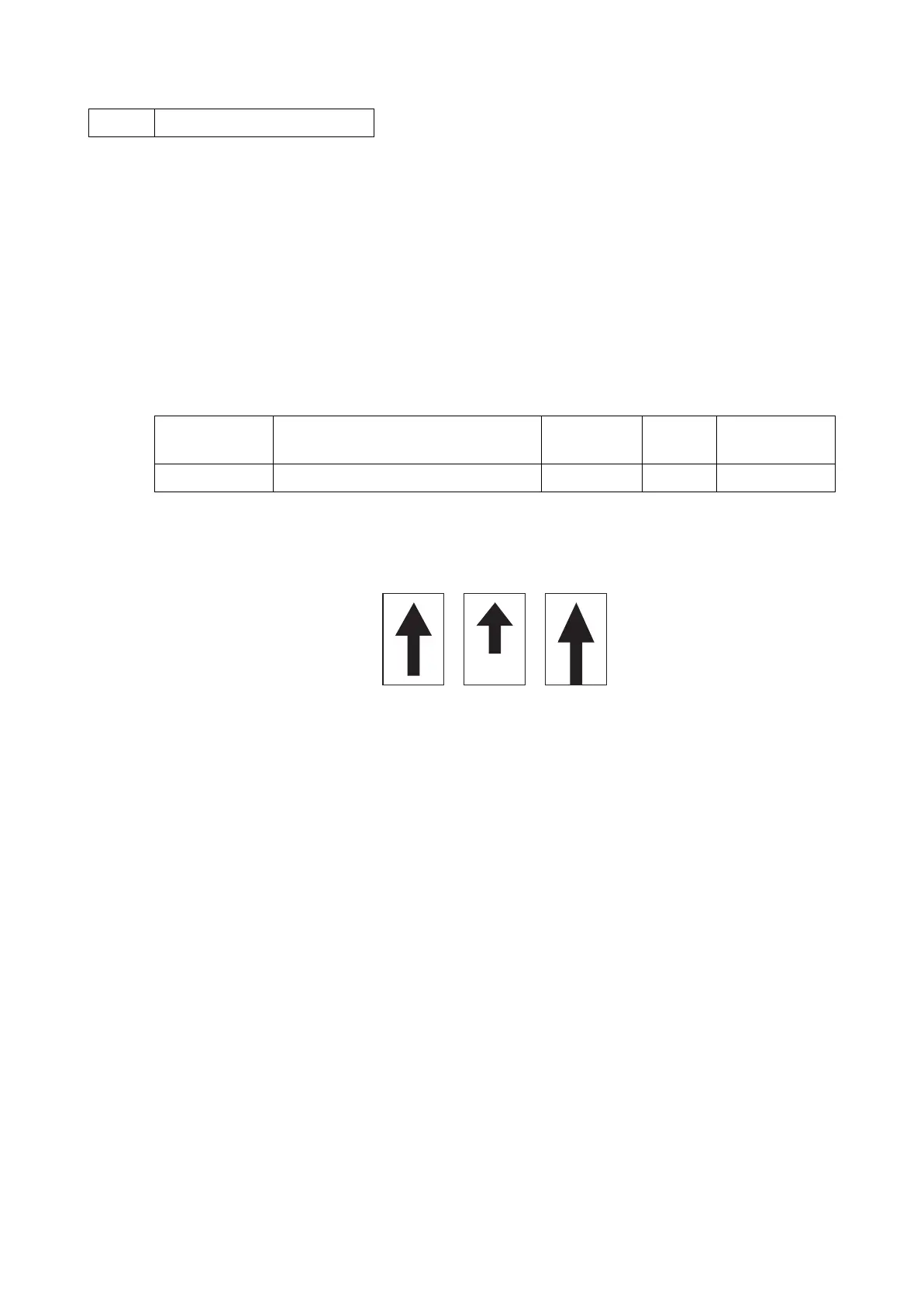

Figure 1-3-9
7. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Original Copy
example 1
Copy
example 2

Utax P-4035 MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, File, Image, USB
Grayscale levels	256
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Faxing	Mono faxing
Fax memory	8 MB
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax resolution (black)	200 x 100 DPI
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black
Maximum duty cycle	- pages per month
Total input capacity	500 sheets
Total output capacity	250 sheets
Duplex media weight	60 - 120 g/m²
Paper tray media types	Envelopes
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Product color	Black, Grey
Market positioning	Business
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint
Standard interfaces	Ethernet, USB 2.0
Memory slots	1
Internal memory	512 MB
Compatible memory cards	SD
Sound power level (standby)	53 dB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	54.7 W
Power consumption (average operating)	680 W

Weight and Dimensions

Depth	455 mm
Width	475 mm
Height	575 mm
Weight	21500 g
