ENGLISH
- 36 -
10 - ACCESSING THE CONTROL UNIT
SETTINGS

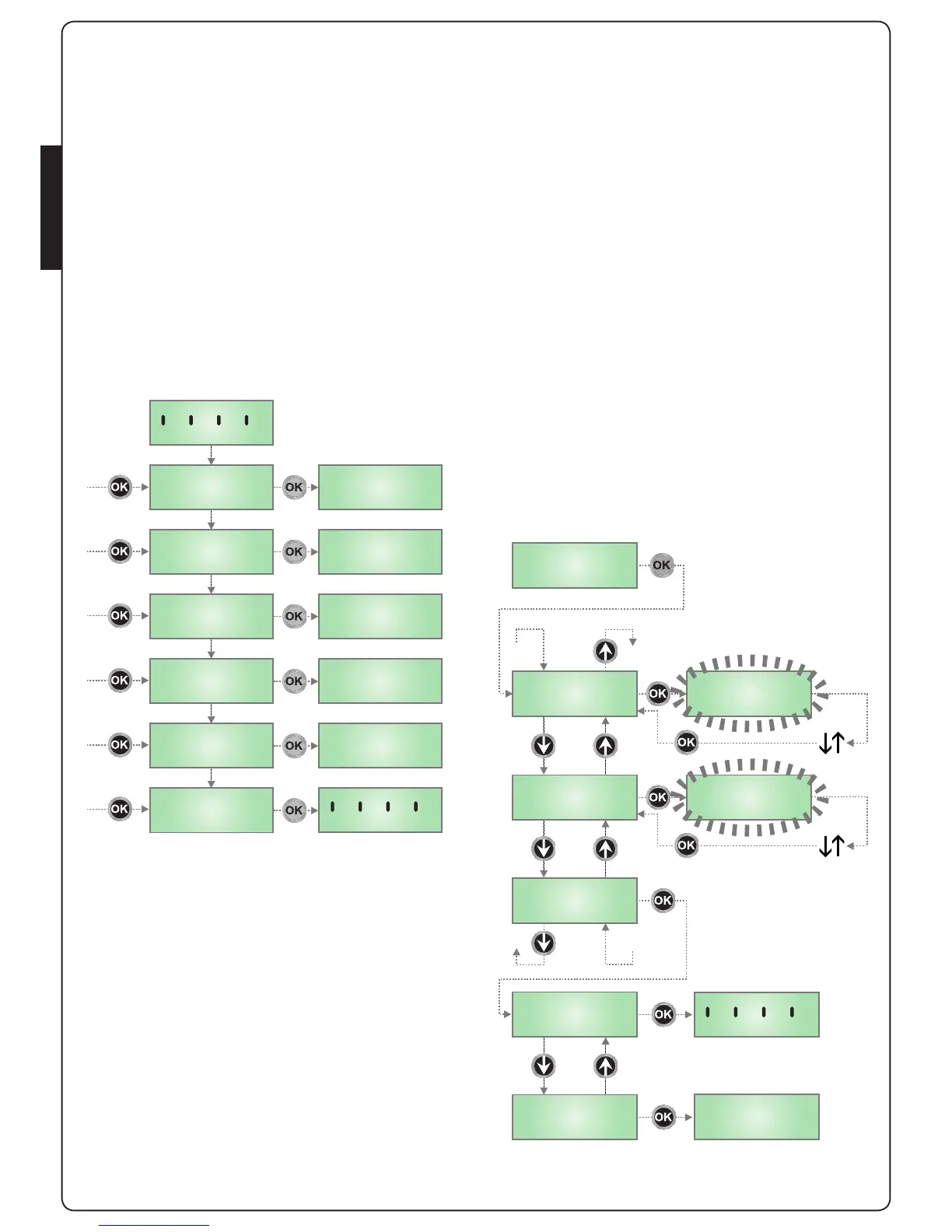

1. Press and hold the OK key until the display shows the menu
desired
-FC Programming the limit switches (chapter 10.2)
-SEn Automatic sensitivity adjustment (chapter 10.3)
-PrG Programming the control unit (chapter 12)
-Cnt Cycle counter (chapter 11)
-dEF Loading the default parameters (chapter 8)
2. Release the OK key: the display will show the first item in the
sub-menu
m WARNING: in case no operation is carried out for
more than one minute, the control unit exits from the
programming mode without saving any of your setups and
changes, which will get lost.
-FC fC A
-SEn SEnS
-PrG En.SA
- - - -
2’’
4’’
6’’
-Cnt tot
8’’
-dEF ESC
10’
12’
10.1 - PROGRAMMING THE LIMIT
SWITCHES
1. Press and hold the OK button until the display shows -FC
2. Release the OK button: the display shows FC A
(opening limit switch)
3. Press OK: FC A flashes
4. Press and hold the key i or h and move the gate until
reaching the position of the opening limit switch
5. Press OK to confirm: the display shows FC A
6. Press the i key: the display shows FC C (closing limit switch)
7. Press OK: FC C flashes
8. Press and hold the key i or h and move the gate until
reaching the position of the closing limit switch
9. Press OK to confirm: the display shows FC C
10. Press the i key : the display shows SAvE
11. Press OK: the display shows no
12. Press the i key: the display shows Si
13. Press OK: the limit switches are stored and the display shows
the menu for programming the SEnS sensitivity reported on
the next page
NOTE: we recommend you to configure both limit switches
in a single programming session
FC C FC C
FC A FC A
SAvE
no
Si
-FC
SEnS
