Vaillant ecoTEC SERIES Instructions For Installation And Servicing

11Instructions for installation and servicing ecoTEC 839592_12
1
2
3
4
7
8
6
5

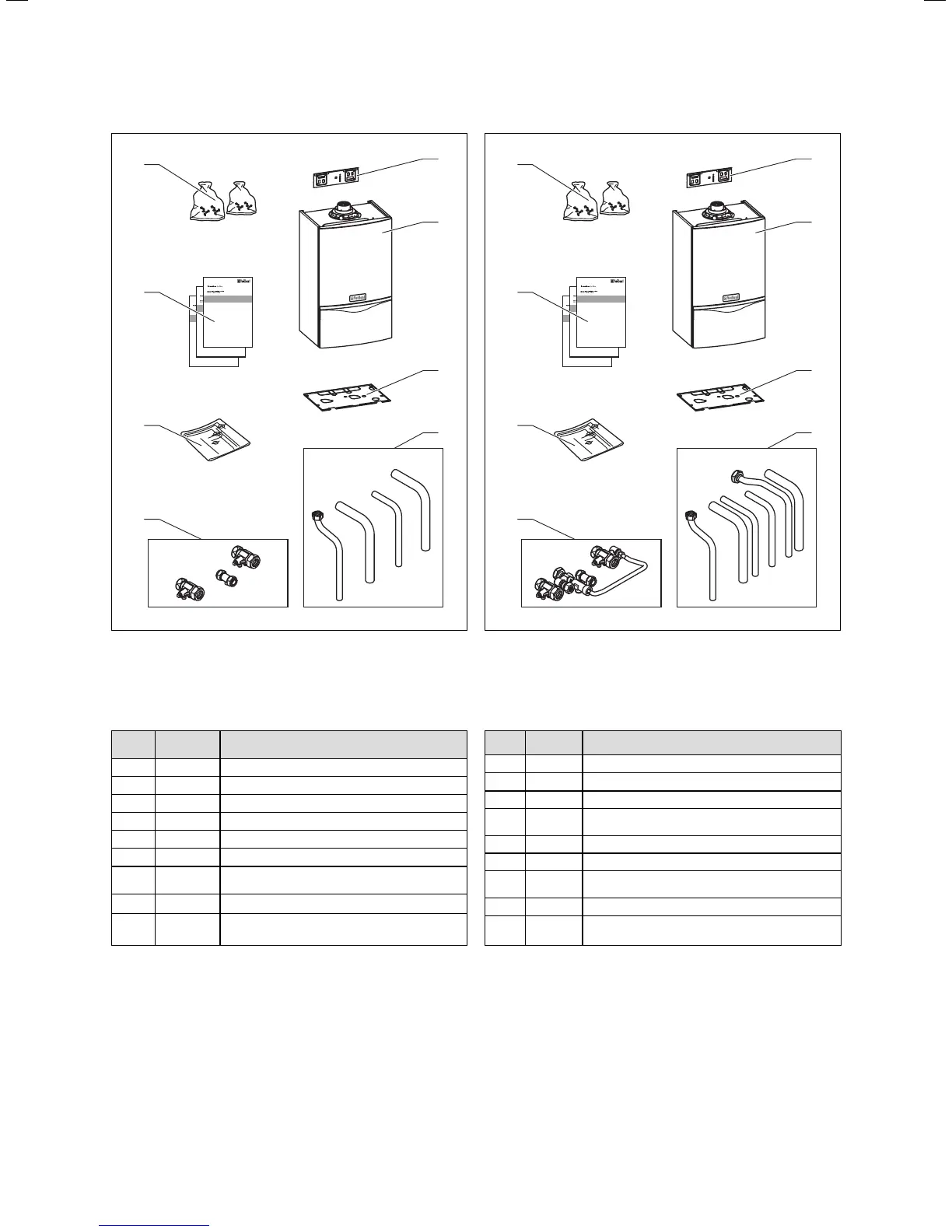

Fig. 3.1 Contents included with delivery of ecoTEC plus
system boilers
DO NOT remove the boiler from the polystyrene base at
this stage.
Item Quantity Description
1 1 Hanging bracket
2 1 Boiler
3 1 Bottom cover
4 4 Connecting pipes (gas, heating, safety valve)
5 3 Isolating valves
6 1 Template
73
User, installation and service and flue instal-
lation manuals
8 2 Installation and connection accessories
2
For LPG appliances, extra: 1 sticker each for
tank and ventilation (above Fig.)
Table 3.1 Contents included with delivery of ecoTEC plus
system boilers
1
2
3
4
6
5
7
8
Fig. 3.2 Contents included with delivery of ecoTEC plus
combination boilers
DO NOT remove the boiler from the polystyrene base at
this stage.
Item Quantity Description
1 1 Hanging bracket
2 1 Boiler
3 1 Bottom cover
46
Connecting pipes (gas, heating, water, safety
valve)
5 4 Isolating valves and filling loop
6 1 Template
73
User, installation and service and flue installa-
tion manuals
8 2 Installation and connection accessories
2
For LPG appliances, extra: 1 sticker each for
tank and ventilation (above Fig.)
Table 3.2 Contents included with delivery of ecoTEC plus
combination boilers
General requirements 3

Vaillant ecoTEC SERIES Specifications

General

Model	ecoTEC SERIES
ErP Rating	A
Mounting	Wall-mounted
Dimensions	Varies by model
Weight	Varies by model
Fuel Type	Natural gas or LPG
NOx Emissions	Class 5 (less than 56 mg/kWh)
Output Range	35kW
