7.2.2 Cleaning the integral condensation heat
exchanger
Caution!
Protect the electronics box against sprayed
water.
3
4
1
2

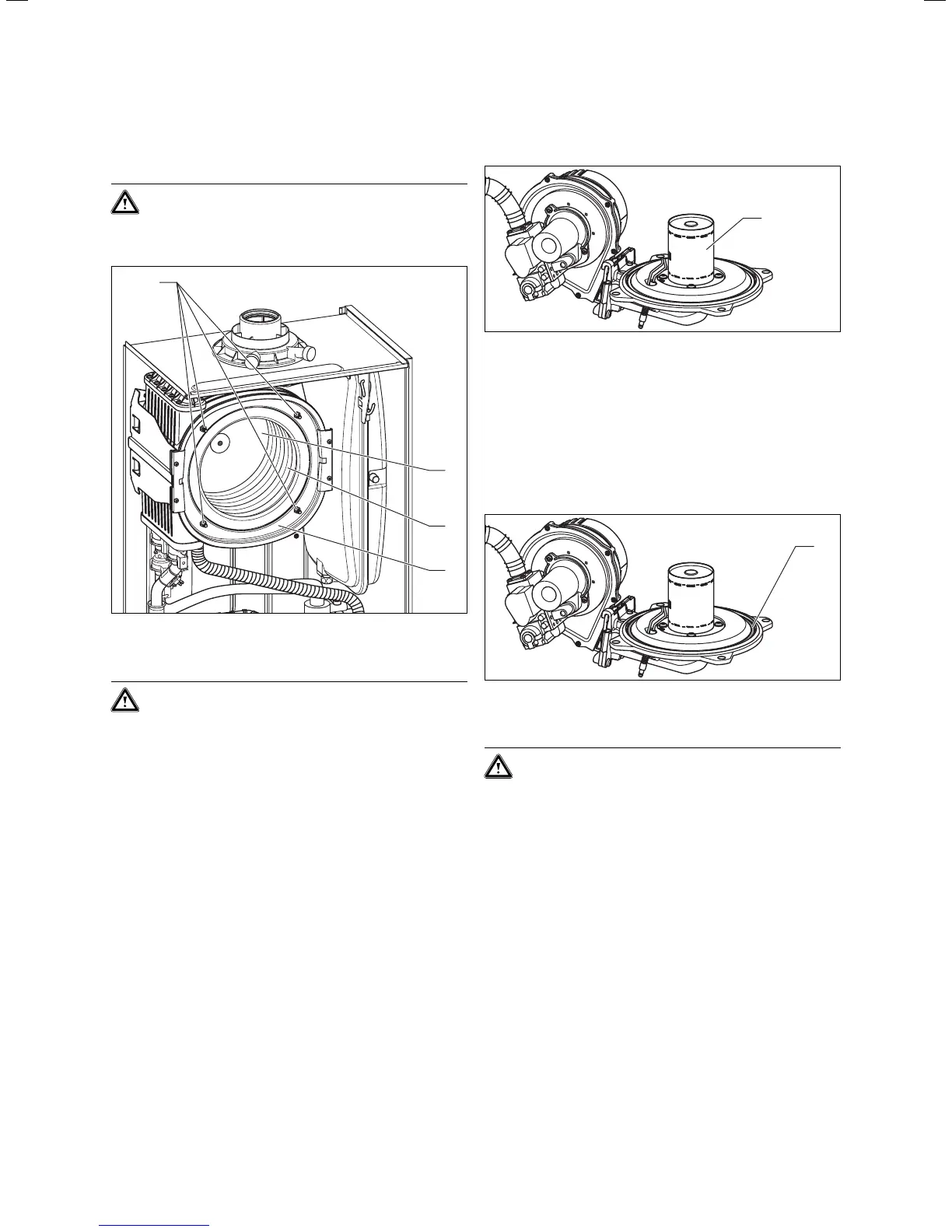

Fig. 7.4 Cleaning the integral condensation heat exchanger
• Dismantle the burner module as described under 7.2.1.
Caution!
Risk of damaging the primary heat exchanger!
• Do not attempt to loosen nor retighten the
four screws (1).
With the burner and fan assembly removed it is now
possible to inspect the main heat exchanger (4).
• Remove any loose deposits from the heating spirals
(3) using a soft brush and jet of water (ensure that
water is kept away from all electrical components.
Any water used to clean the main heat exchanger will
drain through the condensate trap). Avoid pointing
the water jet directly at the insulating surface (2) on
the back of the heat exchanger.
If required the heat exchanger can be cleaned using
regular vinegar.
7.2.3 Checking the burner
1
Fig. 7.5 Checking burner
The burner (1) is maintenance-free and needs no cleaning.
• Check the burner surface for damage, replace the
burner if necessary.
• After checking/replacing the burner, re-assemble the
burner module in the boiler as described in Section
7.2.4.
7.2.4 Refitting the burner module
1
Fig. 7.6 Replacing the burner door seal
• Insert a new seal (1) in the burner door.
Caution!
The burner door seal (1) and the self-locking
nuts on the burner module must be replaced
each time the module is removed (for example
during maintenance, see Table 7.1).
If the burner flange insulation on the burner
module shows any signs of damage other small
cracks it must also be replaced.
