6 Functional checks
(commissioning part II)
6.1 Functional checks
6.1.1 Procedure
After installing and checking the gas supply pressure,
perform a function check before commissioning the
appliance and handing over to the user.
• Commission the appliance according to the relevant
operating manual.
• Check the gas supply pipe, exhaust system, heating
system and the hot water lines (combination boilers
only) for leaks.
• Check that the flue system has been installed properly
according to the flue system assembly manual.
• Check for ignition and an even flame on the burner.
• Perform a function check on the heating system (see
section 6.1.2) and the water heating (combination
boilers only, see section 6.1.3).
• Hand over the appliance to the user (see section 6.2).

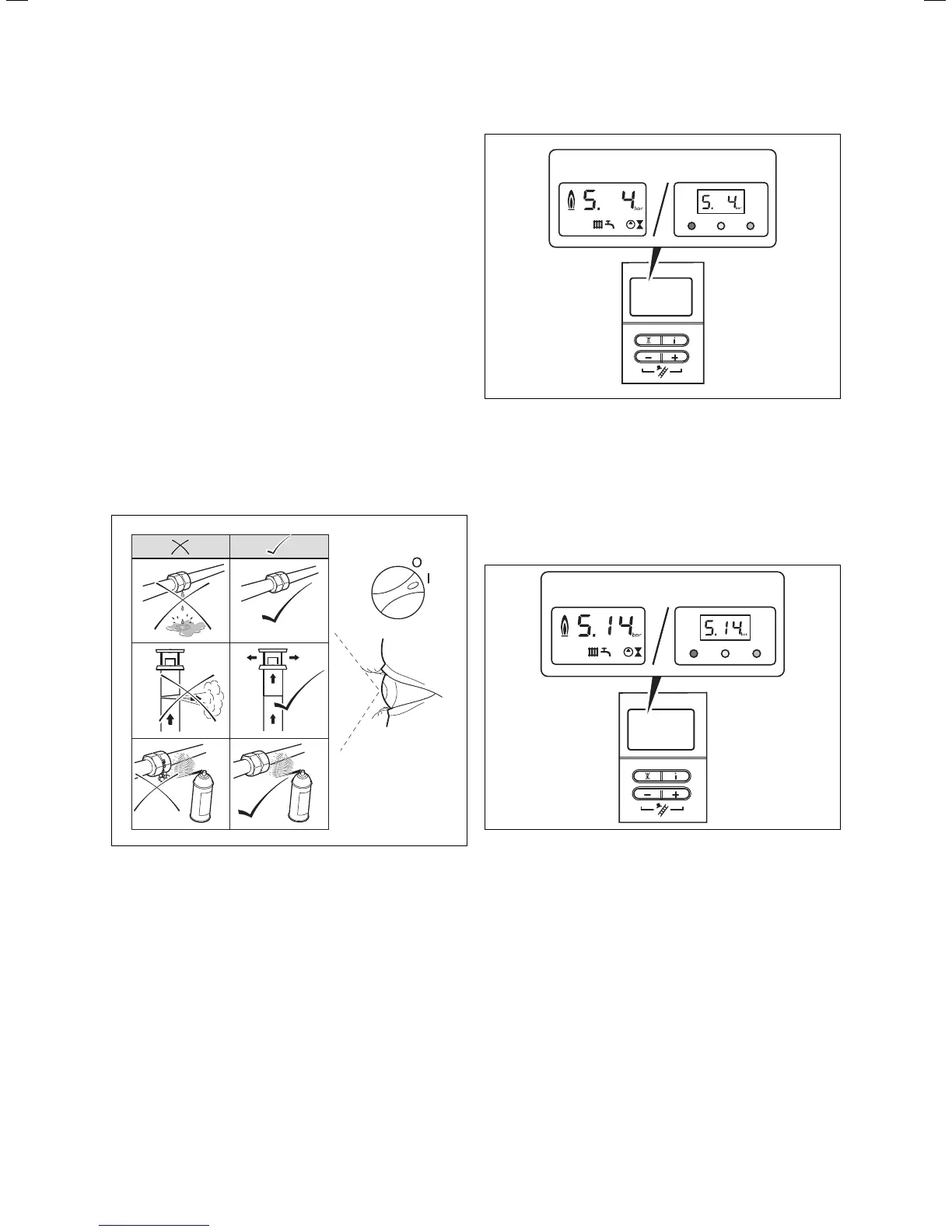

Fig. 6.1 Function check
6.1.2 Heating
• Switch on the appliance.
• Make sure that there is a heating demand.
• Press “i” to activate the status indicator.
As soon as a heat demand is received, the appliance
runs through the status indicators “S. 1” to “S. 3”, until
the appliance is running correctly in normal mode and
the display shows “S. 4”.
plus pro
Fig. 6.2 Display indicator during heating mode
6.1.3 Water heating (combination boilers only)
• Switch on the appliance.
• Fully open the hot water tap.
• Press “i” to activate the status indicator.
If the water heating is working correctly, the display
shows the following: “S.14”.
plus pro
Fig. 6.3 Display indicator during water heating
6.1.4 Final flush of the heating system (“hot”)
• Operate the appliance until the appliance and the
heating system are up to temperature.
• Check the heating system for leaks.
• Connect a hose to the drain valve located at the
lowest position of the heating system.
• Shut off the appliance, open the drain valve and all
bleed valves on the radiators and allow the water to
flow out of the heating system and the boiler quickly
and fully.
• Close the drain valve.
• Fill the heating system again with water as described
in Section 5.4.4.
Functional checks (commissioning part II) 6
