PR-23 instrucon manual

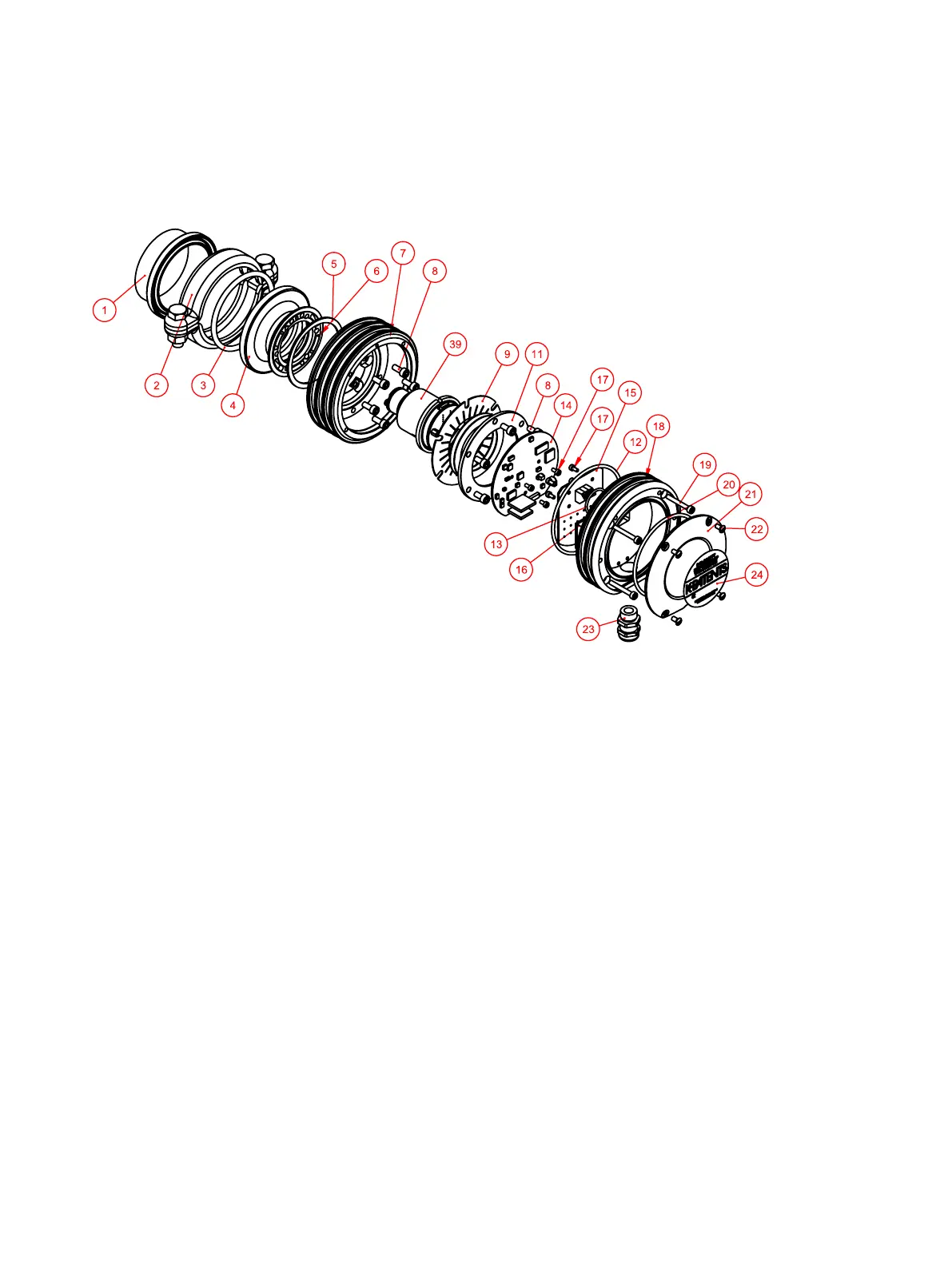

9.5.3 PR-23-GC parts list
Item Pcs. Part No. Descripon
1 1 PR-9280 Sandvik ferrule 76.1
1 1 PR-9283 Sandvik 76.1 reducing ferrule
2 1 PR-9282 Sandvik clamp FCLC-76.1
3 1 PR-9281 Sandvik O-ring FCLG-T-76.1 Teon®
3 1 PR-9291 Sandvik O-ring FCLG-V-76.1 Viton
4 1 PR-9284 PR-23/33-GC head
5 1 PR-10048 68x3 O-ring
6 1 Alignment pin
7 1 PR-10005-SC PR-23 base
8 6 Screw M5x12
6 Locking spacer M5
9 1 PR-9011 Thermal conductor
* 1 PR-9010 Disc spring set
10 2 Disc spring
11 1 Disc spring holder
12 1 PR-10031 O-ring seal 89.5 x 3
13 1 PR-10032 O-ring seal 24 x 2
14 1 PR-10103 Sensor processor card
15 1 PR-10300 Bus terminator card
Item Pcs. Part No. Descripon
16 1 PR-9108 Dryer sachet
17 8 Screw M3x6 DIN 912 A2
18 1 PR-10000-SC PR-23 cover
19 4 Screw M4x30 DIN 912 A4
20 1 PR-10002 O-ring seal 82x3
21 1 PR-10047-SC PR-23 endplate with label and screws
22 4 Screw M4x8 DIN 964 A4
23 1 Cable gland M16x1.5
39 1 PR-10036 H73 compact sensor CORE module
