116

PR-23 instrucon manual

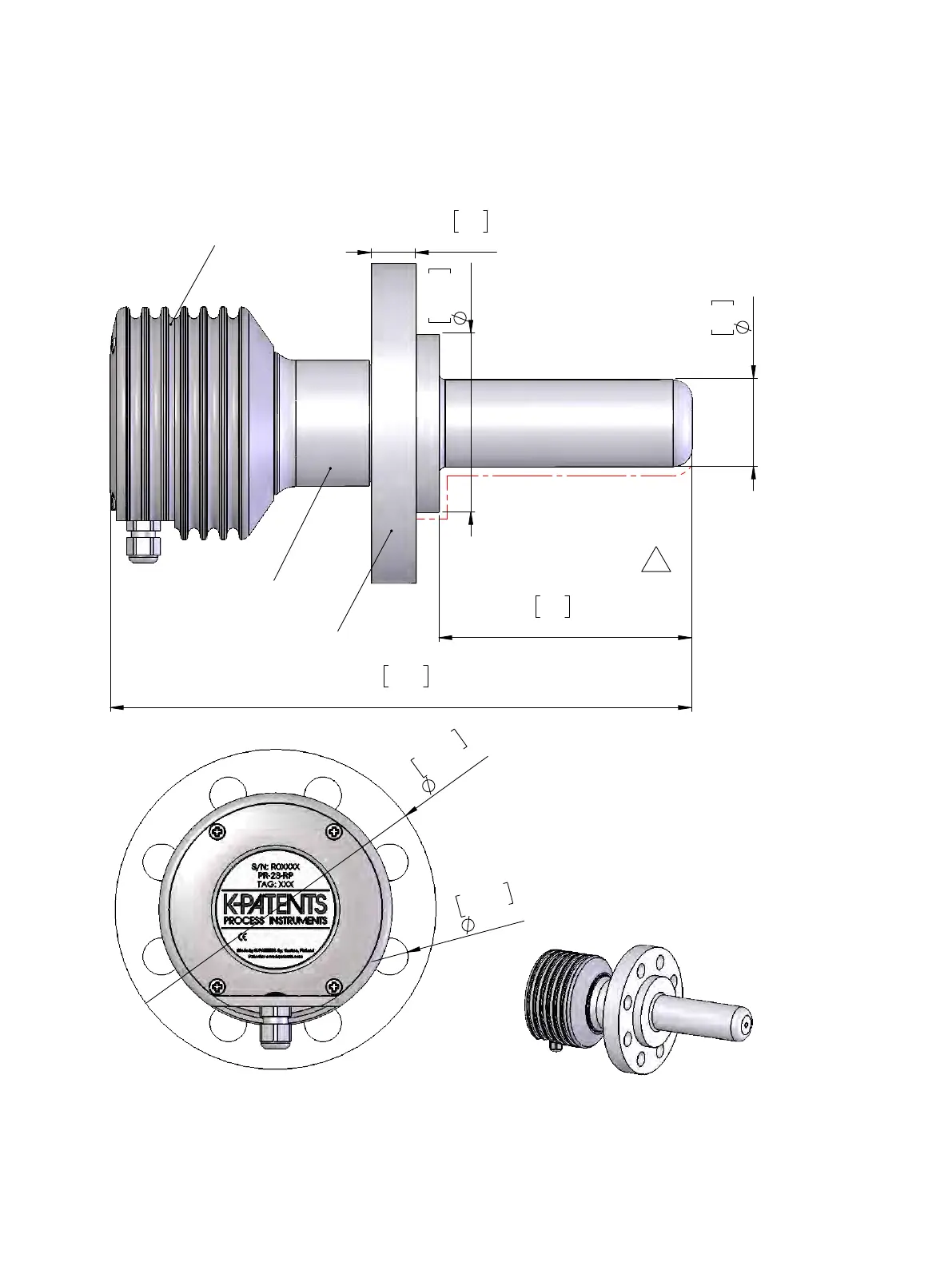

9.7.5 PR-23-RP dimensions

11.8

299

1.8

5.1

130

0.9

3.618

91.90

AISI 316

AISI 316L

2" ANSI 300lbs

AISI 316L Flange

Wetted parts material options

SS = AISI 316L

HA = Alloy 20

HC = Alloy C276

Wetted parts

6.500

165.10

0.752

19.10

Related drawing

REV.

DESCRIPTION

DATE

APPR.

Wetted parts note clarified

26.5.2017

HC material name updated

26.10.2017

Appr.

Drawn

Drawing number

Drawing description

Mass

General tolerances

DIM

24.05.2011 HS

14.01.2011 HS

Revision

2049

Scale

1:2

PR-23-RP-73-M20-...

Material

Figure 9.23 PR-23-RP-73-M20

Default Chapter5
