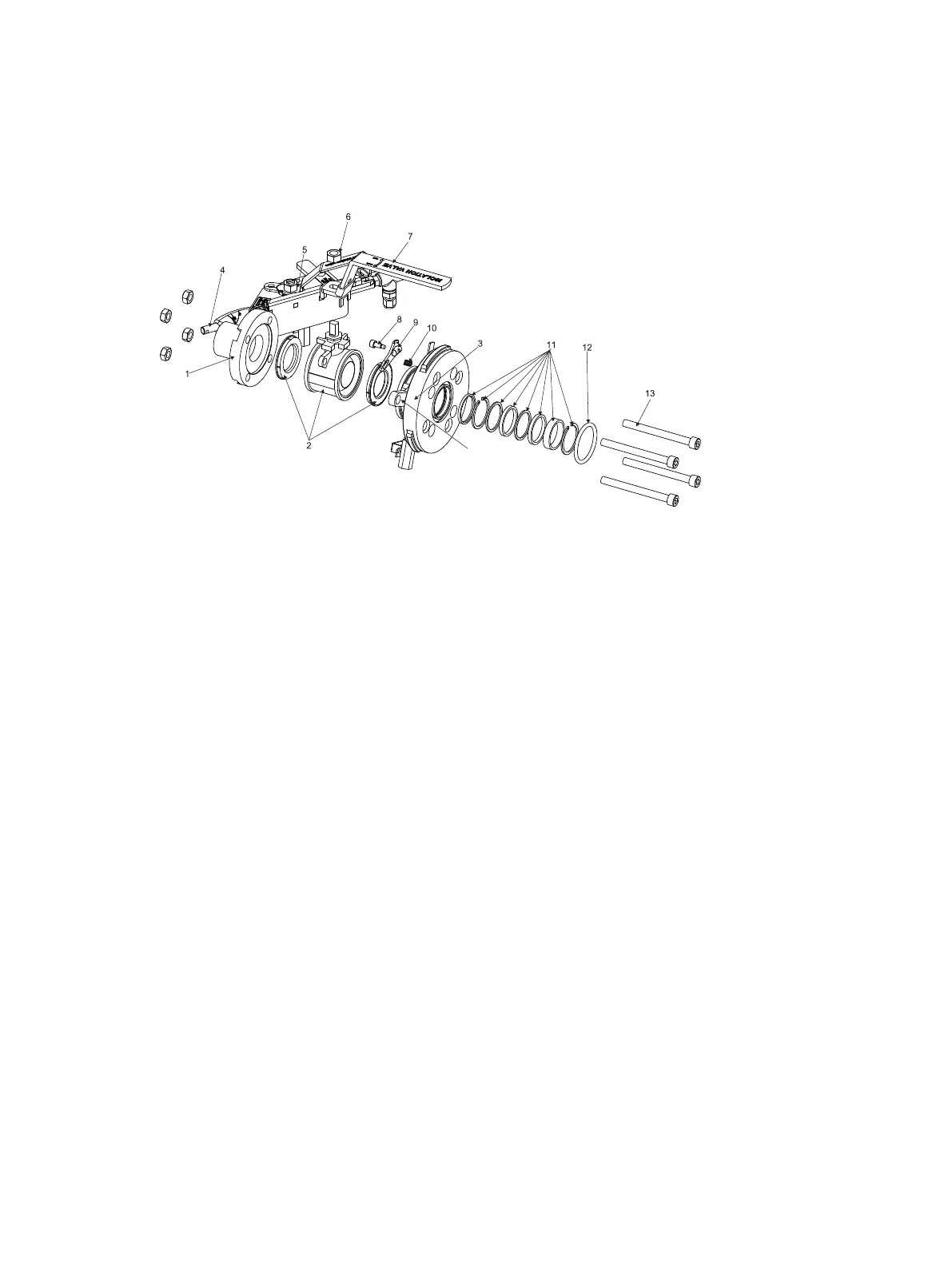

PR-23 instrucon manual
11.3.2 Safe-Drive™ Isolaon valve
14
Item Pcs. Part No. Descripon
1 1 PR-11000 SDI ange and nozzle
weld assembly SAF 2205
* 1 PR-11001 DN 40 ball valve assembly: parts 2, 6, 7
2 1 DN 40 ball valve
* 1 PR-11009 SDI body assembly: parts 3, 8, 9, 10
3 1 SDI body
4 1 PR-11023 SDI steam wash nozzle SN
4 1 PR-11024 SDI high pressure wash nozzle WP
5 1 PR-11025 Nozzle isolaon valve assembly for SDI2
Item Pcs. Part No. Descripon
6 1 M12 nut A4
7 1 SDI isolaon valve handle
8 1 Safety lock screw
9 1 Safety lock
10 1 Spring 1.5x14x20 Lesjöfors no. 2371
11 1 PR-11002 SDI box packing set
12 1 PR-11003 O-ring 50x5 EPDM
13 4 PR-11008 DIN 912 M10 x 110 screw + nut
14 1 PR-11026 Locking bracket for isolaon valve
