11.7 Thermal cover for PR-23-SD
           
             
          
              
 
1. Pass SD shut-off valve handle through the hole provided
2. Wrap cover under and around the SD valve
in the thermal cover, making sure the label is facing
toward you.
body aligning the cutouts with the drain valve.
1
2
3. Close using velcro strips first the single join
on the
4.
left.
Finally the two velcro joins on the right.
3
4

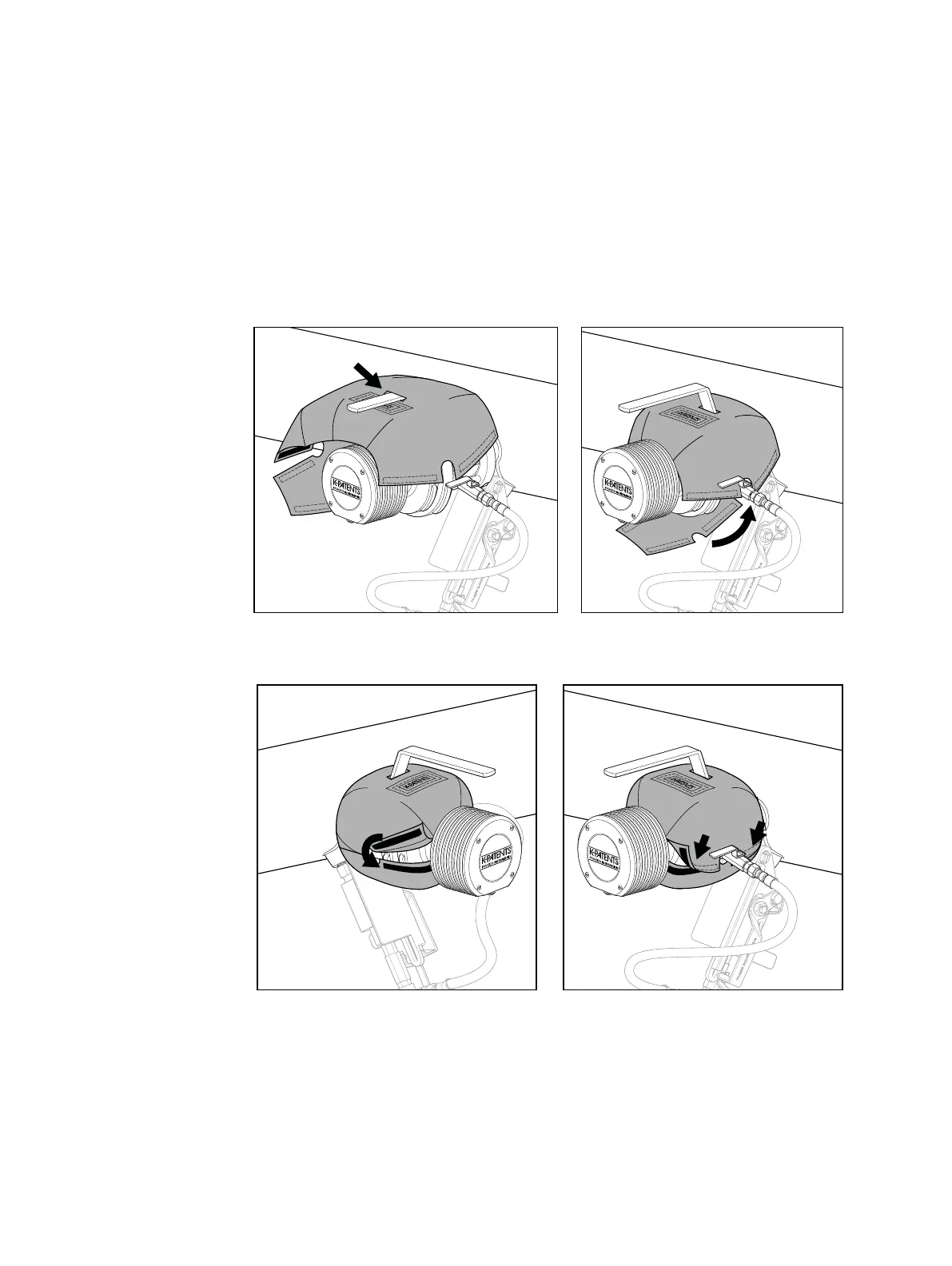

Figure 11.16 Mounng the thermal cover
