104

PR-23 instrucon manual

Use PTFE Teﬂon

tape for all

threaded

connections

Use gasket material

appropriate to

the process media

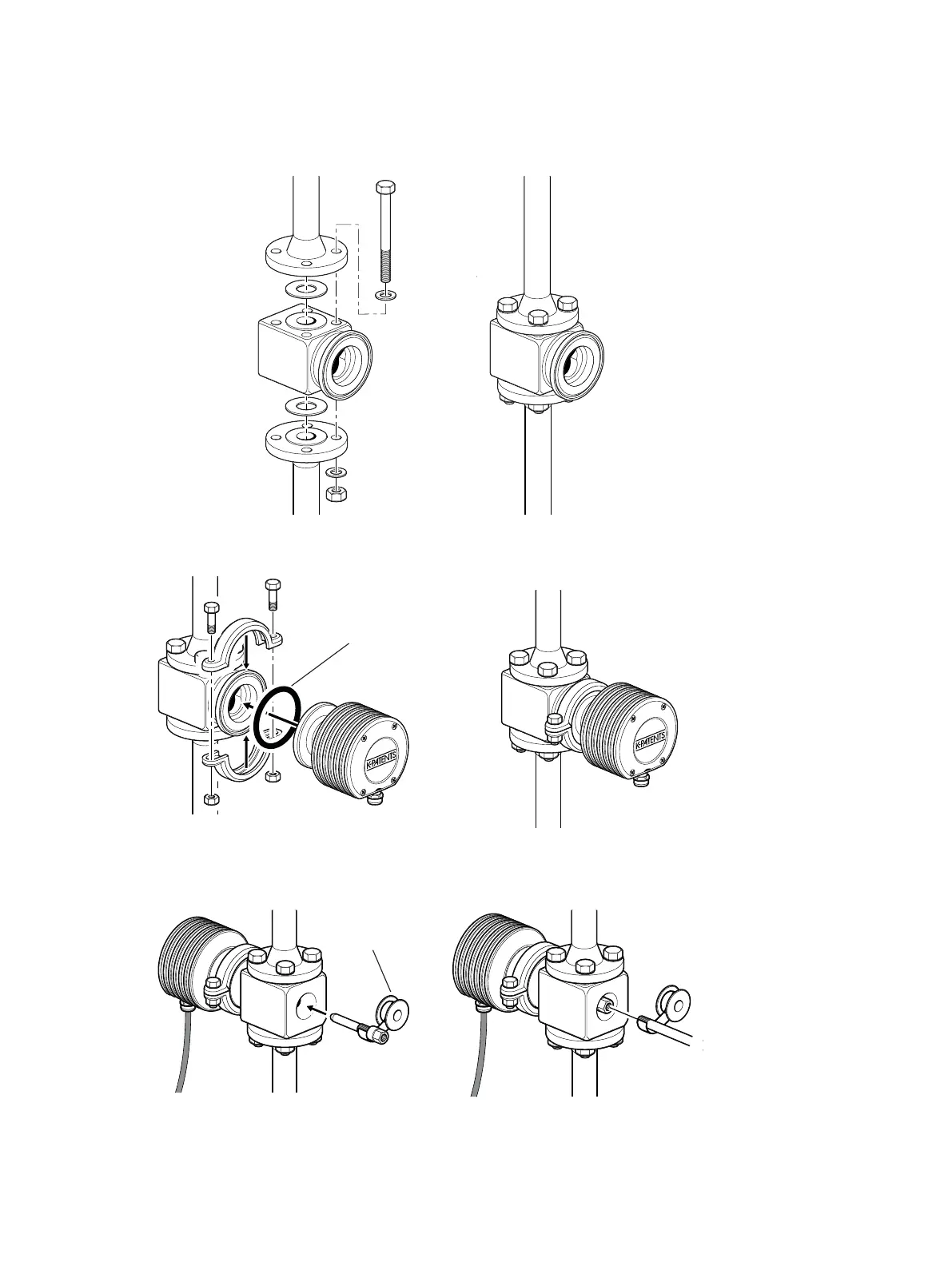

Figure 9.16 Mounng the Wafer ow cell and sensor in a vercal pipe
