9 Sensor specicaons

119

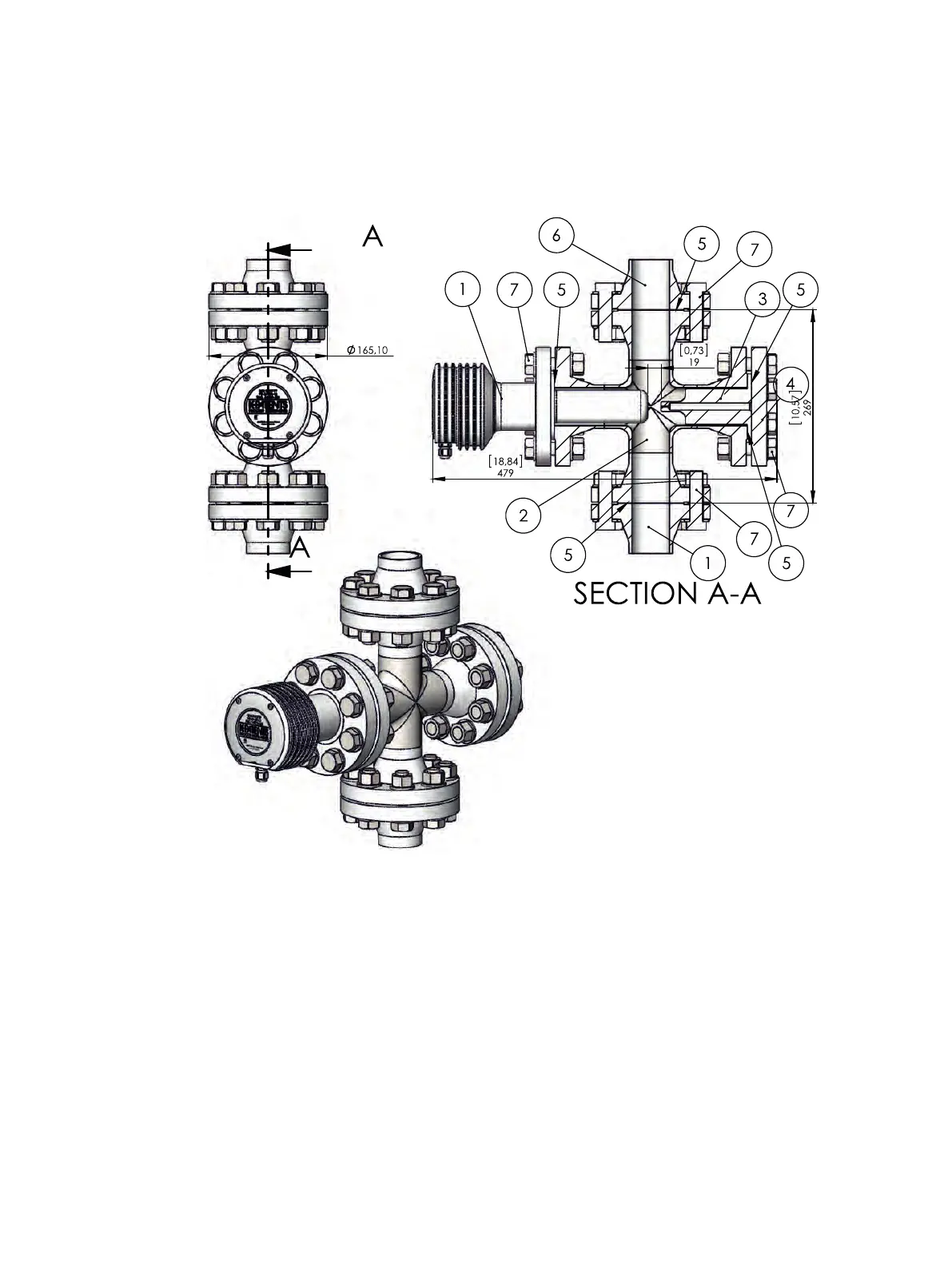

PR-23-RP mounng in 2” line

Item. Descripon Supplied by Pcs.

1 Sensor PR-23-RP-73-M20 K-Patents 1

2 CFC-23-RP-M20-M20-NC-PG/SN/WP K-Patents 1

3 2’’ ANSI 300 Wash nozzle K-Patents 1

4 1’’ ANSI 300 blind ange K-Patents 1

Item. Descripon Supplied by Pcs.

5 2”ange gasket Customer 5

6 2”ANSI 300 Welding neck ange Customer 2

7 Bolt, washer and nut for 2”ange Customer 32

Figure 9.25 CFC-RP-M20-SS/HC/HA-M20-NC-PG/SN/WP owcell
