The printhead is pushed on via two plungers (1). The location of the
right plunger must be set to the width of the label medium used so as
to:
 achieve even print quality across the entire label width,
 prevent wrinkles in the feed path of the transfer ribbon,
 prevent premature wearing of the print roller and printhead.

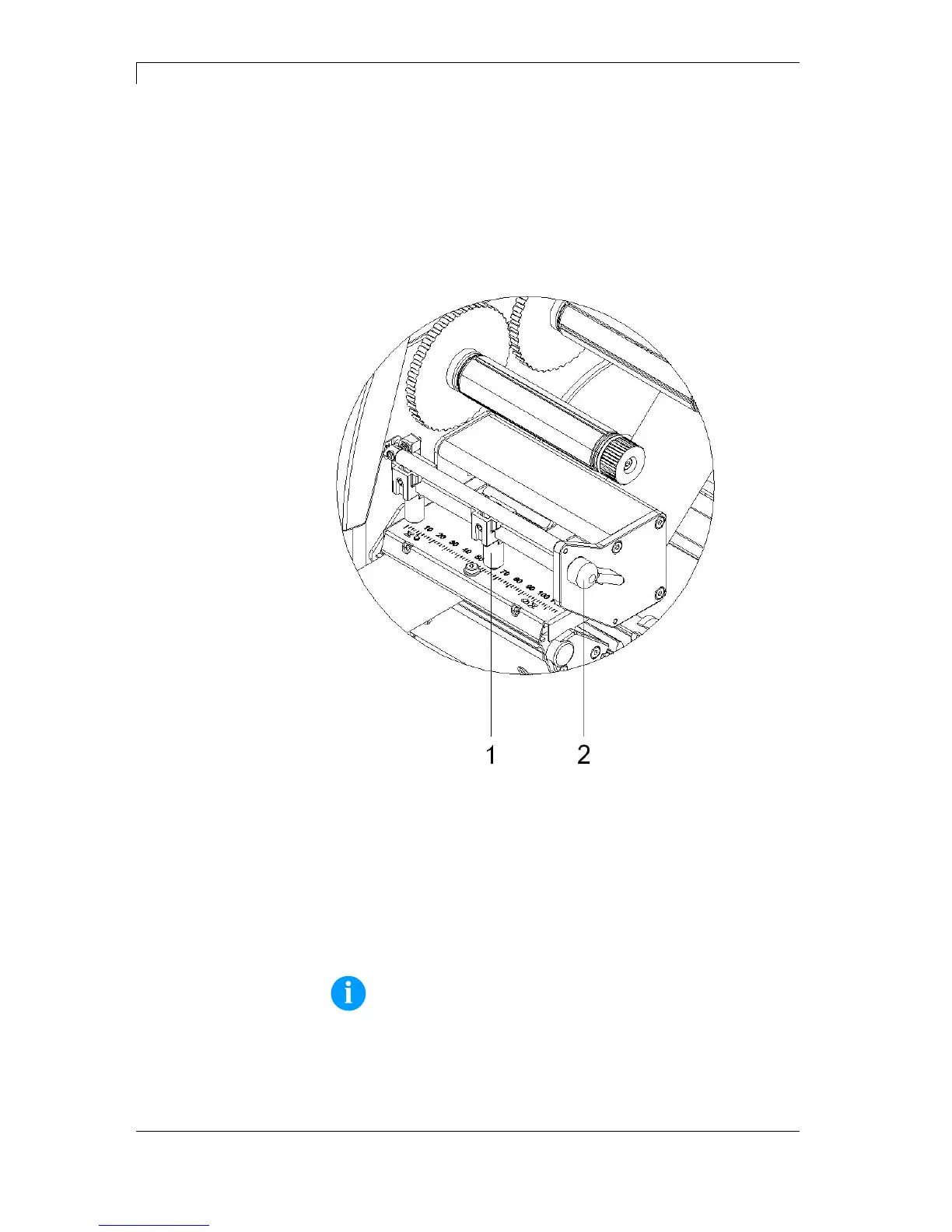

Figure 14
1. Turn lever (2) clockwise to lock the printhead.
2. Position the right plunger (1) onto the centre of the used label
material.
3. During the adjustment, place the right plunger (1) in direction of
the outer label edge.
Take care of the quality of the printout.
NOTICE!
Position the right plunger (1) as far as possible at the label
centre.
Position the right plunger (1) only as far as necessary to the
outer label edge.
Setting the head
locking system
