Compa II series Maintenance and cleaning
07.15 Operating manual 83
9.4 Cleaning the label photocell
CAUTION!
Label photocell can be damaged!
Do not use sharp or hard objects or solvents to clean
the label photocell.
The label photocell can become dirtied with paper dust and this can
adversely affect label detection.

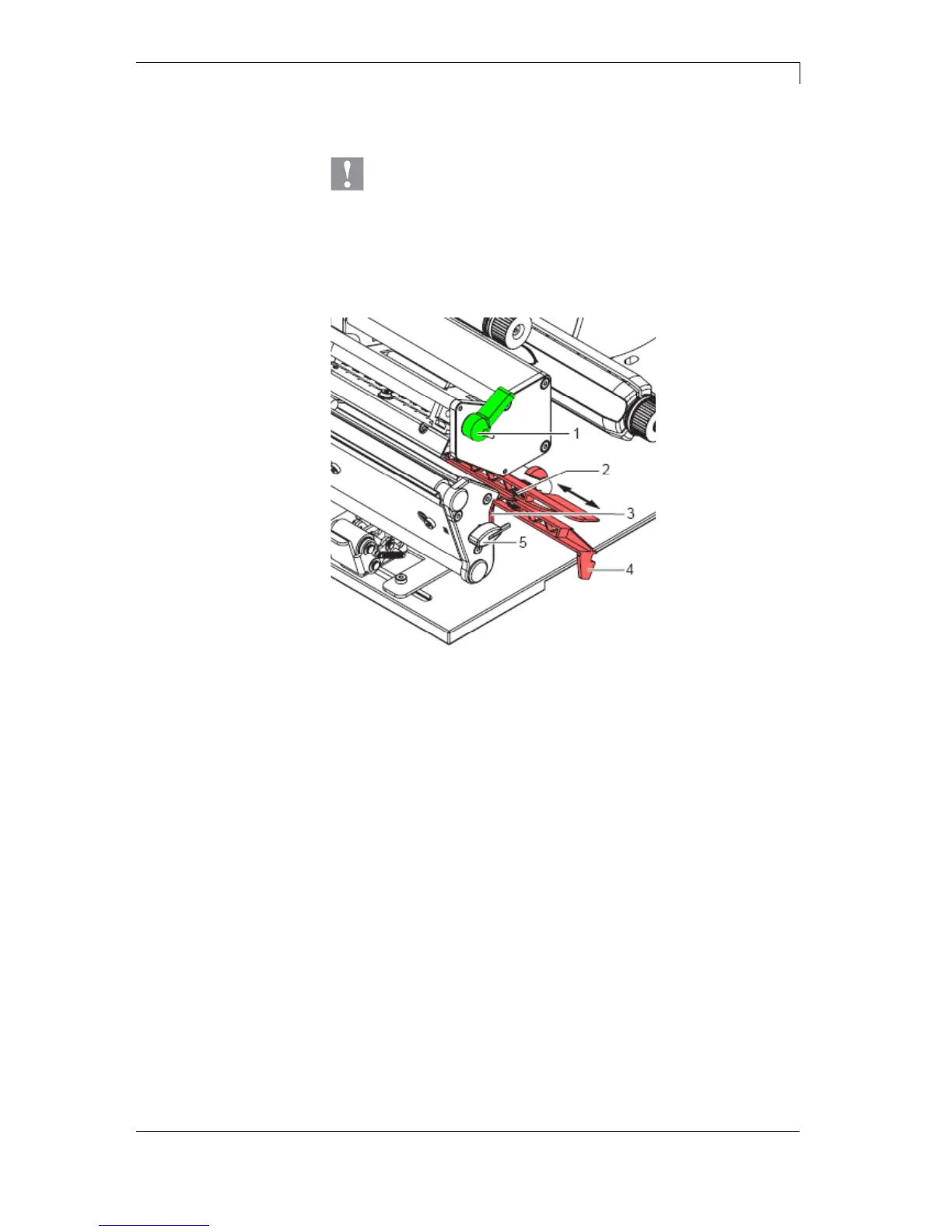

Figure 20
1. Turn lever (1) counter clockwise to lift up the printhead.
2. Remove labels and transfer ribbon from the label printer.
3. Remove hexagonal wrench (5) from its retainer.
4. Press the latch (3) and slowly pull label photocell outwards via the
tab (4). Ensure that the label sensor cable is not tensioned by this.
5. Clean label sensor and sensor units (2) with brush or cotton swab
soaked in pure alcohol.
6. Push label photocell back via tab (3) and set it (see section
Setting label photocell on page 30).
7. Push hexagonal wrench (5) into retainer.
8. Reload labels and transfer ribbon (see chapter 5 Loading media
on page 29).
Compa II 103 T, 104,
106 and 108 T
