5.3 Loading fanfold labels

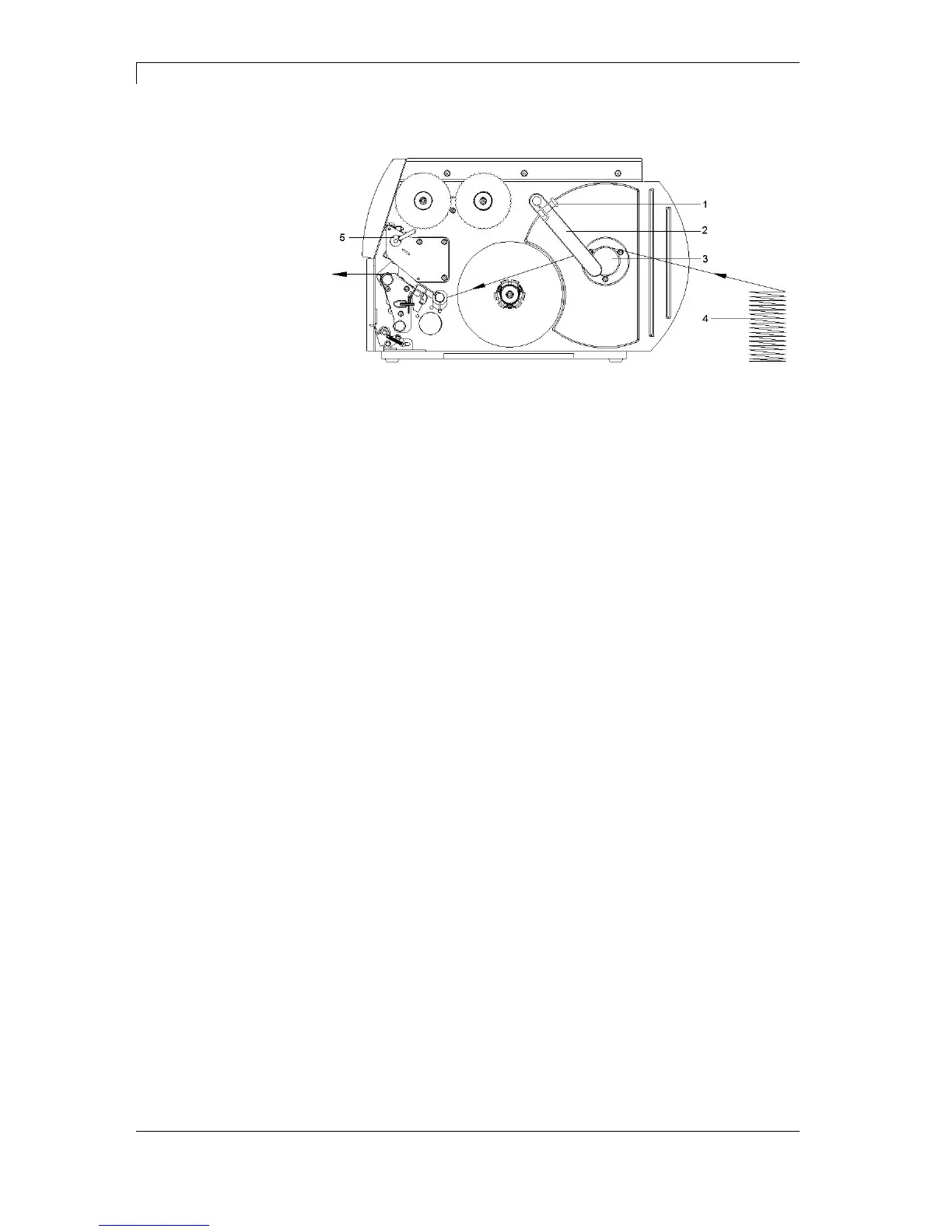

Figure 16
1. Loosen knurled screw (1) and slide guiding (2) outward
completely and swivel it downward past the roll retainer (3).
2. If core adapters are mounted on the roll retainer (3), remove core
adapters.
3. Position label stack (4) behind the label printer. Ensure that the
labels on the strip are visible from above.
4. Guide label strip to print unit via the roll retainer (3).
5. Push guiding (2) against the label strip, swivel it upwards against
the roll retainer and tighten knurled knob (1).
6. Guide label strip through the print unit (see section Inserting label
material into print unit, page 30).
7. Set label photocell (see section on page 30).
8. Set head locking system (see section on page 34).
9. Turn lever (5) clockwise to lock the printhead.
