Options Compa II series
62 Operating manual 07.15
After selection of desired Dispenser I/O operating mode, press key
to select additional parameters.

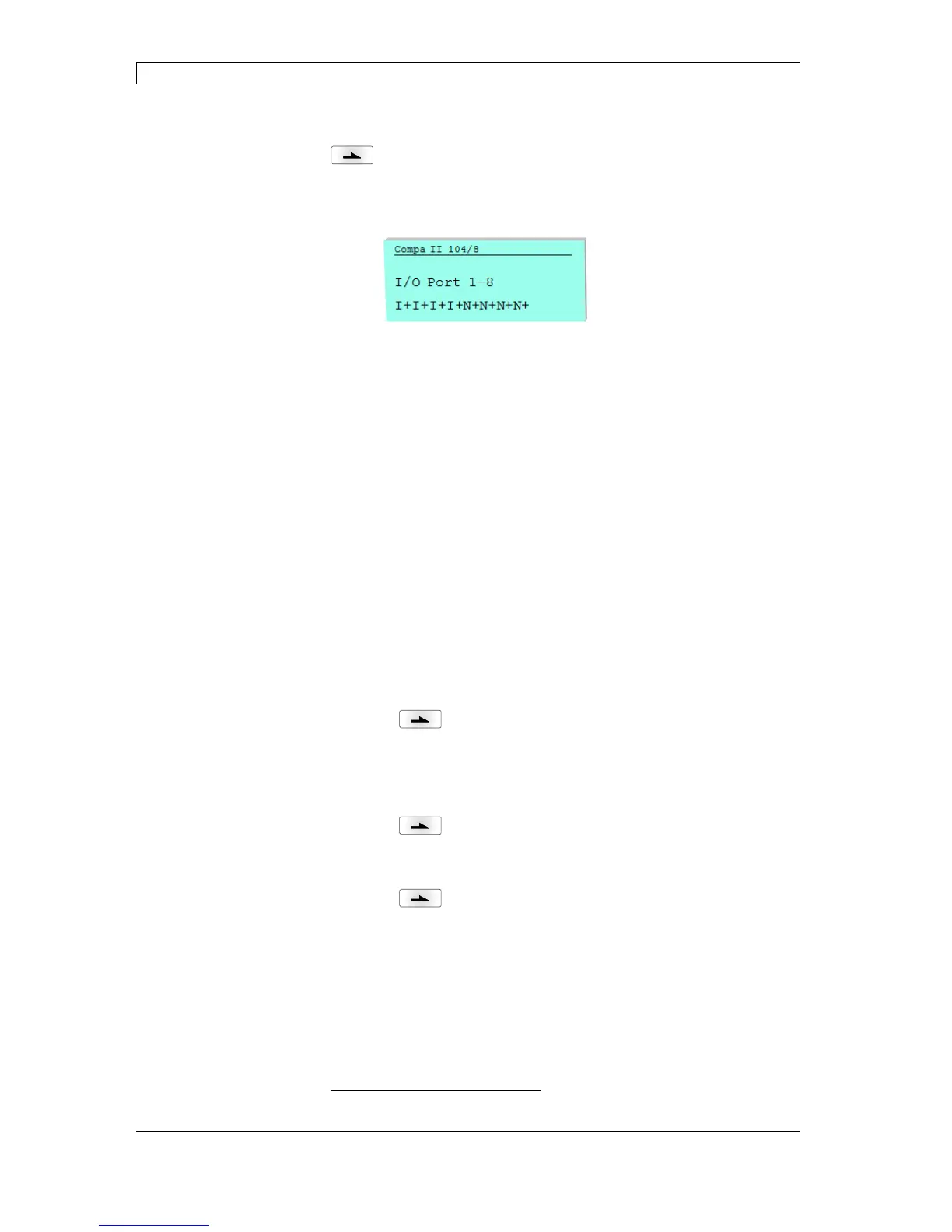

Definition of port functions:
2 sign show the current setting for each port.
Port 1 2 3 4 5 6 7 8
because of space reasons, the port number cannot be indicated)
The first sign specifies the following:
I = Port operates as Input
O = Port operates as Output
N = Port has no function (not defined)
These settings cannot be modified.
The second sign specifies the following:
+ = Active signal level is 'high' (1)
− = Active signal level is 'low' (0)
x = Port is deactivated
& = Function is executed at each change of the signal level
s = Status can be enquired/influenced
by interface
= The printer-internal function is deactivated.
The modification of the signal level is only taken into consideration for
the operating modes I/O static, I/O dynamic, I/O static continuous and
I/O dynamic continuous.
Press key
to arrive the next parameter.
Indication of debounce time of the dispenser input. The setting range
of the debounce time is between 0 and 100 ms.
In case the start signal is not clear then you can debounce the input
by means of this menu item.
Press key
to arrive the next parameter.
Indication in time per second of the delay for the start signal.
Value range: 0.00 … 9.99.
Press key
to arrive the next parameter.
Indication of interface at which the modifications of input signals (I/O)
are sent.
*
in connection with Netstar PLUS
Additional parameters
for Dispenser I/O
I/O Port 1-8 and
I/O Port 9-16
Debounce
Start signal delay
I/O protocol
