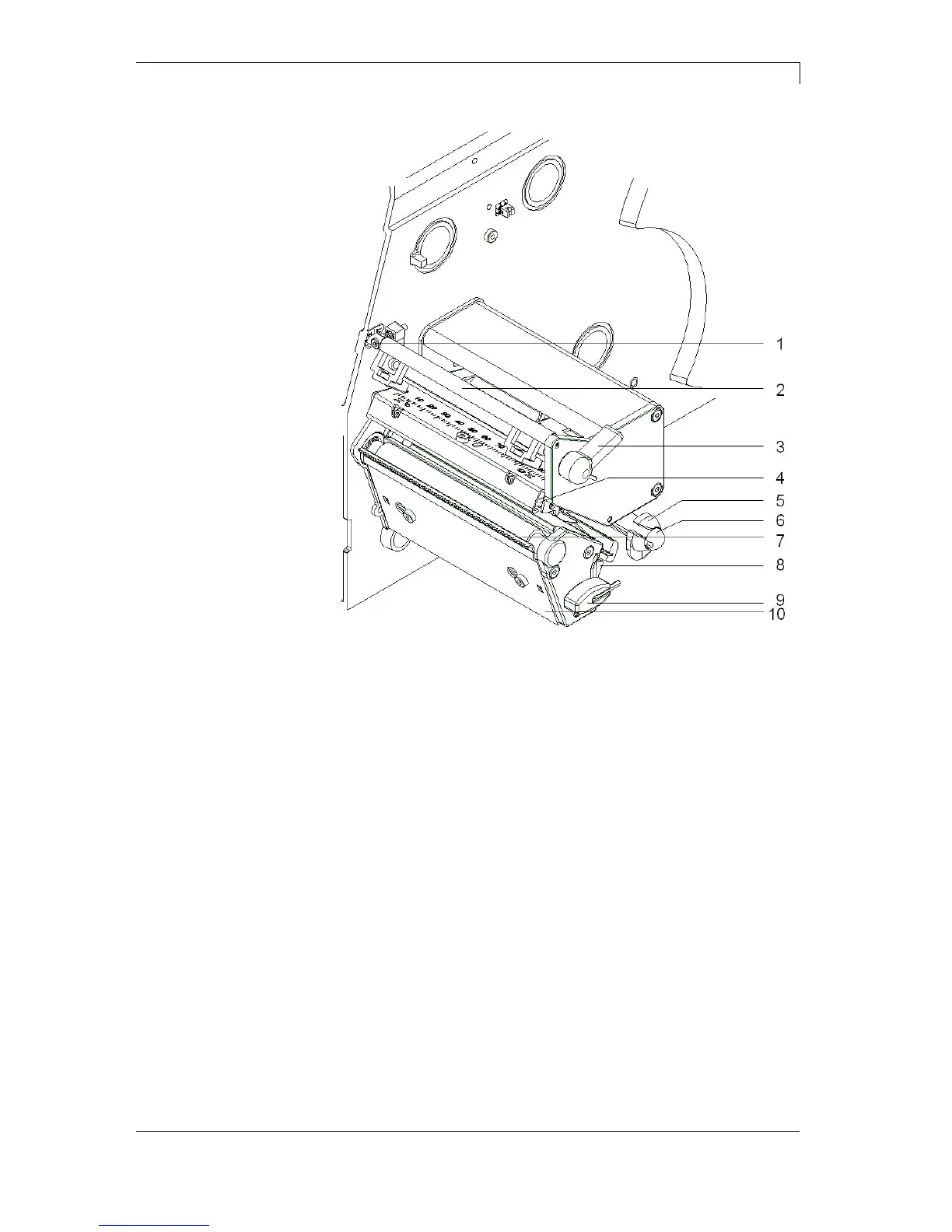

Figure 2
01 = Adjusting screw for transfer ribbon regulating shaft
02 = Transfer ribbon for regulating shaft
03 = Printhead lock
04 = Printhead
05 = Label material guiding
06 = Return pulley
07 = Printer roller
08 = Label photocell handhold
09 = Allan key
10 = Tear-off edge
Print mechanics
