Chapter 4. PANO Image Optimization

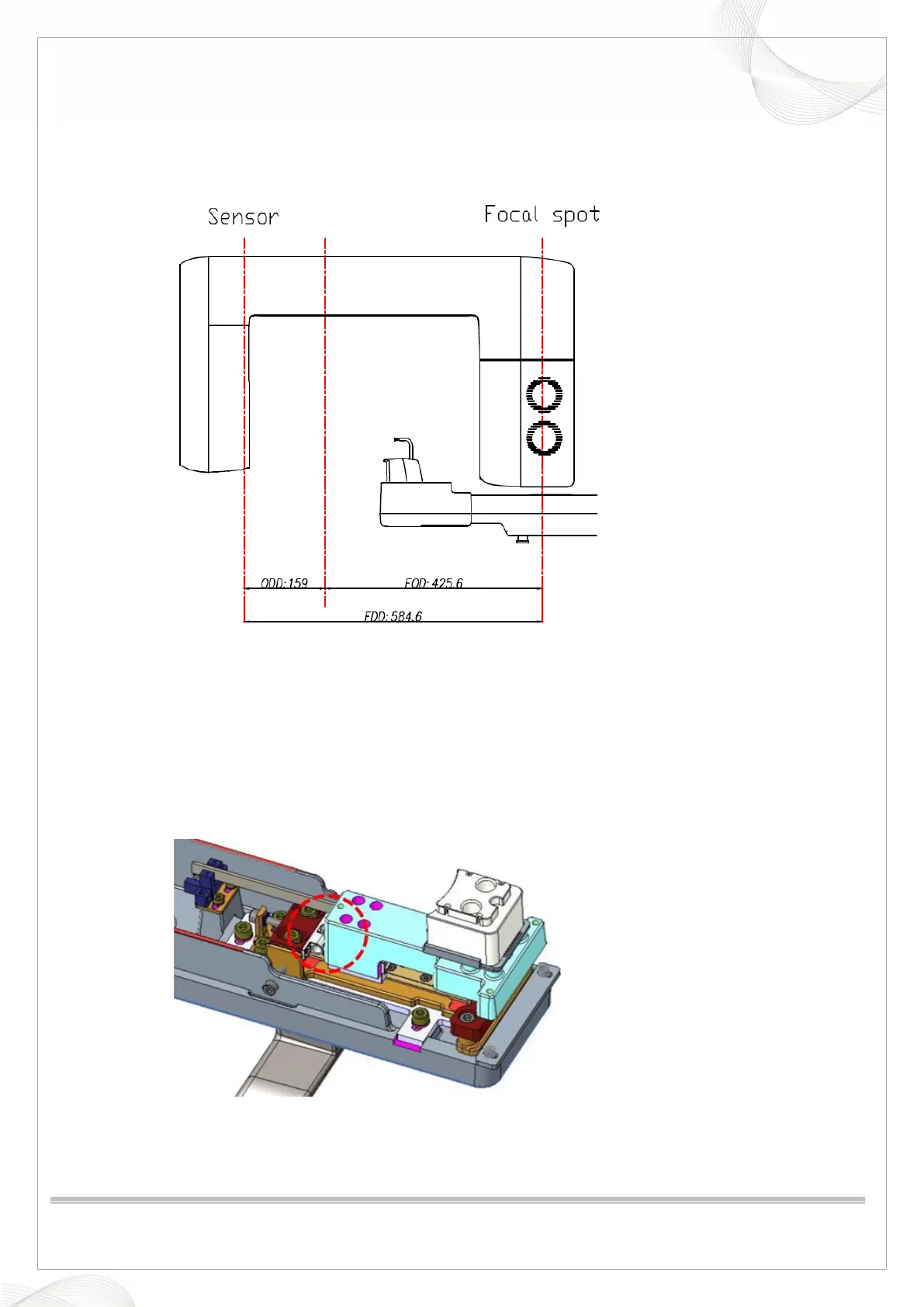

1. Geometry information
<PANO>
• FDD: Distance from the X-ray source to the sensor (584.6 mm)
• FOD: Distance from the X-ray source to the center of rotation (425.6 mm)
2. Equipment default values
2.1. Bite location (PANO mode)
1. Move the bite position according to the Modality as shown in the image above.
2. PANO Mode: The position combined with the stopper in the direction (Left side) of the column
