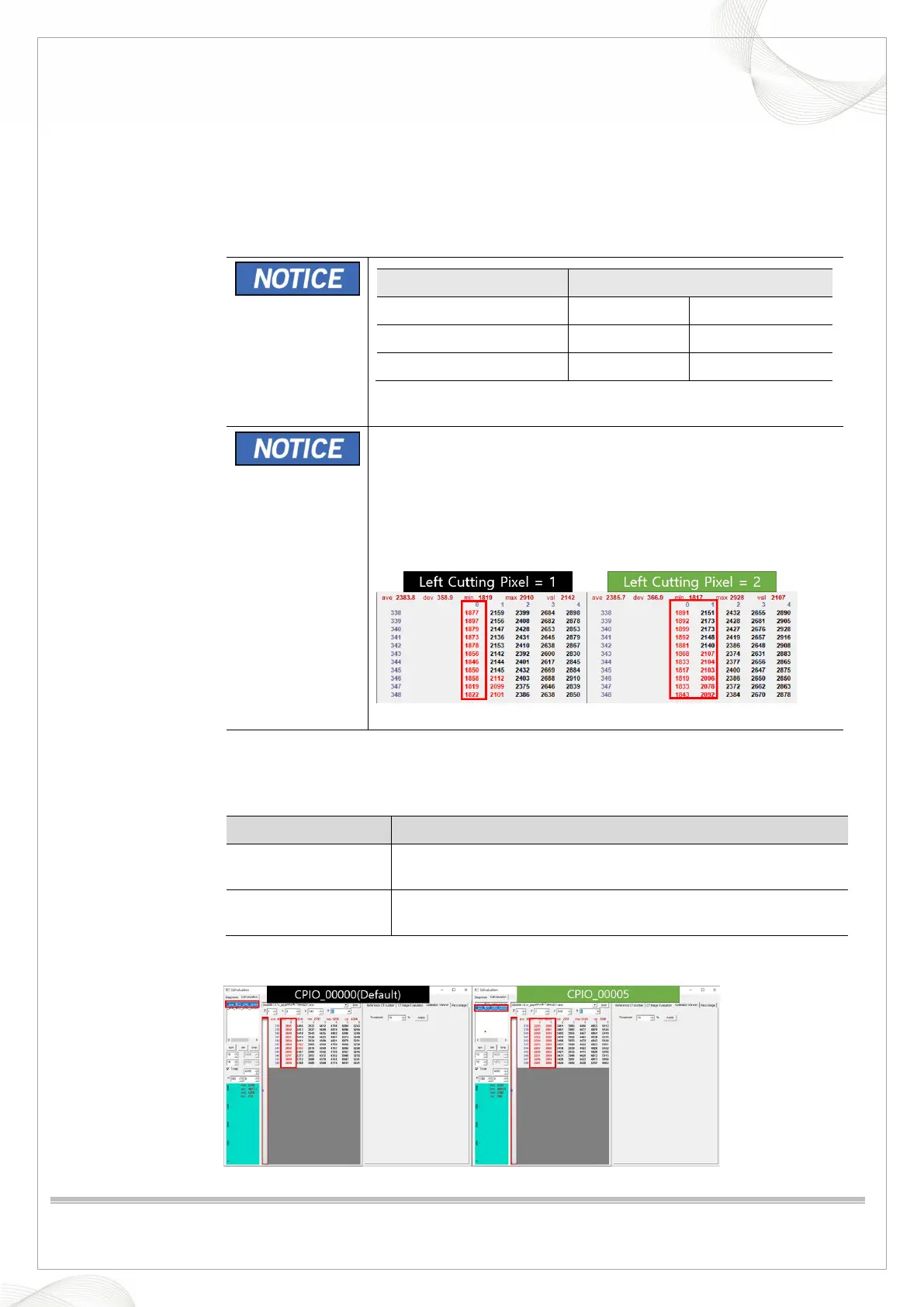

Step 1. Check if the left cutting pixel at the middle position is 2 pixels.
Apply Threshold 70% and check whether the number of pixels cut based on the left of the
average projection at the middle position is 2 pixels.
(Left Cutting Pixel of Average Projection at Middle Position = Collimator Align Left Cutting
Pixel)
Projection position Projection range
Beginning 87 387
Middle 1524 1624
End 2820 3120
▲ Average projection calculation range according to Projection
position
The standard of the number of cutting pixels is
measured as
follows.
1. Go to x=0, y= 343 at the middle position of projection.
2. If more than half of the cutting area (indicated in red) appears in
each x value, it is 1 pixel. If not, it is 0 pixel.
3. For example, in the picture on the right below, 6 cutting areas
are displayed in red at x=1, so a total of 2 pixels are cutting areas.
▲ Cutting Pixel calculation
If the left cutting pixel at the middle position does not satisfy the 2 pixels, perform the
following operation.
* Send the [SPM_CPIO_0XXXX] command to move the collimator so that it is located at
the recommended standard.
Command Function
[SPM_CPIO_0XXXX]
When the value increases, the number of Projection Left Cutting
Pixels increases.
[SPM_CPIO_1XXXX] When the value increases, the number of Projection Left Cutting
Pixels decreases.
*. It moves by 1 pixel for every 5 CPIO values.
( [SPM_CPIO_00000] = Default value)
▲ The trend of Left Cutting Pixel according to CPIO value
