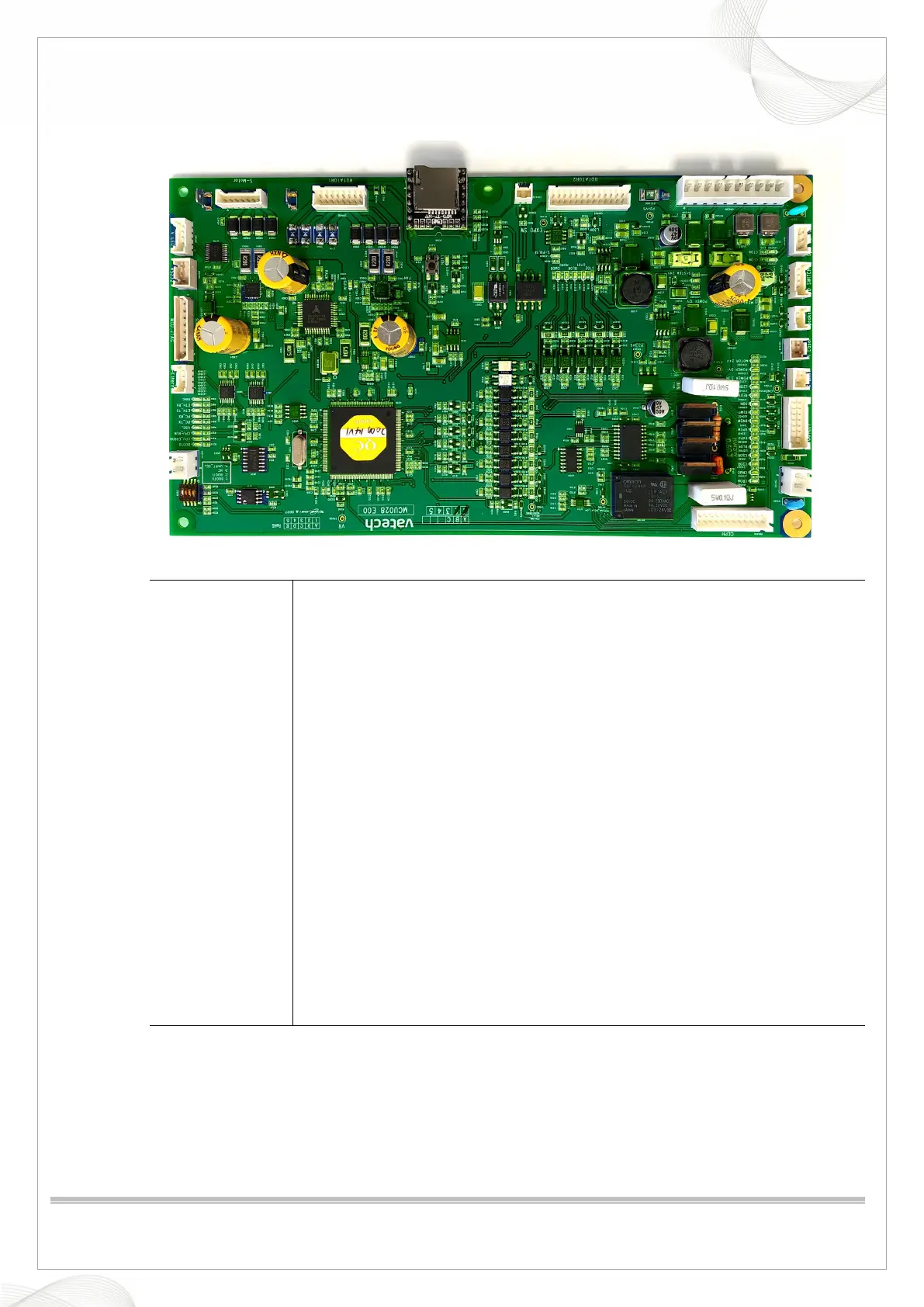

2.1.2. Main MCU BOARD (MCU028)
Function • LAN communication to PC
• CAN communication to Sensor, Inverter, Key Pad
• Motor control
- Rotator 1 axis
- Generator Tilting
- Column Up/Down
-
Collimator Moving
-
Sensor Moving
-
CEPH Sensor Moving
• Fan control
• Sensor Power On/ Off control
• Laser On/Off control
• X-Ray control
• X-Ray Warning Lamp control
• Exposure Switch detection
• MP3 control
• Sync Pulse Generation when exposing the X-ray
• Lighting LED control
