Vatech A9

Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
36 / 214
COPYRIGHT© 2020 VATECH.
ALL RIGHTS RESERVED

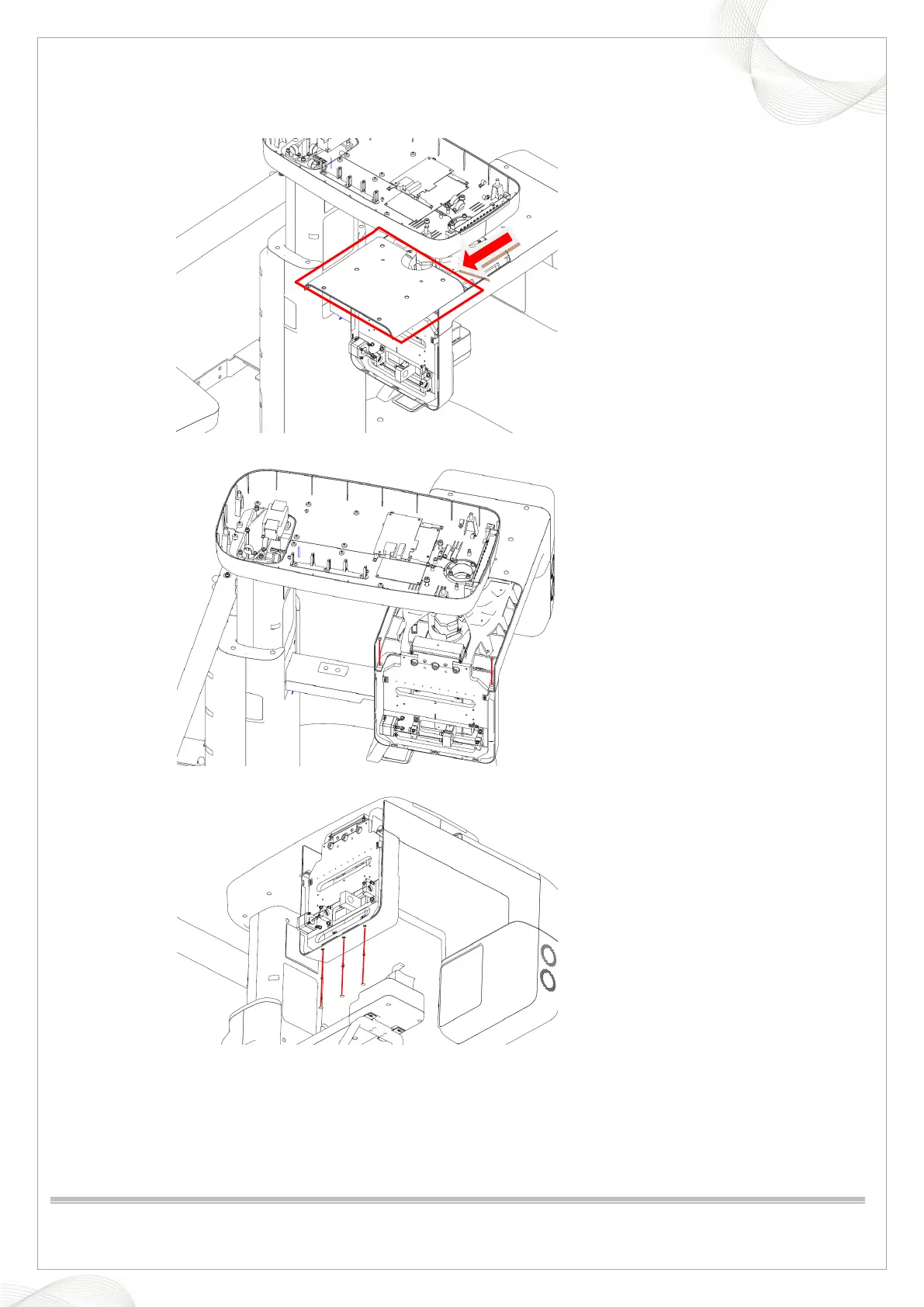

4. Remove the cover from the top of the rotator.
5. Loosen the two bolts as shown in the image below.
6. Remove three bolt caps and loosen three bolts as shown in the image below.
