10. Click the height of the chinrest block in the recorded PROJ file.
Chinrest block standard: 10~ 20 pixels (1.98 ~ 3.96 mm)
: Y value = 665~675
※ If the Chinrest block is measured higher than 20 pixels, replace it with thin sheet metal.
If the chinrest block is lower than 10 pixels, it is replaced with thick sheet metal.

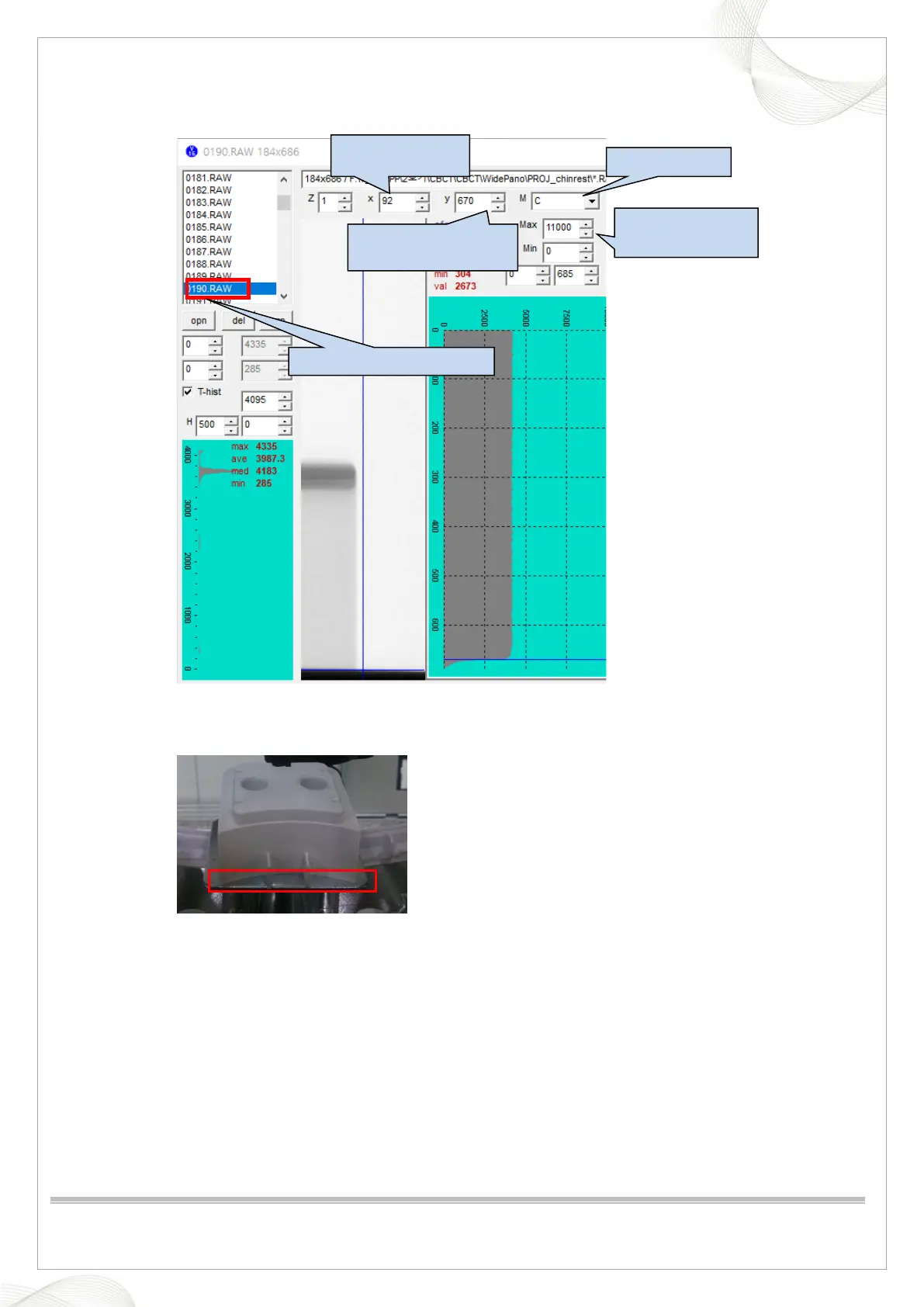

1. Choose the 0190.RAW file
3. M: Choose C
4. Max : 11000
Min : 0
Check the Y position
(Standard: 665 ~ 675)
2. X: Choose 92
