4.2 Image Acquisition Overview
① Turn on the computer.
② Run the EasyDent.
③ Configure the required X-ray parameters (exposure time, etc.) for the X-ray generator.
④ Before use the sensor, shooting the X-ray with putting the coin on flat receptor of the
sensor is recommend as an operation test.
⑤ Position the EzSensor HD(
IOS-U20IF, IOS-U15IF, IOS-U10IF)
at the appropriate area in
the mouth. The flat receptor side of the sensor must face the X-ray source. Note that
the receptor side is marked with a label for ease of recognition.
The use of the sensor positioning aid is recommended to guarantee that the sensor is
parallel to the tooth and is at the appropriate angle for exposure
⑥ The use of the parallel technique with a positioning system or device, if possible, is
highly recommended.
⑦ After preparing the sensor for exposure, acquire an image by pressing the exposure
button of your X-ray source.

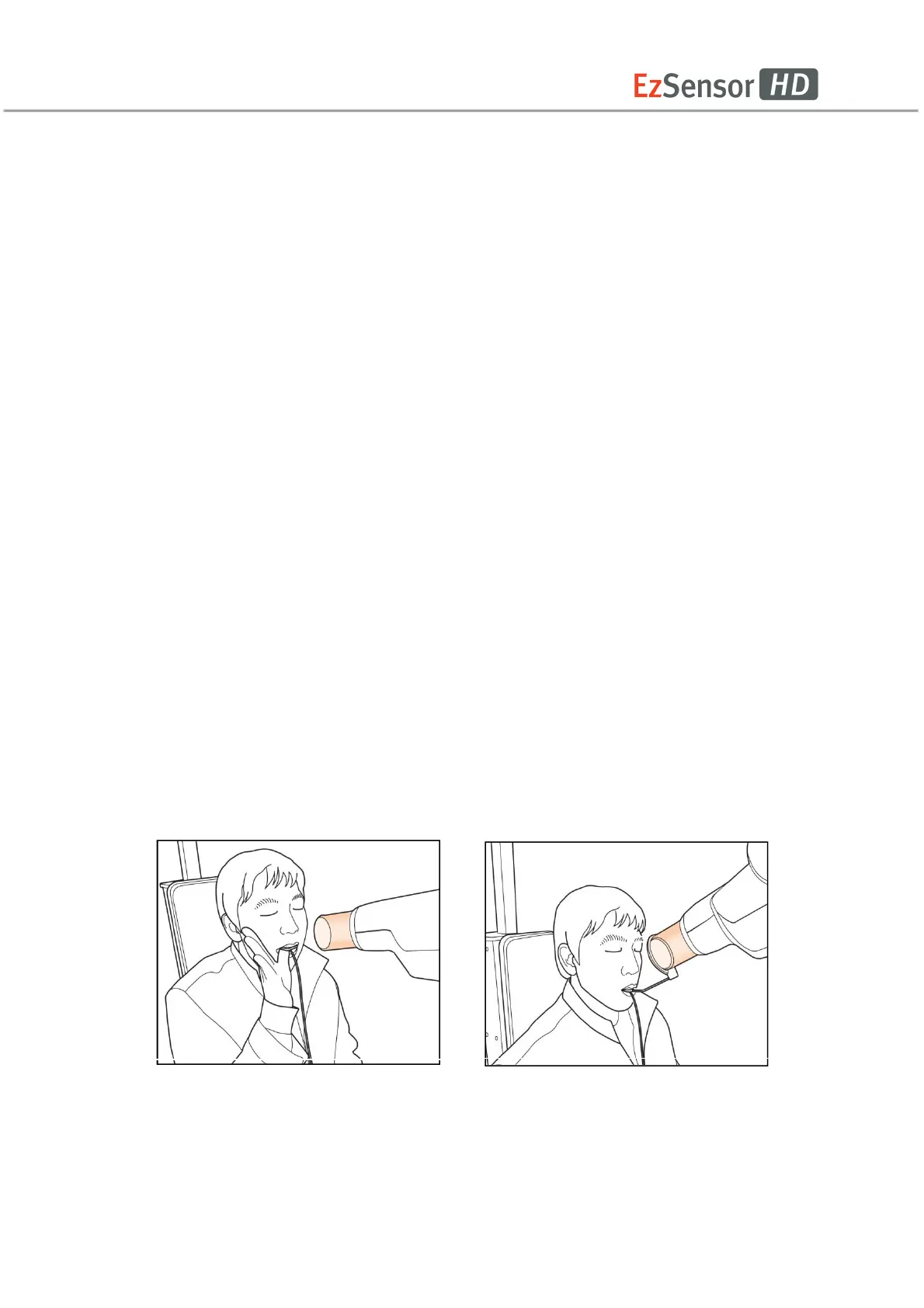

Using the EzSensor HD
with intraoral X-ray
Using the EzSensor HD
with a Sensor positioning system(optional)
