PaX-Primo
34

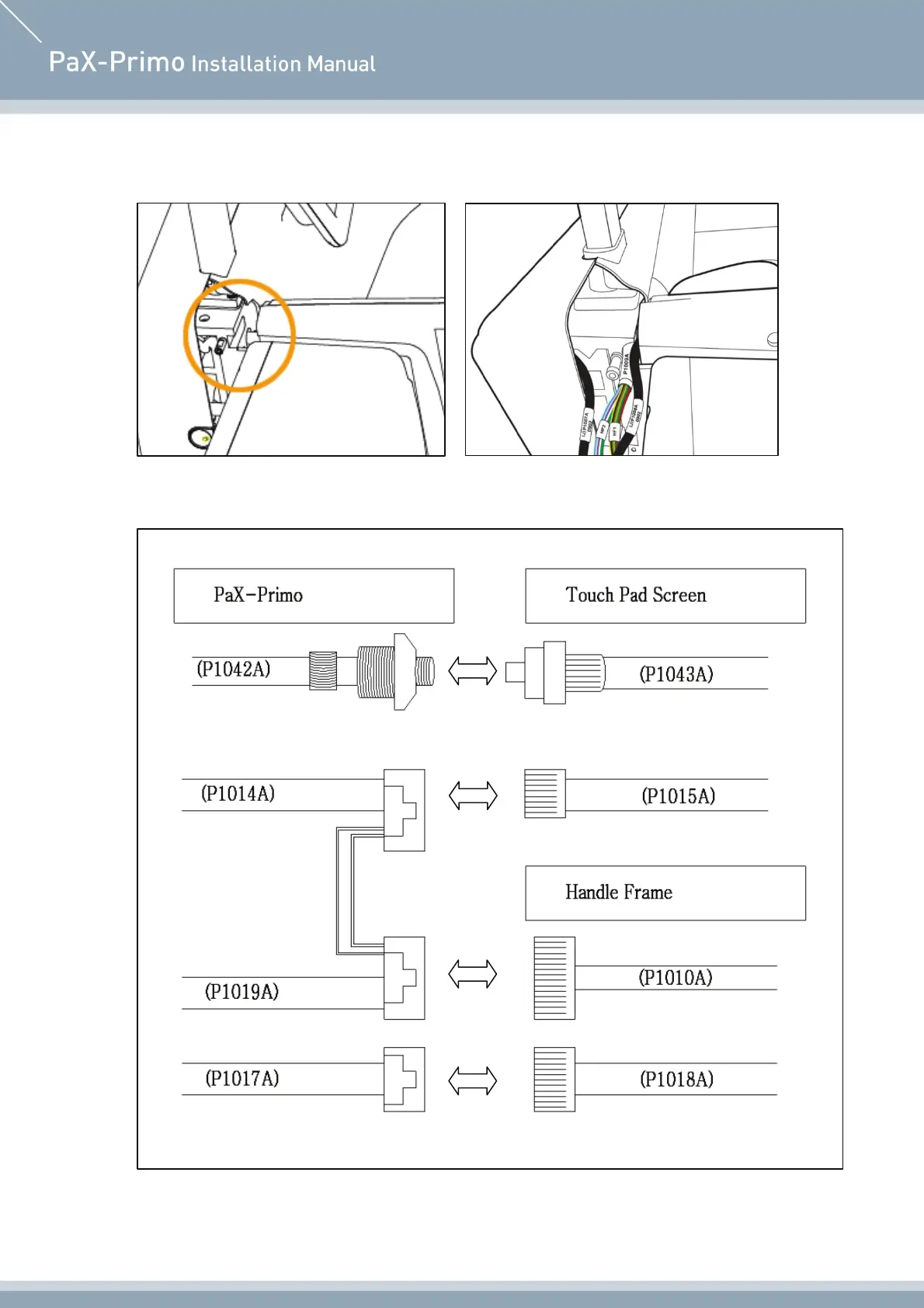

22. Please arrange the wires from hand frame, P1010A and P1018A, through the notch on the Column
frame, as shown below.
How to connect the cables?
