Installation
manual
35

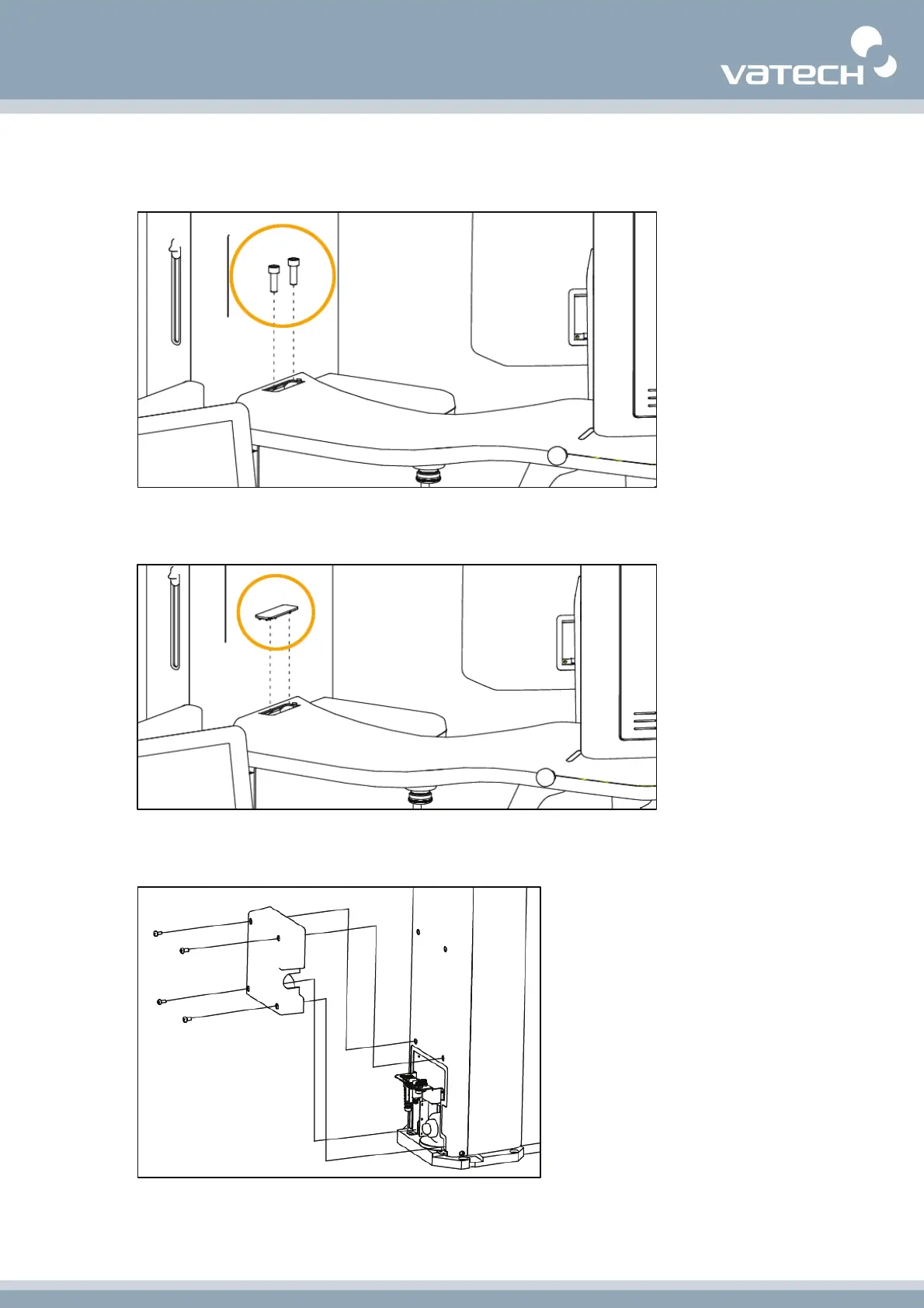

23.
Please make sure that the hand frame is completely in place and screw both together
, using M8*20
wrench bolts (Acc. No. 25x
2).
24.
Please fit the open slot with the cover supplied (Acc. No. 16).
25.
Please fit the rear case for column in place and screw it using M4*8 truss bolt
s. (Acc No.28x4)
36
38
Table of Contents
Default Chapter
3
Table of Contents
3
Caution for System Installation
4
Guide Lines for Protection against Radiation
5
Recommended Minimum Space
5
Width of Door
5
Product Features
7
X-Ray Room Space for System Installation
5
Chapter 1. Introduction
7
The Product Appearance and Description: Wall-Mounted Type
9
Exposure Switch
10
Replacement Parts and Positioning Accessories
11
Pax-Primo’s General Specification
12
X-Ray Generator
13
X-Ray Tube(Toshiba D-051)
13
Collimator
13
Environmental Characteristics
14
Dimension of the Unit
15
Focal Spot Distance
16
X-Ray Generator Technical Specifications
17
X-Ray Tube Specification
17
Anode Thermal Characteristics
17
High Voltage Generator
18
X-Ray Generation Controller
18
Beam Limiter
18
System Characteristics
19
Mechanical Characteristics
19
Electrical Characteristics
19
Environmental Characteristics
19
Checking Packing List
20
Location of the Parts and Assembly Units Supplied
20
Chapter 2. Preparing for Installation
20
Parts List
21
Tools Required
22
Parts Lists for the Touch Pad Screen Wall Mounted Type
22
Parts Lists for the Pax-Primo Wall Mounted Type
22
Standard Accessories
23
Check Shock Watch and Tilt Watch
23
Assembling the Wall Mount
24
Chapter 3. Installing the Equipment
24
Assembling the Base (Optional)
39
Installing the Touch Pad Screen on the Wall (Optional)
42
Installing Exposure Switch Holder
48
Exiting Packing Mode and Finishing Installation
53
Chapter 4. Installing and Removing Imaging Software
54
To Reinstall the Programs
61
Configuring the Network Environments
66
To Remove the Frame Grabber Driver from the PC
67
