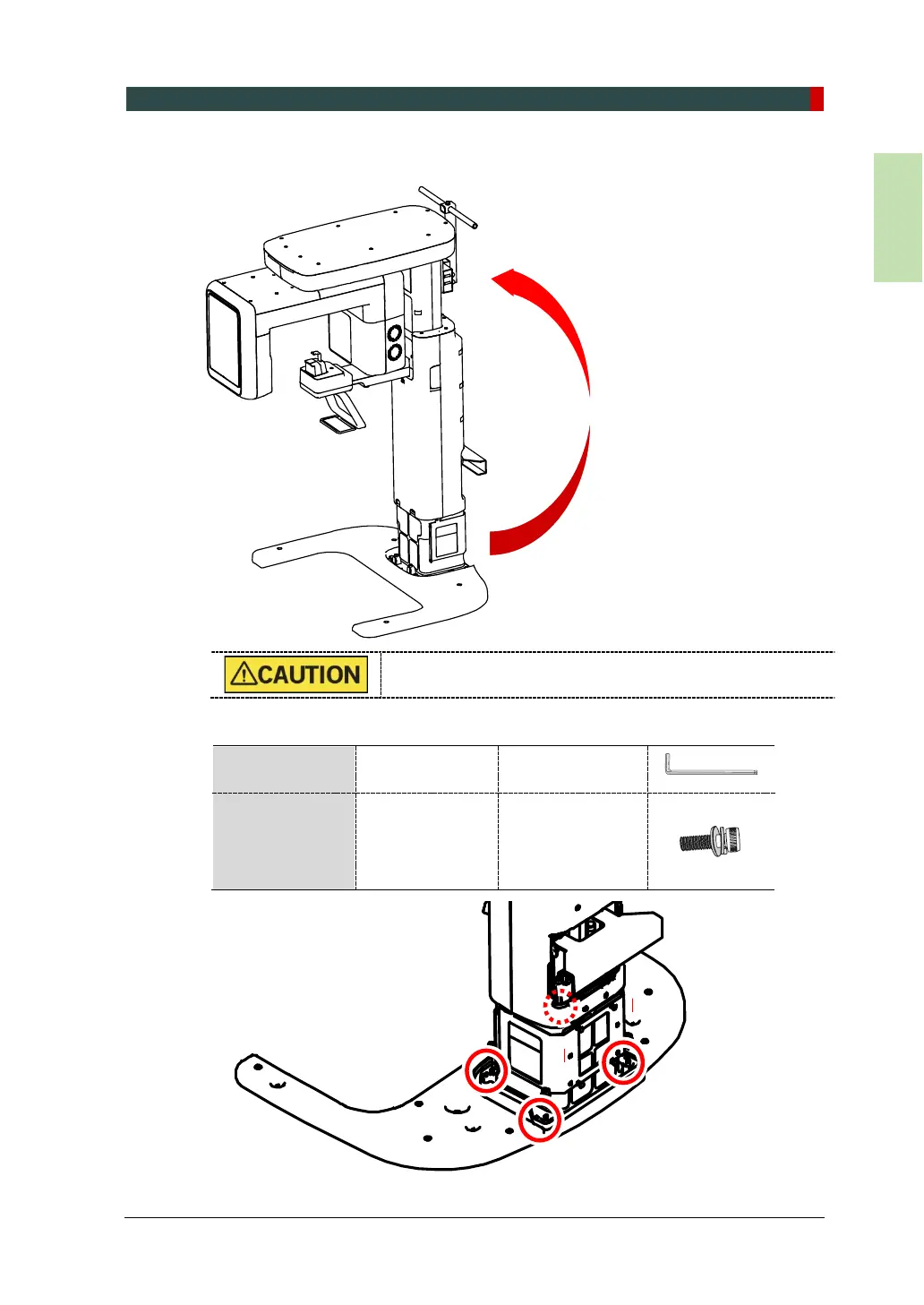

4. Installing the Equipment: Base Stand (Optional)
vatech A9 (Model: PHT-30CSS) Installation Manual 45
5. Lift the equipment slowly using the upper carrying handle.
Keep the cables away when erecting the equipment.
6. Insert a Wrench Bolt into each hole at four corners of the Column Unit. Tighten
them with an Allen Wrench to fix the Column Unit on the Base.
Required Tool Allen Wrench 6 mm / 0.24”
Parts and
Accessory
Wrench Bolt
M10 x 25
w/ Spring and Flat
Washers – 4 pcs
(Part No. 23)
To Next Page
