Vatech PHT-30CSS Installation Manual

4. Installing the Equipment: Base Stand (Optional)
48 vatech A9 (Model:PHT-30CSS) Installation Manual

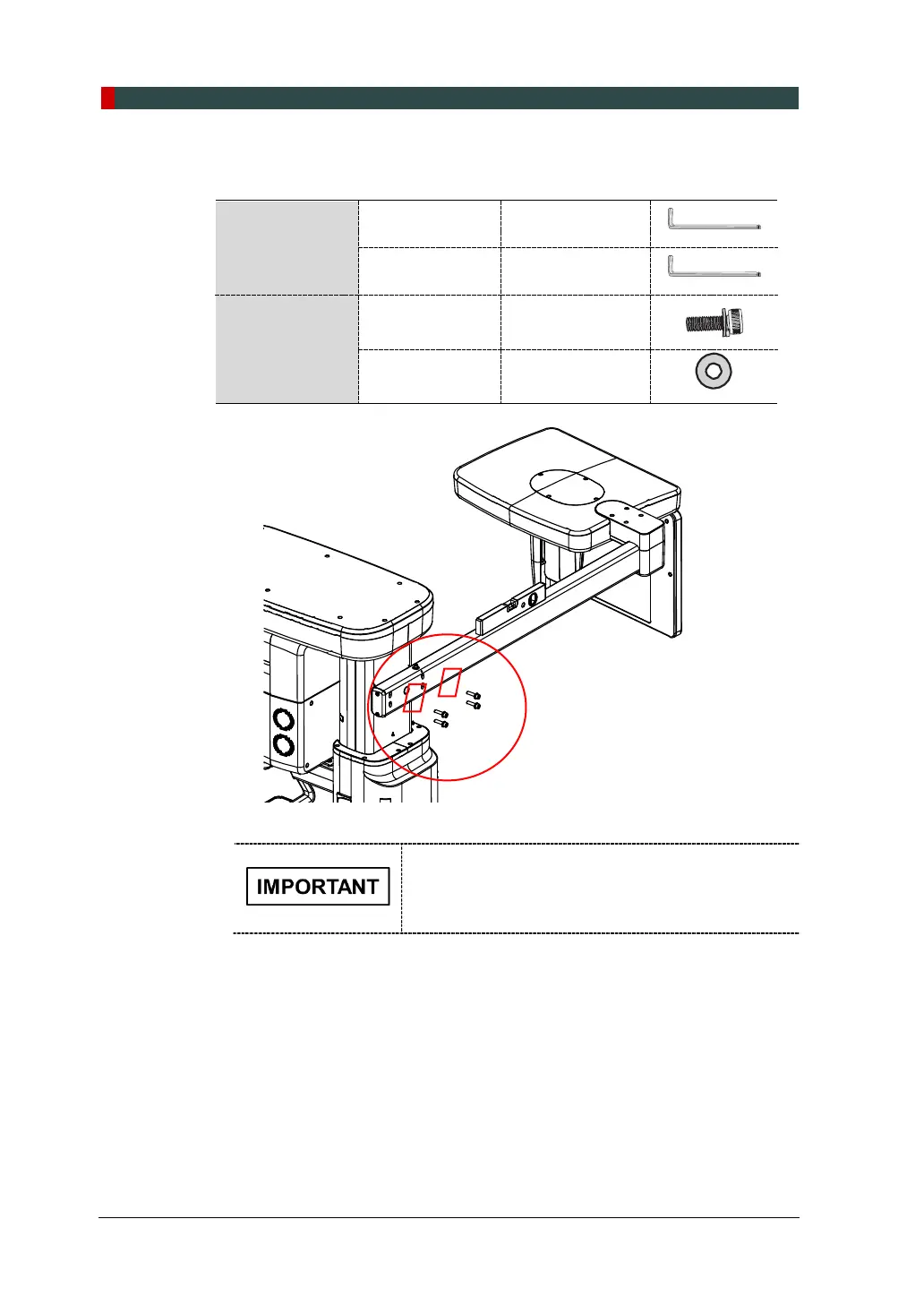

4. Put the four wrench bolts into each hole and tighten with an Allen Wrench to fix
the CEPH arms on the Main Unit.
Required Tool
Allen Wrench 6 mm / 0.24”
Allen Wrench 8 mm / 0.31”
Parts and
Accessory
Wrench Bolt
(w/ C E Washer)
M8 x 35 - 4 pcs
(Part No. 25)
C_E_Washer
4 pcs
(Part No. 25)
(If necessary) Place the Sprit level on the CEPH arm
and adjust the M8 x 20 bolts.
