12. Technical Specifications
123 I
PaX-i3D Smart
English

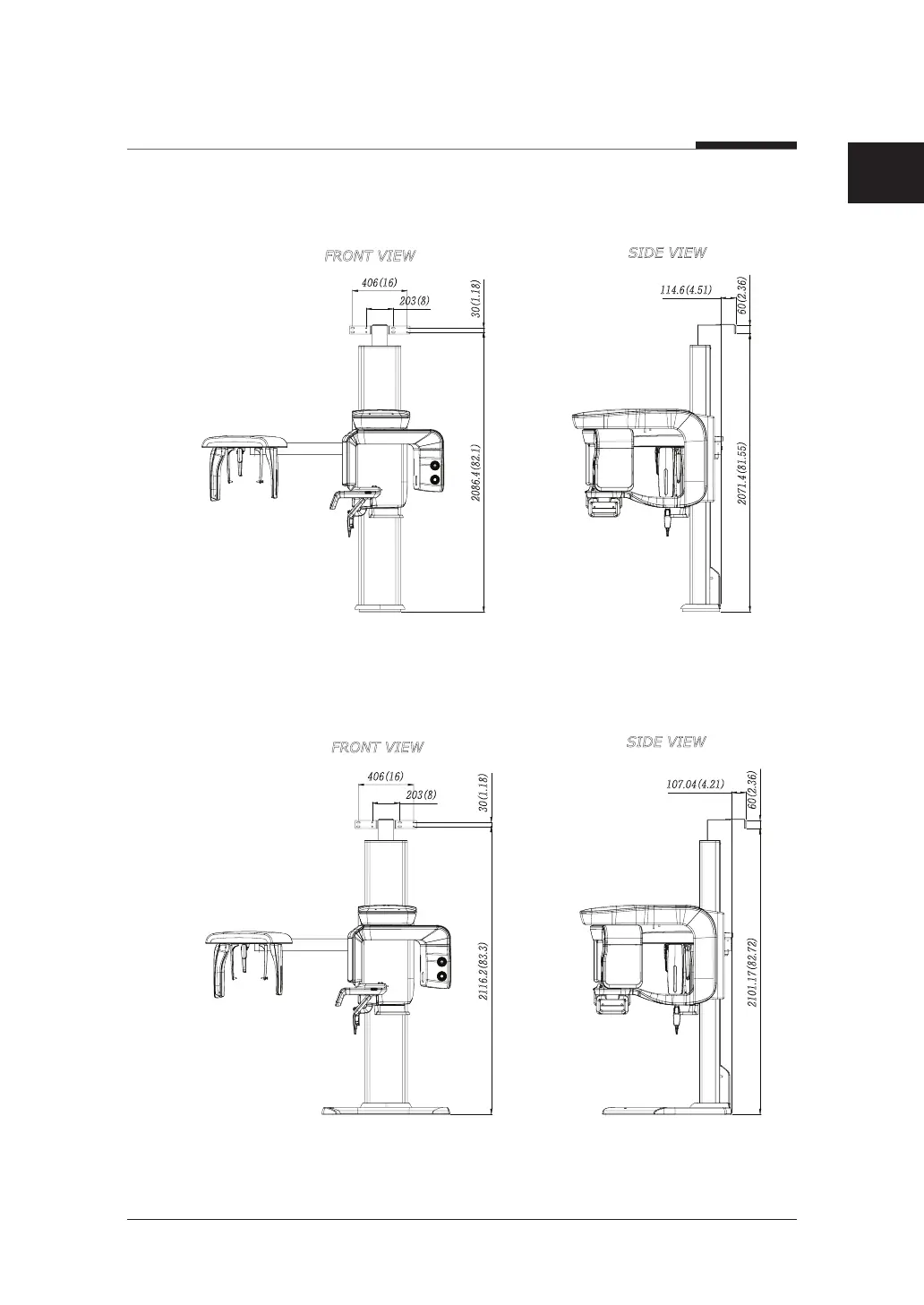

■ Common Dimensions(Non-Base type)
406(16)
203(8)
2086.4(82.1) 30(1.18)
2071.4(81.55) 60(2.36)
114.6(4.51)
FRONT VIEW
SIDE VIEW
■ Common Dimensions(Base type)
406(16)
203(8)
2116.2(83.3) 30(1.18)
2101.17(82.72) 60(2.36)
107.04(4.21)
FRONT VIEW
SIDE VIEW
[mm(inch)]
[mm(inch)]
