PLRF25C-1.2en Getting started
17
Getting started

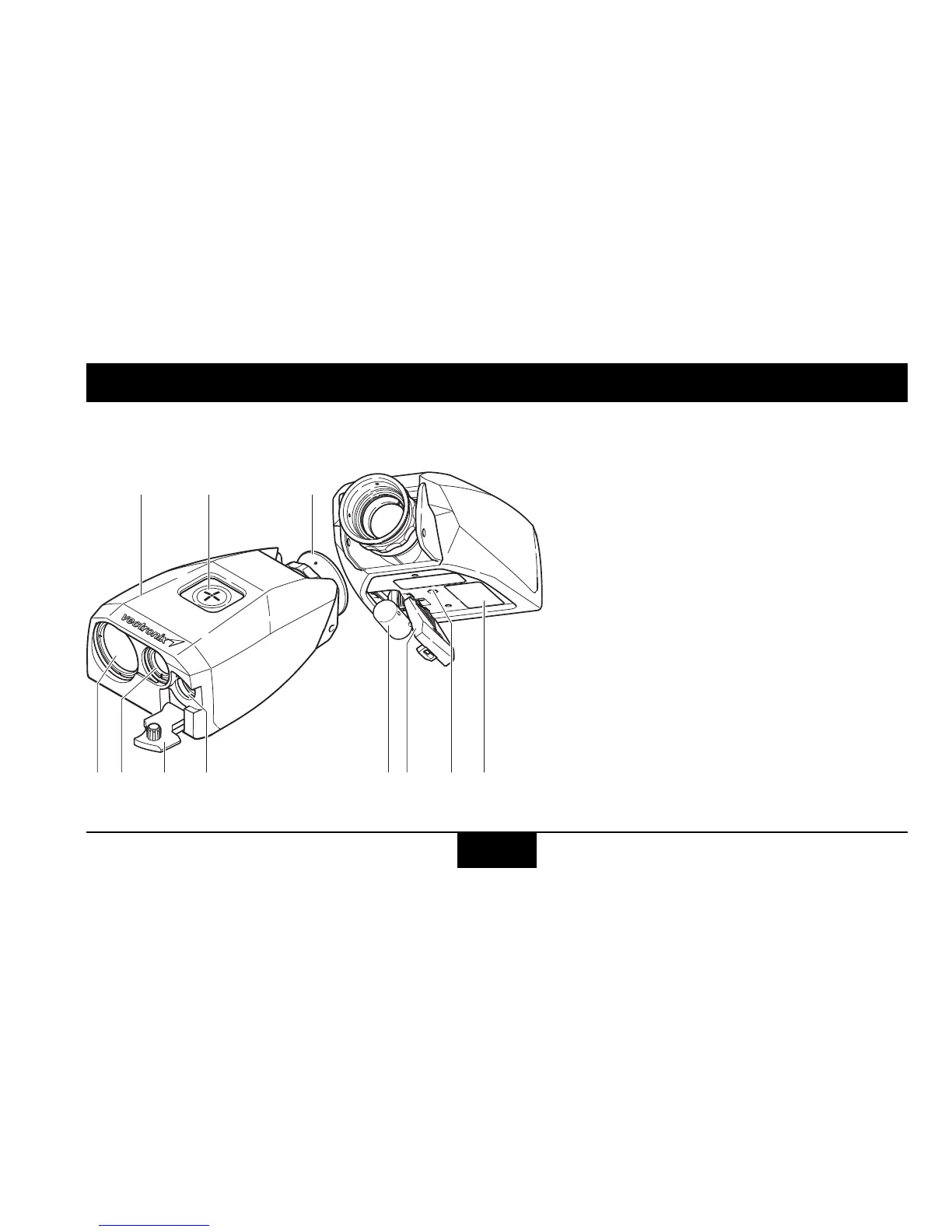

Instrument Overview
a) Rubber Cover
b) Push Button
c) Eyecup
d) Objective – Day Optics
e) Objective – Transmitter
f) Interface Protection Cap
g) Interface Connector
(5-Pin LEMO)
h) Battery, CR123A
i) Battery Case Cover
j) Tripod Mount
(1/4 inch)
k) Type label (Name, Part
Number, Serial Number)
a
de f h jikg
bc
