Veeco Digital Instruments Dimension 3100 - 10.3.9 Set Initial Scan Parameters

Tapping Mode AFM
Rev. C Dimension 3100 Manual 10-177
Basic Tapping Mode AFM Operation continued...
Other Controls Panel

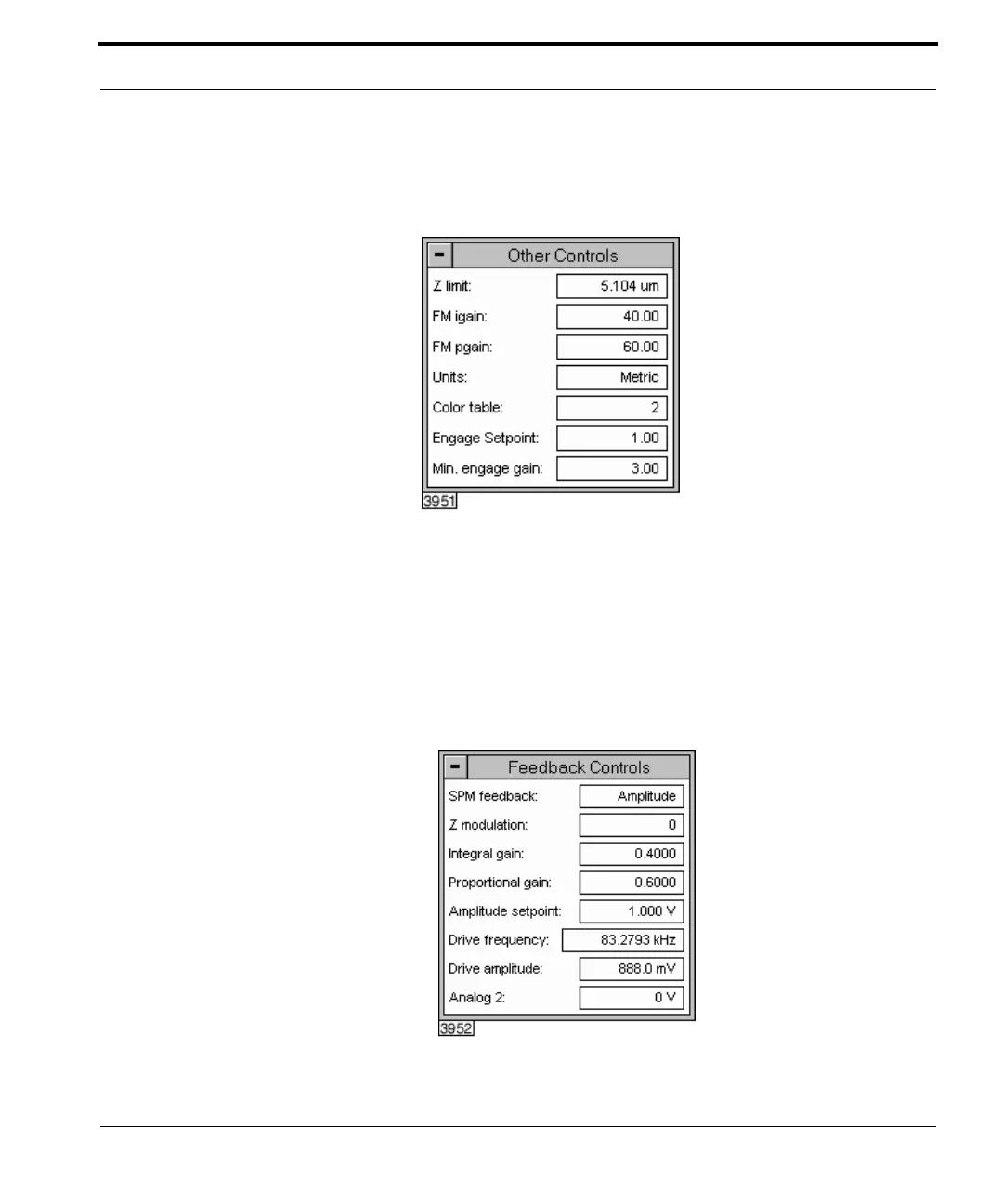

Figure 10.3f Suggested Other Controls Settings
Feedback Controls Panel
1. Set the Integral gain to 0.5 and the Proportional gain to 0.7 (See
Figure 10.3g).
2. Set the Look Ahead gain to zero.
Figure 10.3g Suggested Feedback Controls Settings
