Veeder-Root Red Jacket Maxxum Big-Flo Quick-Set Series - Floating Suction Installation

Installation Floating Suction Installation Information
19
Floating Suction Installation Information

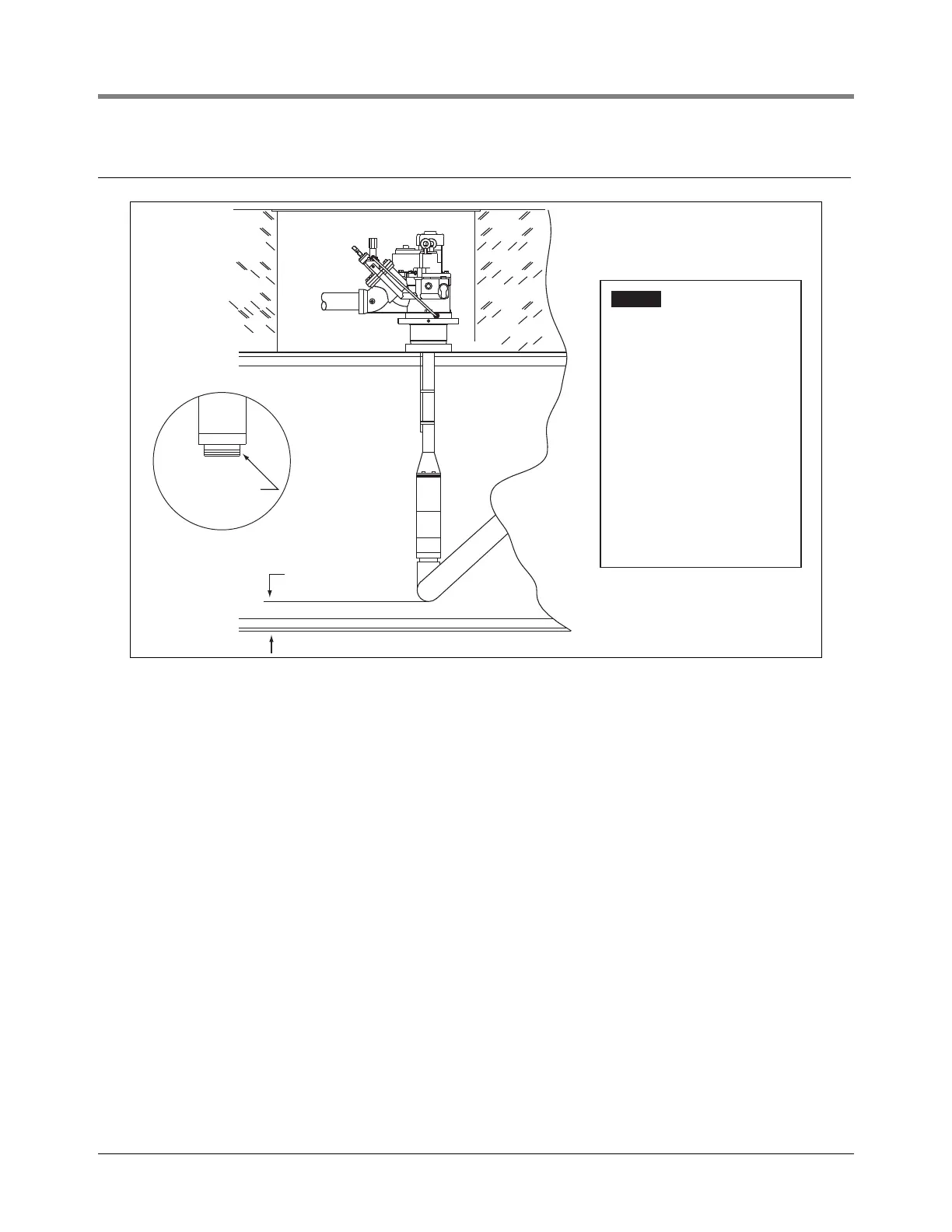

Figure 9.
rj/051-301-11.eps
4.0" Approx.
3" NPT male
thread
Pump
Veeder-Root only supplies
the adapter.
Red Jacket pumps are
centrifugal type and as
such are not designed to
pump product when level
is below the bottom of the
pump.
Before installing pipe
threads apply an adequate
amount of fresh, UL
classified for petroleum,
non-setting thread sealant.
1.
2.
3.
NOTICE
