Service and Repair Installing the Extracta Assembly (Ref. Figure 19)
32

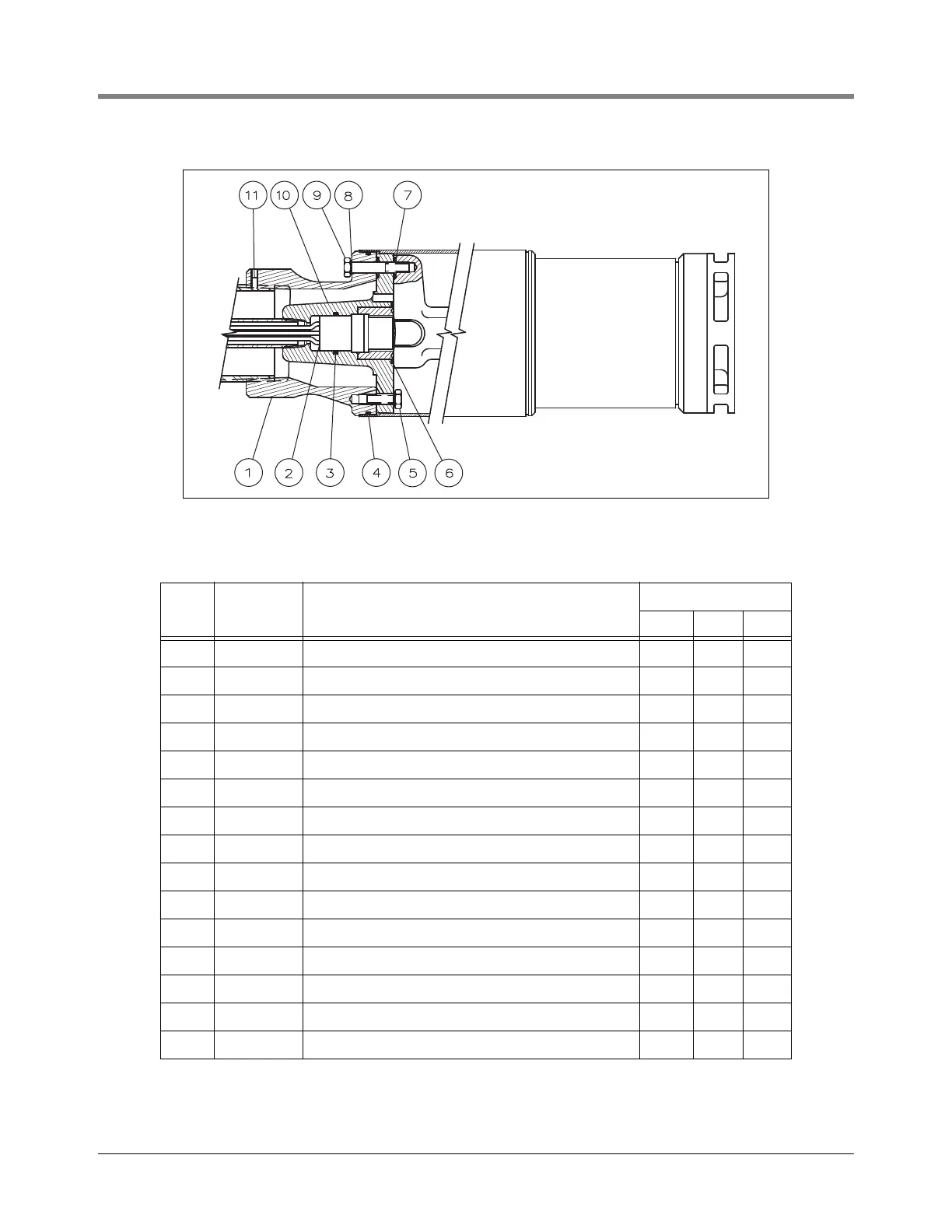

Figure 20. UMP - Discharge Head Assembly
Only the parts listed above are available for repairs of the lower end of the pump. If any other parts need replacing,
order Red Jacket pump-motor assemblies. See page 33 for ordering numbers.
Table F.
Item Part No. Description
Number Required
2 HP 3 HP 5 HP
1 036-043-3 Head - Motor Discharge 1 1 1
2 213-065-5 Pigtail & Conduit Seal - 2, 3, HP 1 1 --
2 213-069-5 Pigtail & Conduit Seal - 5 HP -- -- 1
3 072-712-1 Pigtail O-ring 1 1 1
4 072-714-1 Motor Shell O-ring 1 1 1
5 026-179-1 Bolt - 3/8-16 x 1 Hex 1 1 1
6 072-309-1 Receptacle Housing O-ring 1 1 1
7 031-328-1 Gasket Bolt 8 8 8
8 026-110-1 Lockwasher 3/8” Spring 4 4 4
9 579025-004 Bolt - 3/8-16 x 2-3/16 Hex-Gr. 5 4 4 4
10 038-241-1 Housing Pigtail 1 1 1
11 026-448-1 Set Screw Fastener - 1/4” 2 2 2
NS 001-157-3 Floating Suction Adaptor - HB -- 1 --
NS 001-026-3 Floating Suction Adaptor - K -- -- 1
NS 001-158-3 Floating Suction Adaptor - MB 1 -- --
rj/051-301-22.eps
