Parts 6” Maxxum Big Flo - Repair Parts Packer Manifold Assembly Parts - Side View
37

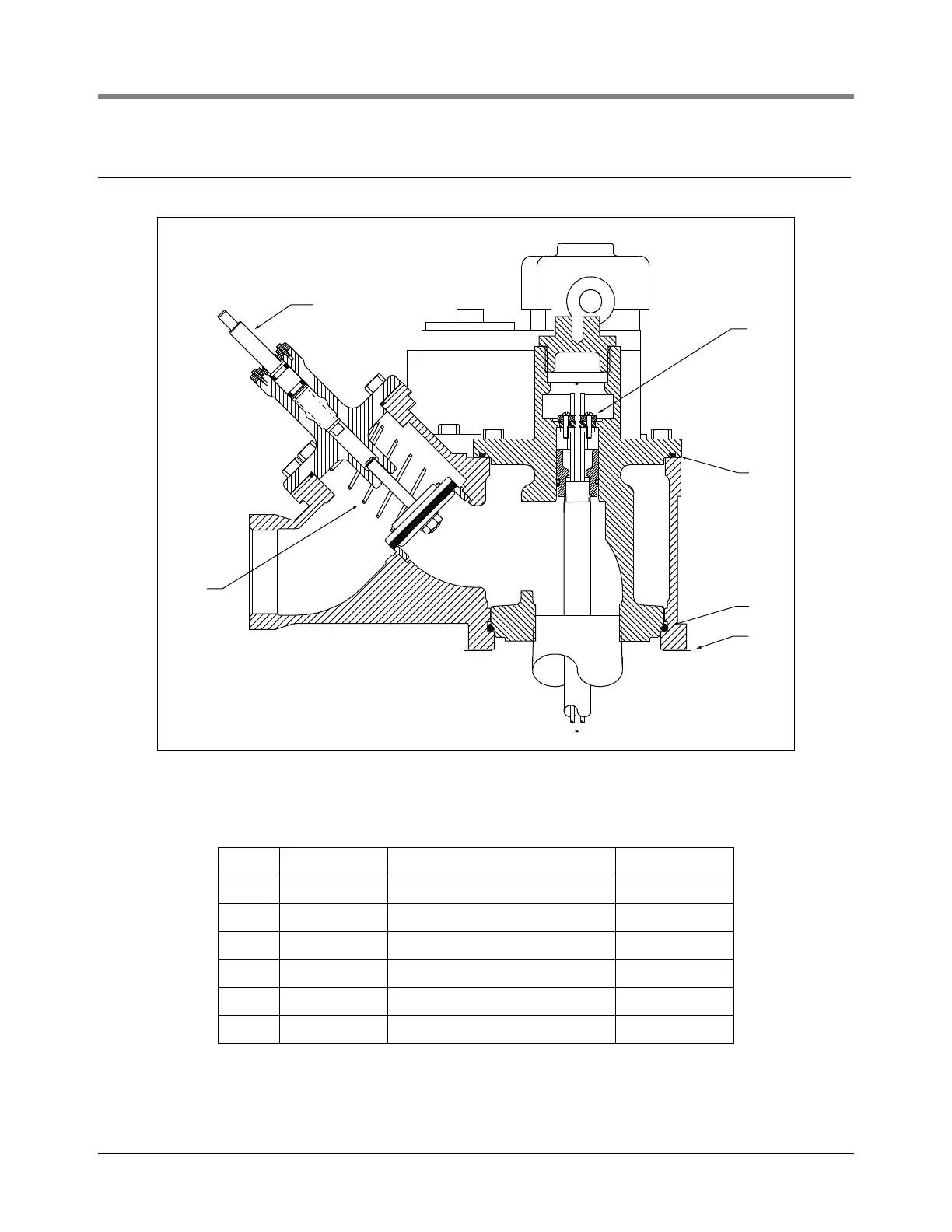

6” Maxxum Big Flo - Repair Parts Packer Manifold Assembly Parts - Side View
Figure 24. Check Valve And Electrical Bushing Assembly
Table H.
Item Part No. Description Qty.
1 144-320-5 Kit - Lock Down Screw 1
2 144-317-5 Kit - Check Valve 1
3 072-695-1 O-Ring (-366) 1
4 072-696-1 O-Ring (-439) 1
5 031-334-1 Gasket Flange 1
6 144-321-5 Kit - 5 Wire Bushing 1
rj/051-301-26.eps
1
2
6
3
4
5
